Adjustable Pedals Switch (Except Export) Connector End View
WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

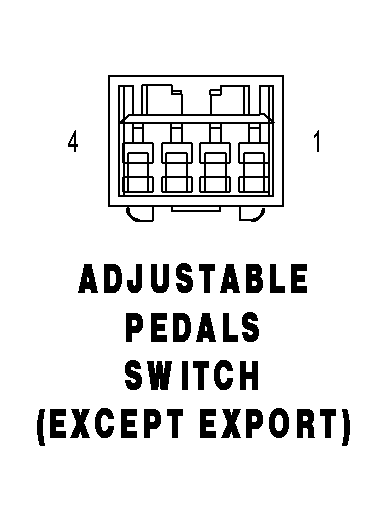

ADJUSTABLE PEDALS SWITCH (EXCEPT EXPORT) - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A128 18RD/OR (EXCEPT MEMORY) |
ADJUSTABLE PEDALS RELAY OUTPUT |
| 1 |
A114 18GY/RD (MEMORY) |
FUSED B(+) (I.O.D.) |
| 2 |
Z146 18BK/YL |
GROUND |
| 3 |
Q102 18OR/LB |
ADJUSTABLE PEDALS SWITCH REARWARD |
| 4 |
Q103 18OR/LG |
ADJUSTABLE PEDALS SWITCH FORWARD |
