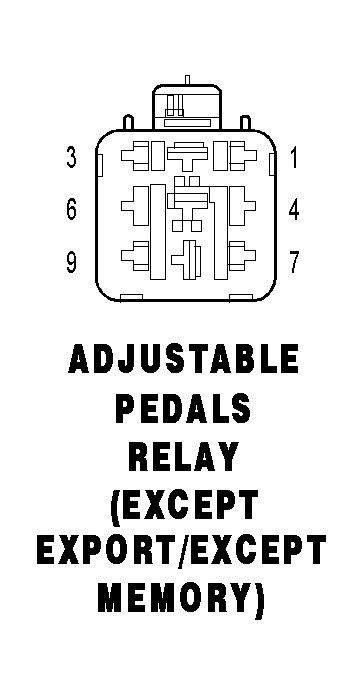

Adjustable Pedals Relay (Except Export/Except Memory) Connector End View
WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
ADJUSTABLE PEDALS RELAY (EXCEPT EXPORT/EXCEPT MEMORY) - 9 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
A108 18LG/RD |
FUSED B(+) |
| 5 |
A128 18RD/OR |
ADJUSTABLE PEDALS RELAY OUTPUT |
| 6 |
P201 20LG/DB |
ADJUSTABLE PEDALS RELAY CONTROL |
| 7 |
- |
- |
| 8 |
A108 18LG/RD |
FUSED B(+) |
| 9 |
- |
- |
