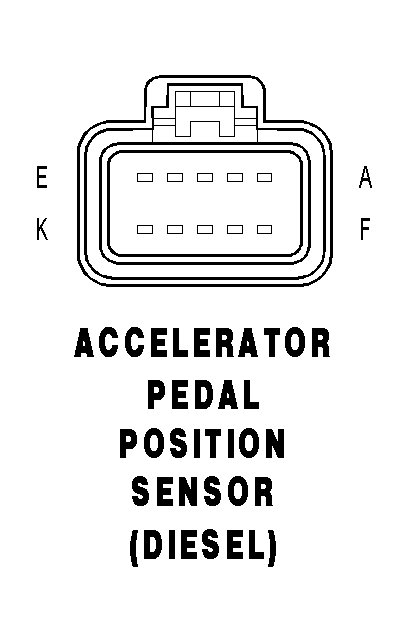

Accelerator Pedal Position Sensor (Diesel) Connector End View
WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
ACCELERATOR PEDAL POSITION SENSOR (DIESEL) - 10 WAY
| CAV | CIRCUIT | FUNCTION |
| A | - | - |
| B | - | - |
| C | - | - |
| D | K4 20BK/LB | SENSOR GROUND |
| E | K151 20WT | LOW IDLE POSITION SWITCH SENSE |
| F | - | - |
| G | K22 20OR/DB | ACCELERATOR PEDAL POSITION SENSOR SIGNAL NO. 1 |
| H | K23 20BR/WT | ACCELERATOR PEDAL POSITION SENSOR SIGNAL NO. 2 |
| J | K900 20DB/DG | SENSOR GROUND |
| K | F852 20VT/PK | ACCELERATOR PEDAL POSITION SENSOR 5 VOLT SUPPLY |
