A/C Heater Control (Manual Temperature Control) Connector End View (C2)
WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

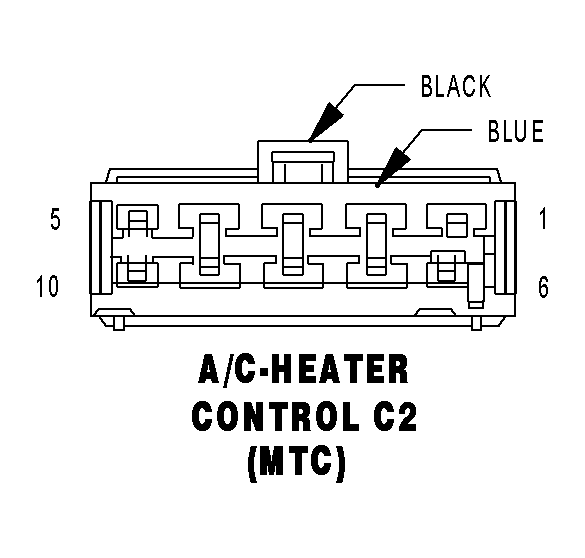

A/C-HEATER CONTROL C2 (MTC) - BLACK/BLUE 10 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | C75 12DB/GY | BLOWER MOTOR HIGH DRIVER |
| 3 | C73 14DB/VT (EXCEPT EXPORT) | BLOWER MOTOR M2 DRIVER |
| 3 | C74 12DB/WT (EXPORT) | BLOWER MOTOR M3 DRIVER |
| 4 | Z134 12BK/LG | GROUND |
| 5 | C71 16DB/BR (EXPORT) | BLOWER MOTOR LOW DRIVER |
| 6 | - | - |
| 7 | - | - |
| 8 | - | - |
| 9 | C72 16DB/OR (EXCEPT EXPORT) | BLOWER MOTOR M1 DRIVER |
| 9 | C73 14DB/VT (EXPORT) | BLOWER MOTOR M2 DRIVER |
| 10 | C71 16DB/BR (EXCEPT EXPORT) | BLOWER MOTOR LOW DRIVER |
| 10 | C72 16DB/OR (EXPORT) | BLOWER MOTOR M1 DRIVER |
