A/C Compressor Clutch Connector End View

WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

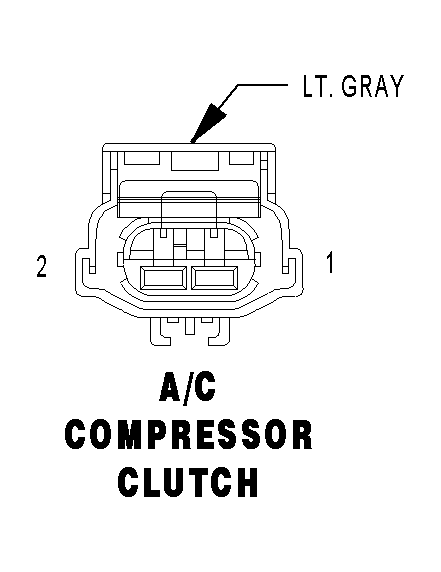

A/C COMPRESSOR CLUTCH - LT. GRAY 2 WAY

GCRS680001Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 C3 20DB/YL (DIESEL) A/C COMPRESSOR CLUTCH RELAY OUTPUT
1 C3 20DB/YL (GAS) A/C CLUTCH RELAY OUTPUT
2 Z153 18BK/GY GROUND
