25A Power Window Circuit Breaker Connector End View

WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

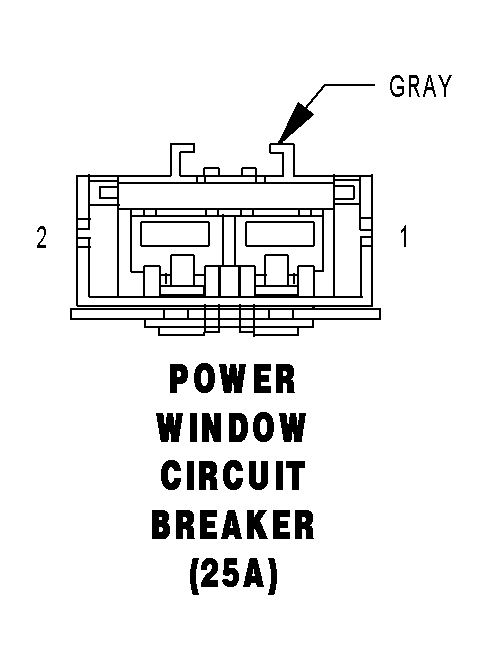

POWER WINDOW CIRCUIT BREAKER (25A) - GRAY 2 WAY

GCRS680361Courtesy of DAIMLERCHRYSLER CORP.
CB NO. AMPS FUSED CIRCUIT FUNCTION
1   F30 12PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
2   F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
