Draining Cooling System

WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Do not remove engine block drain plugs, coolant pressure bottle cap or open the radiator draincock, when the cooling system is hot and under pressure because serious burns from coolant can occur.

When servicing the cooling system, it is essential that coolant does not drip onto the accessory drive belt and/or pulleys. Shield the belt with shop towels before working on the cooling system. If coolant contacts the belt or pulley, flush both with clean water.

Remove coolant bottle pressure cap. See Figure.
Raise vehicle on hoist.
NOTE: For access to radiator draincock, it is necessary to remove the front extension belly pan. (Refer to BODY/EXTERIOR/BELLY PAN - REMOVAL) . See Fig 1.
Open radiator draincock located at the lower left side of radiator. See Figure.
Remove the engine block drain plug(s).

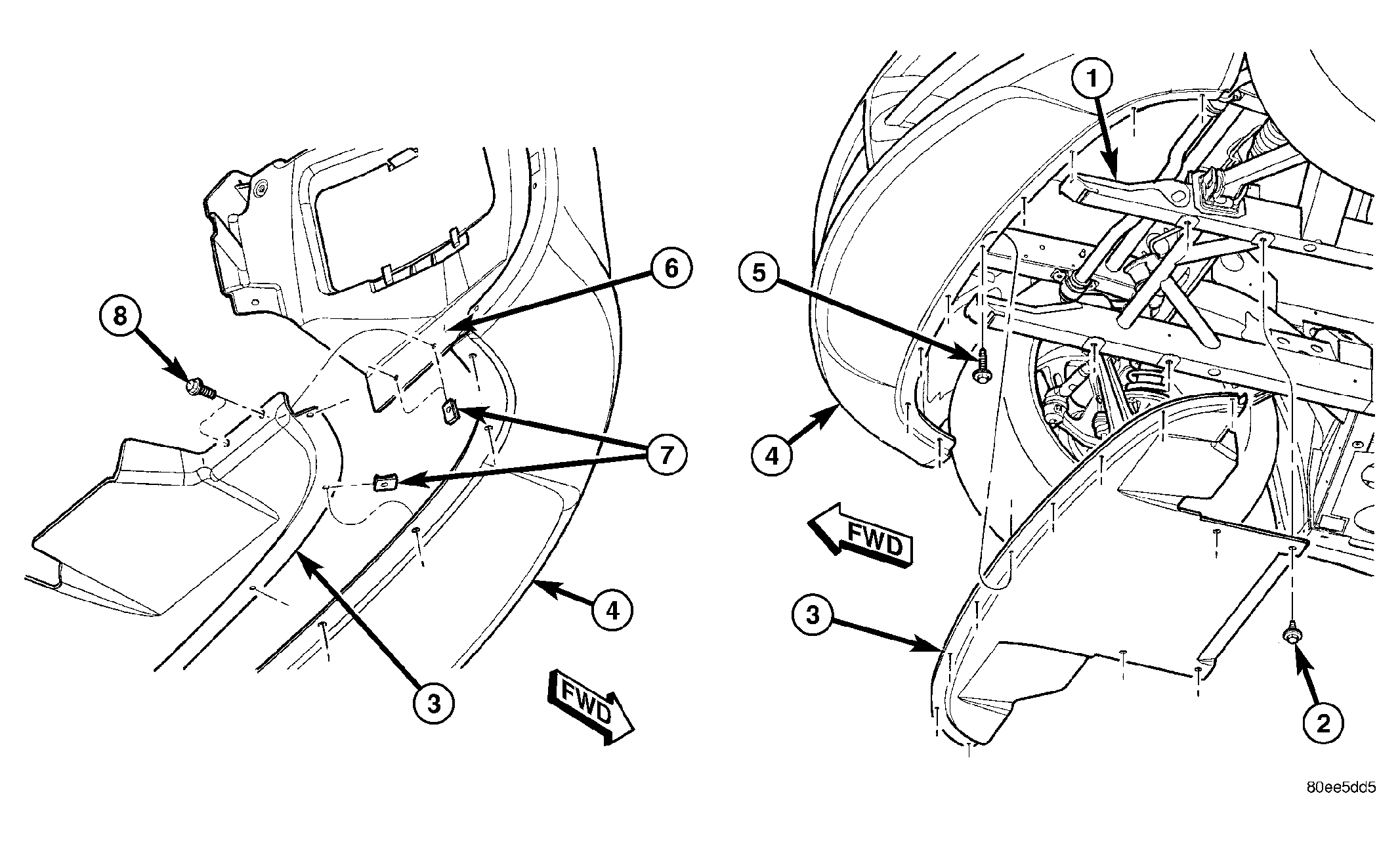

Fig 1: Front Extension Belly Pan

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRAME ASSEMBLY

2 - FRAME BOLTS (4)

3 - FRONT EXTENSION BELLY PAN

4 - FRONT FASCIA

5 - FASCIA BOLTS (9)

6 - HEADLAMP MOUNT SUPPORT

7 - SPRING NUT

8 - HEADLAMP MOUNT SUPPORT BOLTS (4)
