Starter Connector End View

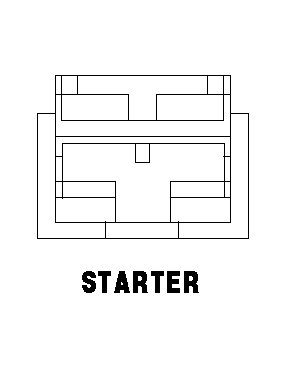

STARTER - 1 WAY

GCPT680347Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 T40 14BR (1.6L) STARTER RELAY OUTPUT
1 T750 16BR (2.4L EXCEPT TURBO) STARTER RELAY OUTPUT
1 T750 14BR (2.4L TURBO) STARTER RELAY OUTPUT
1 T750 14VT (DIESEL) STARTER RELAY OUTPUT
