Satellite Acceleration Sensor - Pt27: Installation

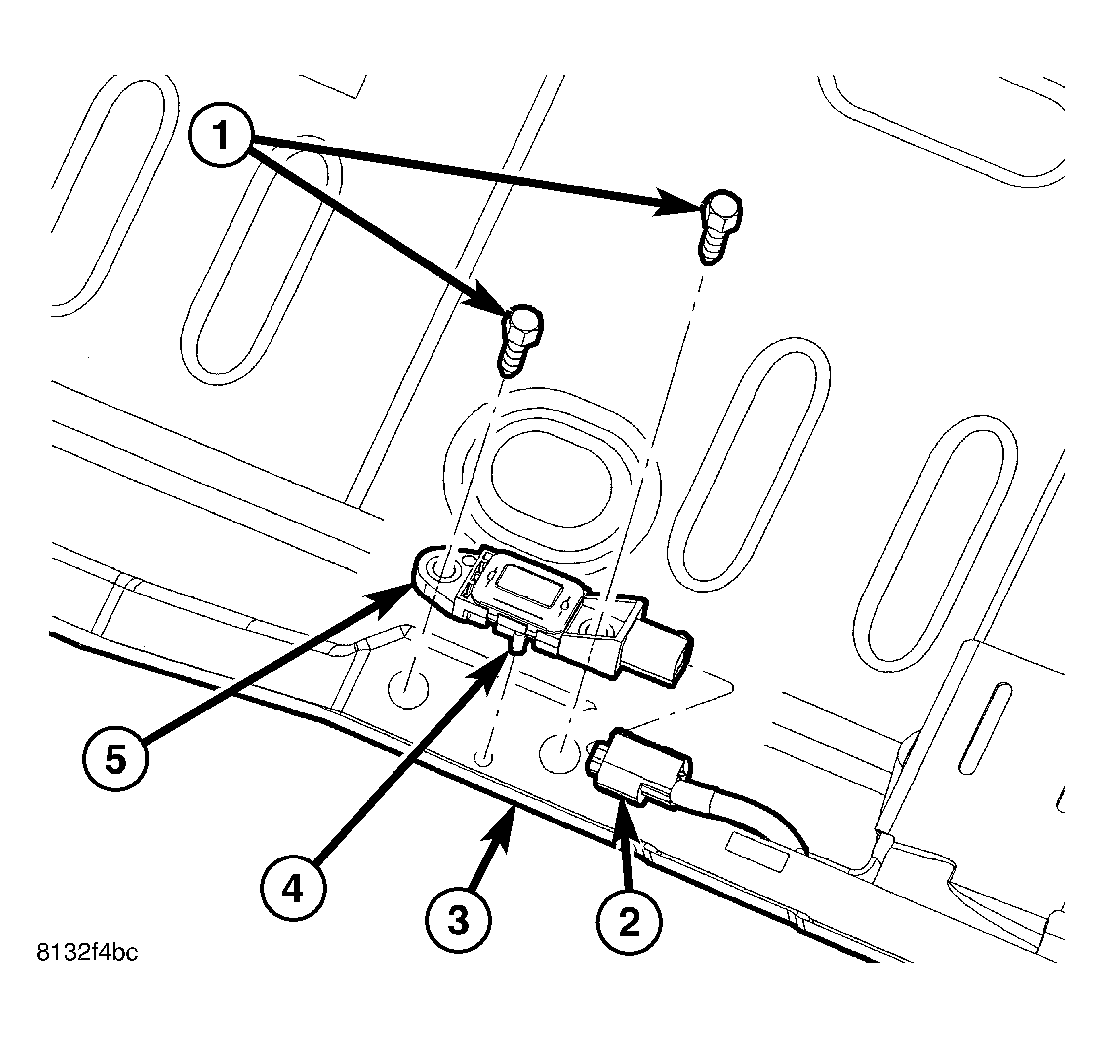

Fig 1: Satellite Acceleration Sensor - Remove/Install
GC0023018Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the Satellite Acceleration Sensor (SAS) (5) in position.
  2. Install the retaining screws (1). Tighten the screws to 10.5 N.m (95 in. lbs.).
  3. Connect the SAS electrical connector (2).
  4. Install the quarter panel trim.
WARNING: Do not connect the battery negative cable (Refer to ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING - AIRBAG SYSTEM)  . Personal injury or death may result if the system test is not performed first.
