Ignition System (Service Information): Sensor-Knock: Removal: 1.6L

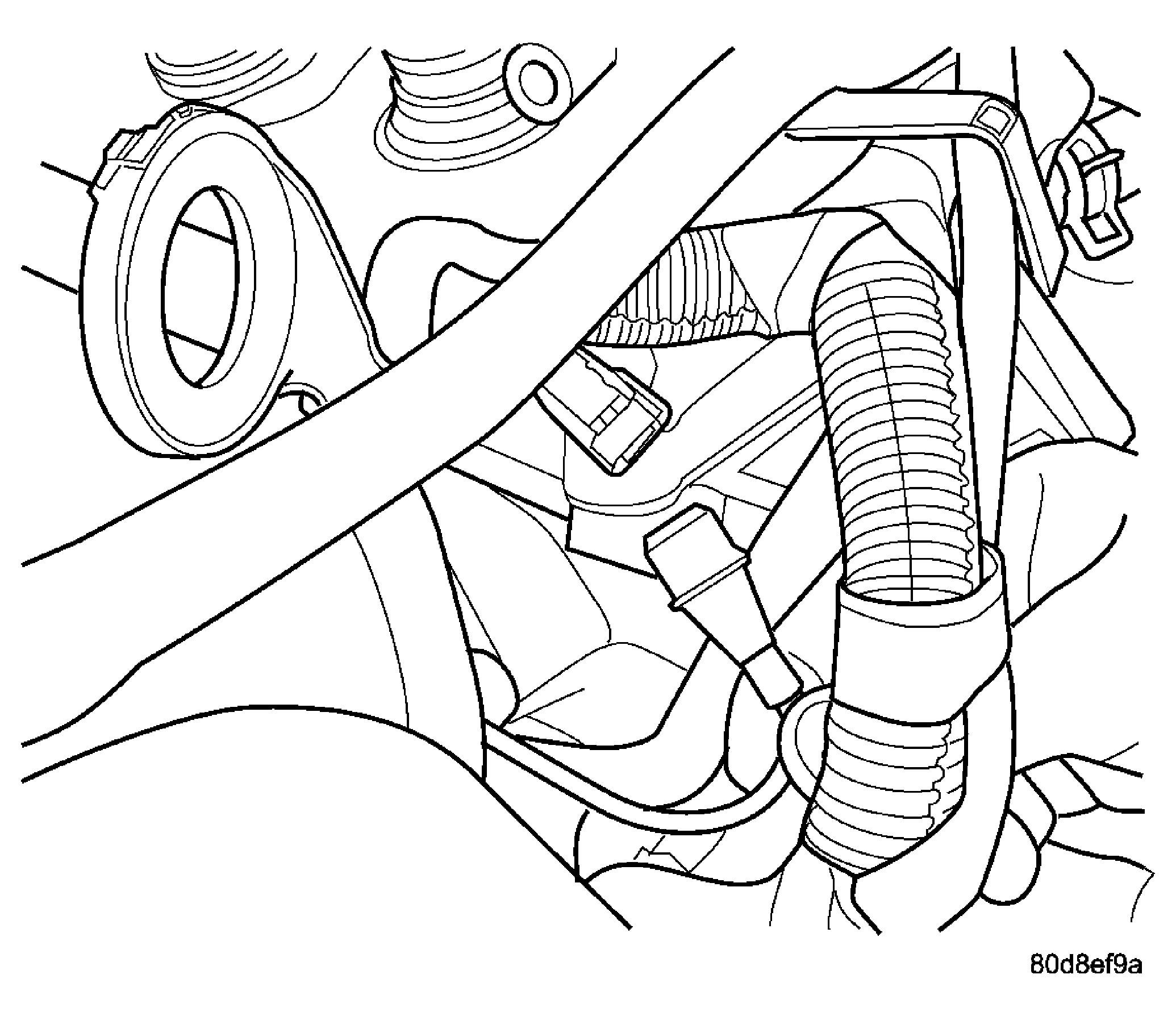

Fig 1: Knock Sensor Wiring Connector - 1.6L

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove air cleaner assembly cover.
2. Disconnect the negative battery cable.
3. Disconnect the electrical connector for the sensor. See Fig 1 and Fig 2.

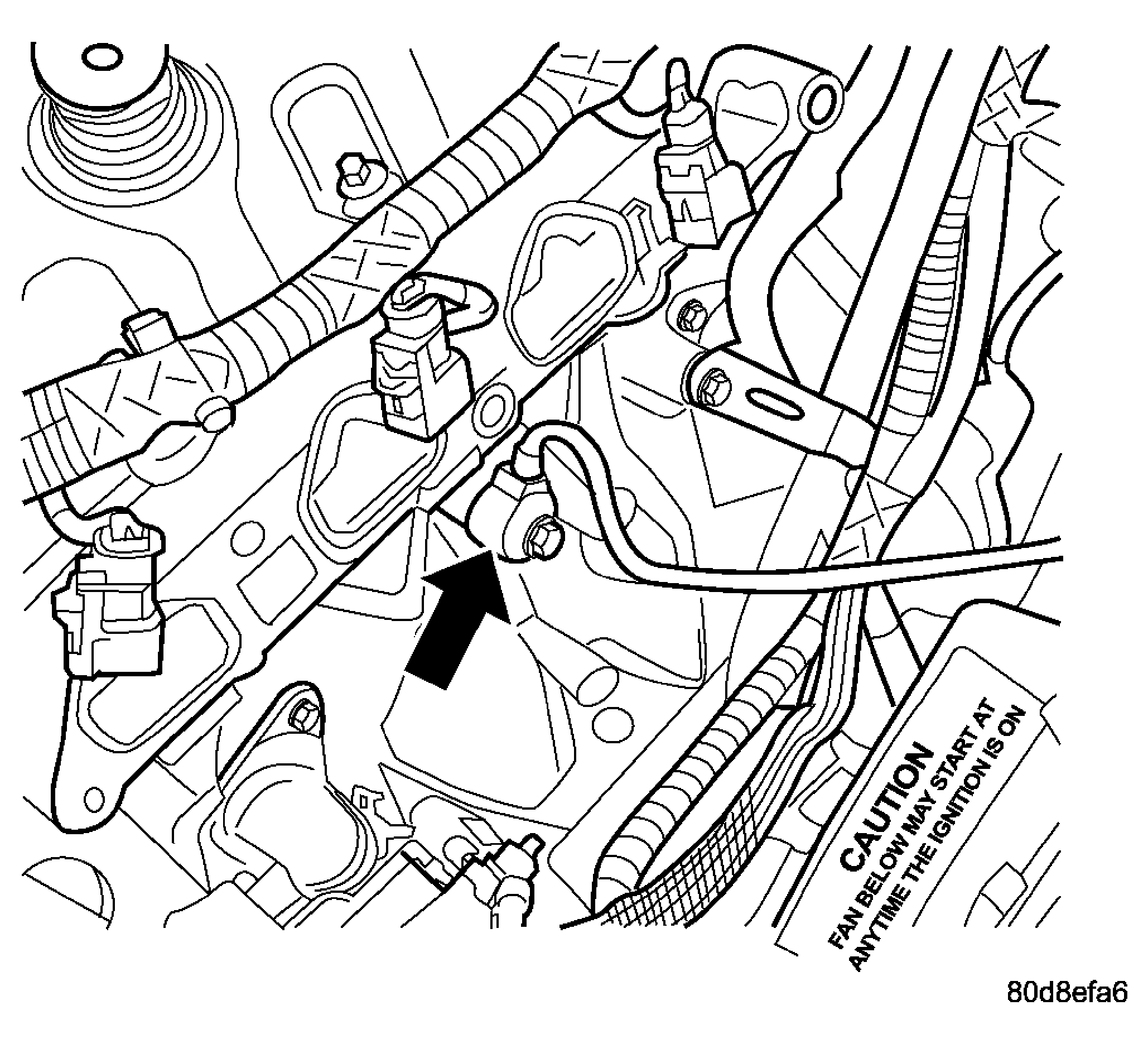

   Fig 2: Locating Knock Sensor - 1.6L

   Courtesy of DAIMLERCHRYSLER CORP.
4. Remove knock sensor. The knock sensor is located under the intake manifold. See Fig 2.
