Sensor-Camshaft Position: Removal: 1.6L

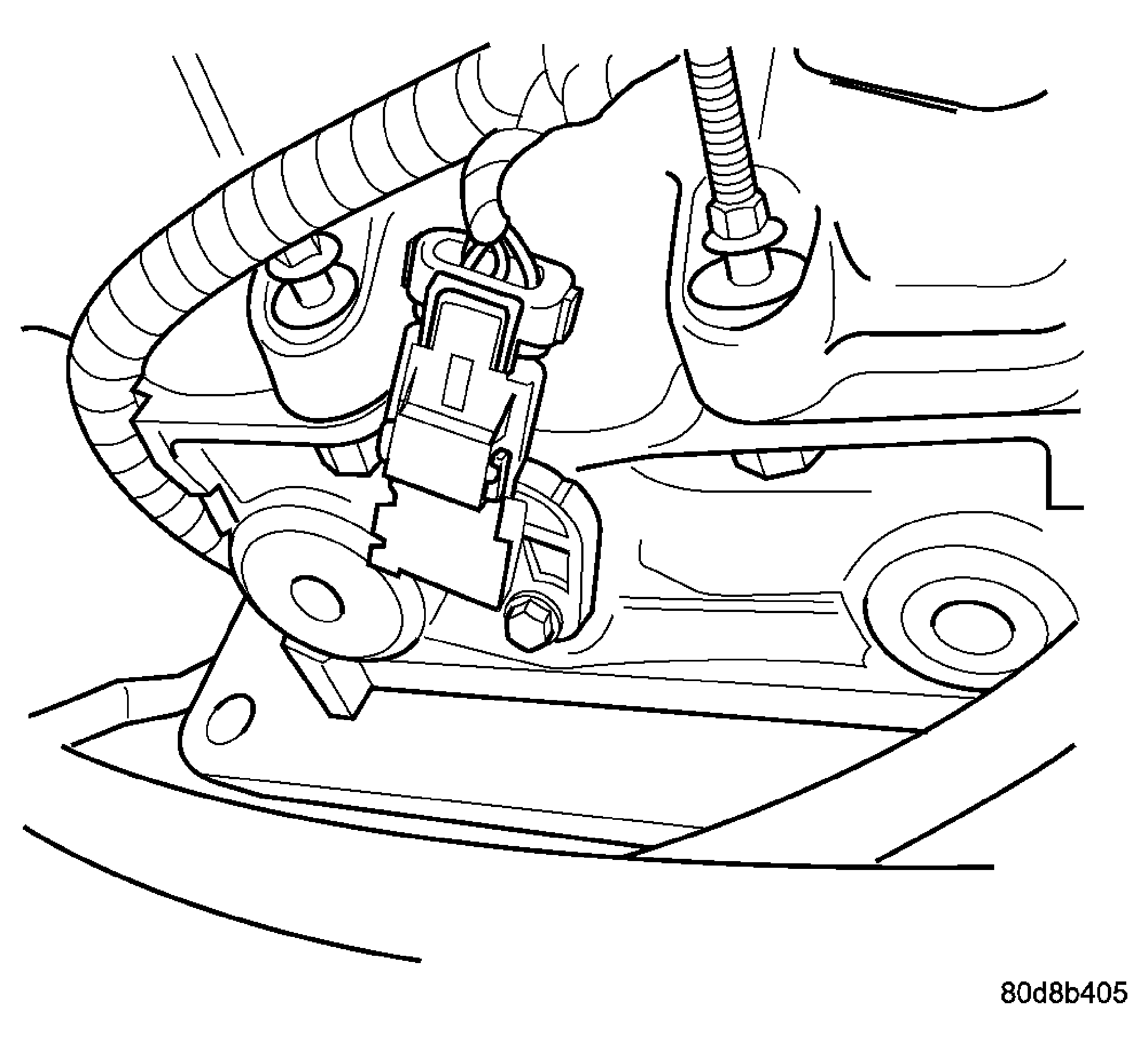

Fig 1: Camshaft Sensor Location - 1.6L
GC0022900Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect the negative battery cable.
  2. Relocate the power steering return hose.
  3. Disconnect the electrical connector from the camshaft sensor.
  4. Remove 1 screw from sensor.
  5. Remove sensor.
