2.4L Turbo

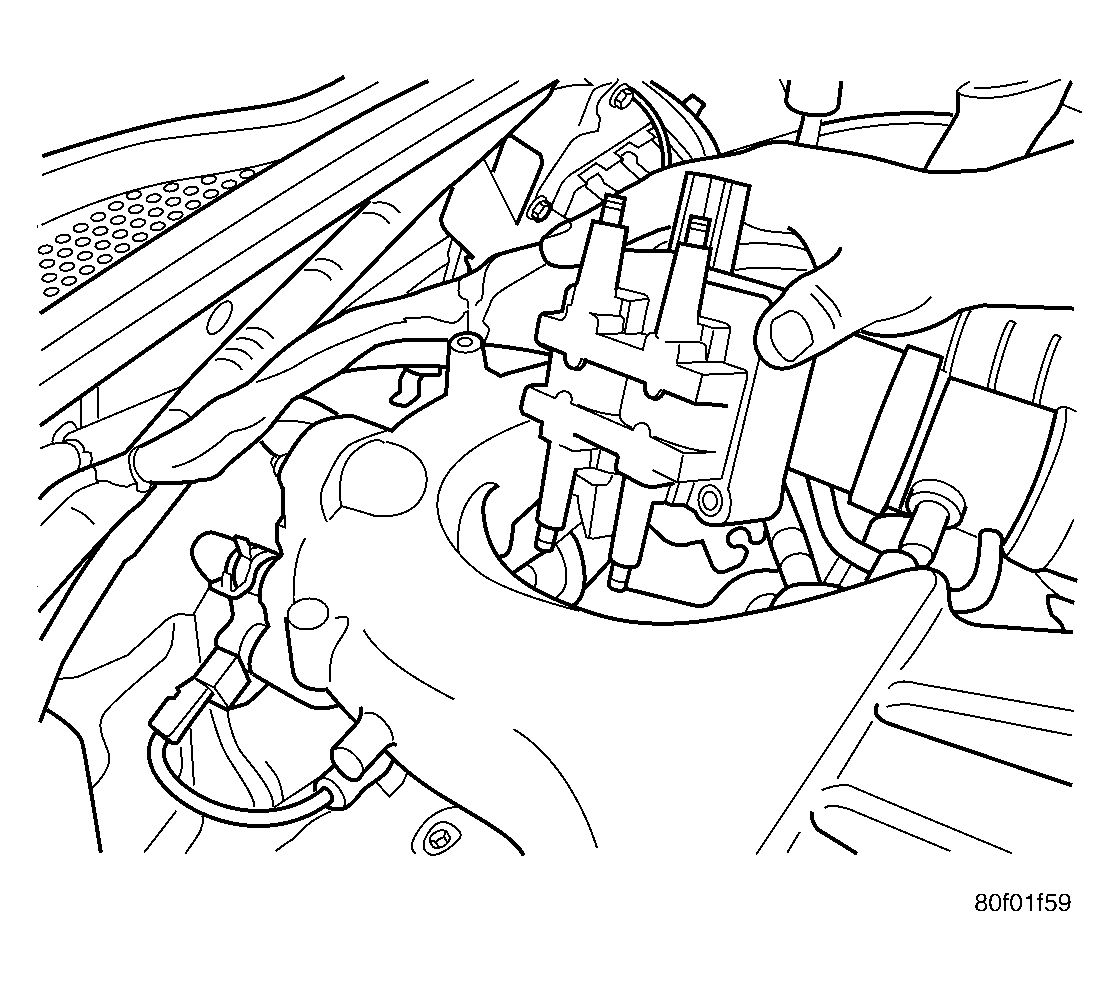

Fig 1: Removing/Installing Ignition Coil
GC0022912Courtesy of DAIMLERCHRYSLER CORP.
  1. Install the coil on throttle body side of the intake manifold, rotate down past the throttle body to the valve cover. See Figure.

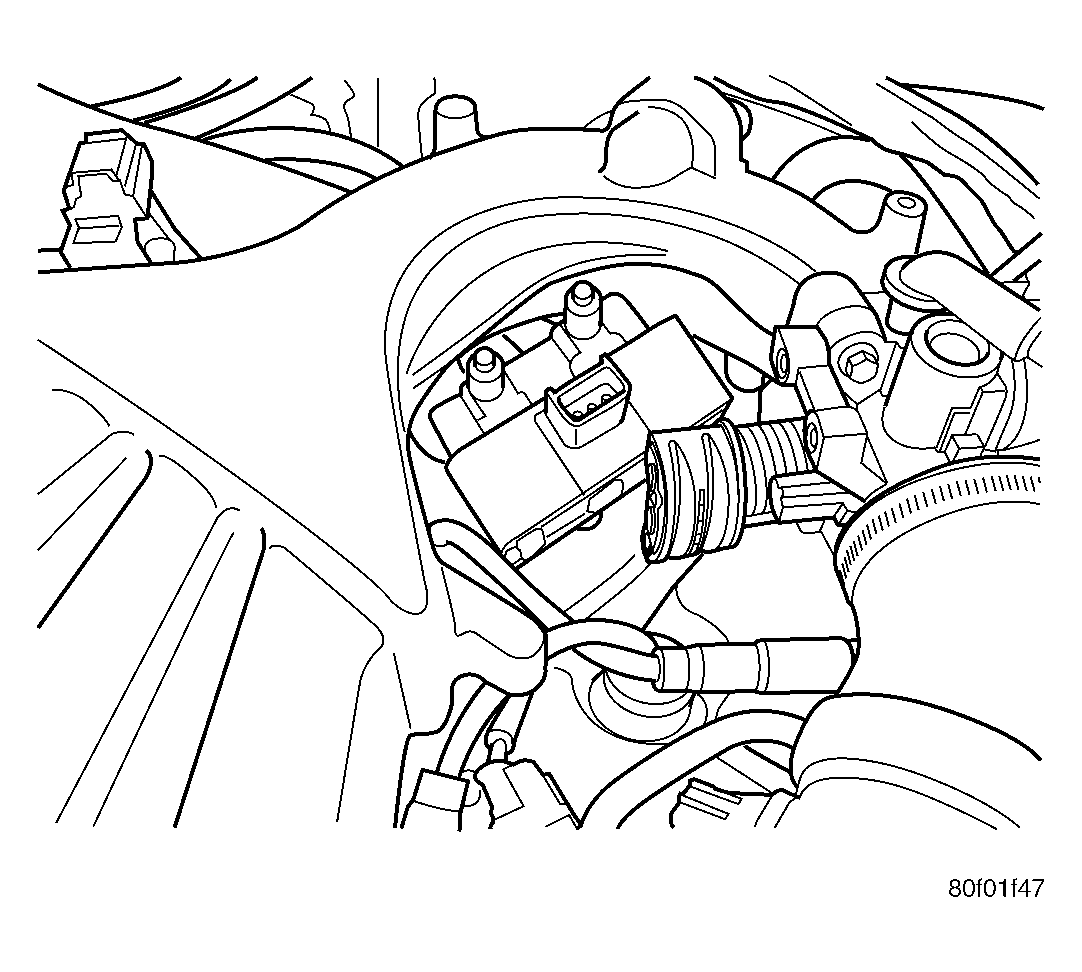

    Fig 2: Positioning Ignition Coil For Removal/Installation
    GC0022911Courtesy of DAIMLERCHRYSLER CORP.
  2. Rotate coil pack and install under intake manifold.

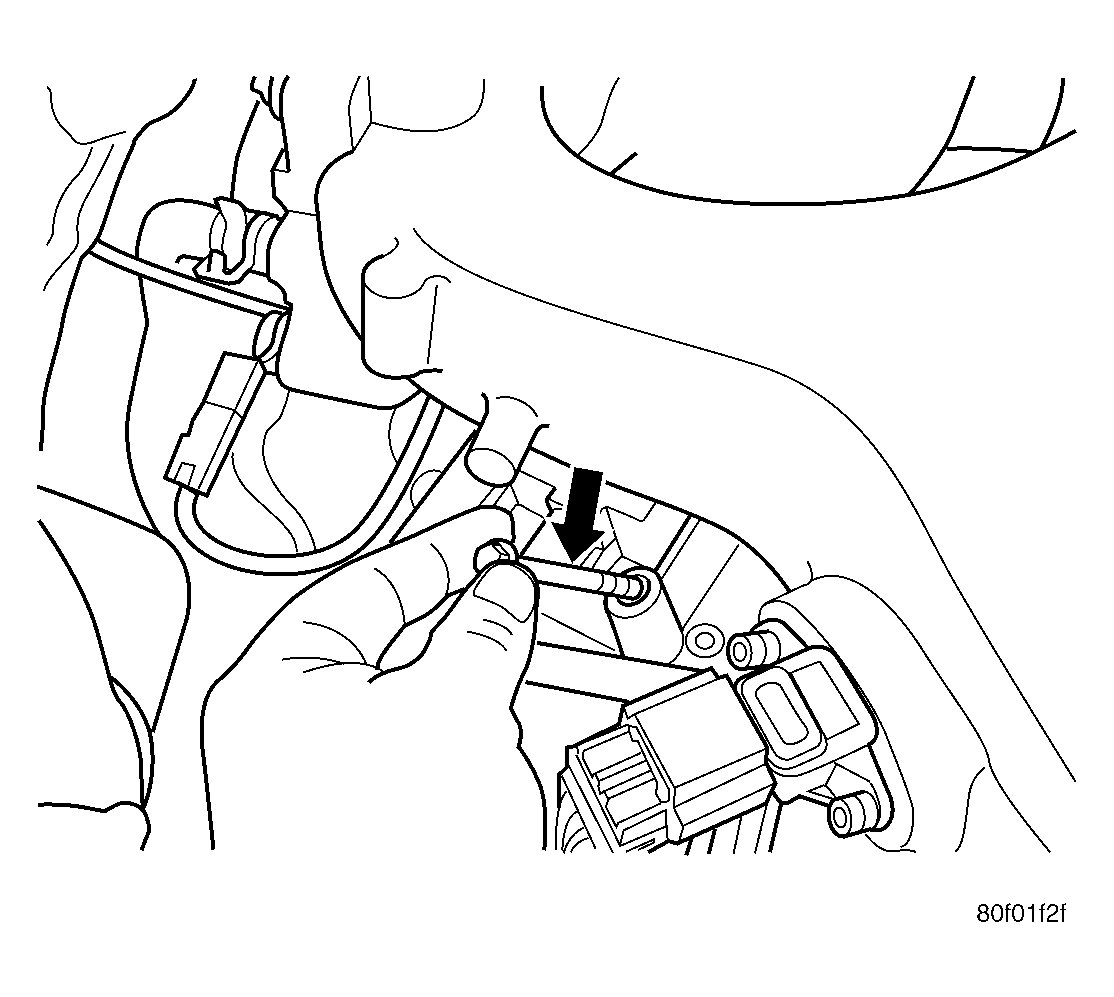

    Fig 3: Removing/Installing Bolts From Ignition Coil
    GC0022910Courtesy of DAIMLERCHRYSLER CORP.
  3. Install bolts to ignition coil. Twist coil to install 2 of the bolts.
  4. Install coil pack on valve cover. Tighten the bolts to 12 N.m (105 in. lbs.).
  5. Install the spark plug cables to the ignition coil.
  6. Connect and lock the electrical connector to the ignition coil.

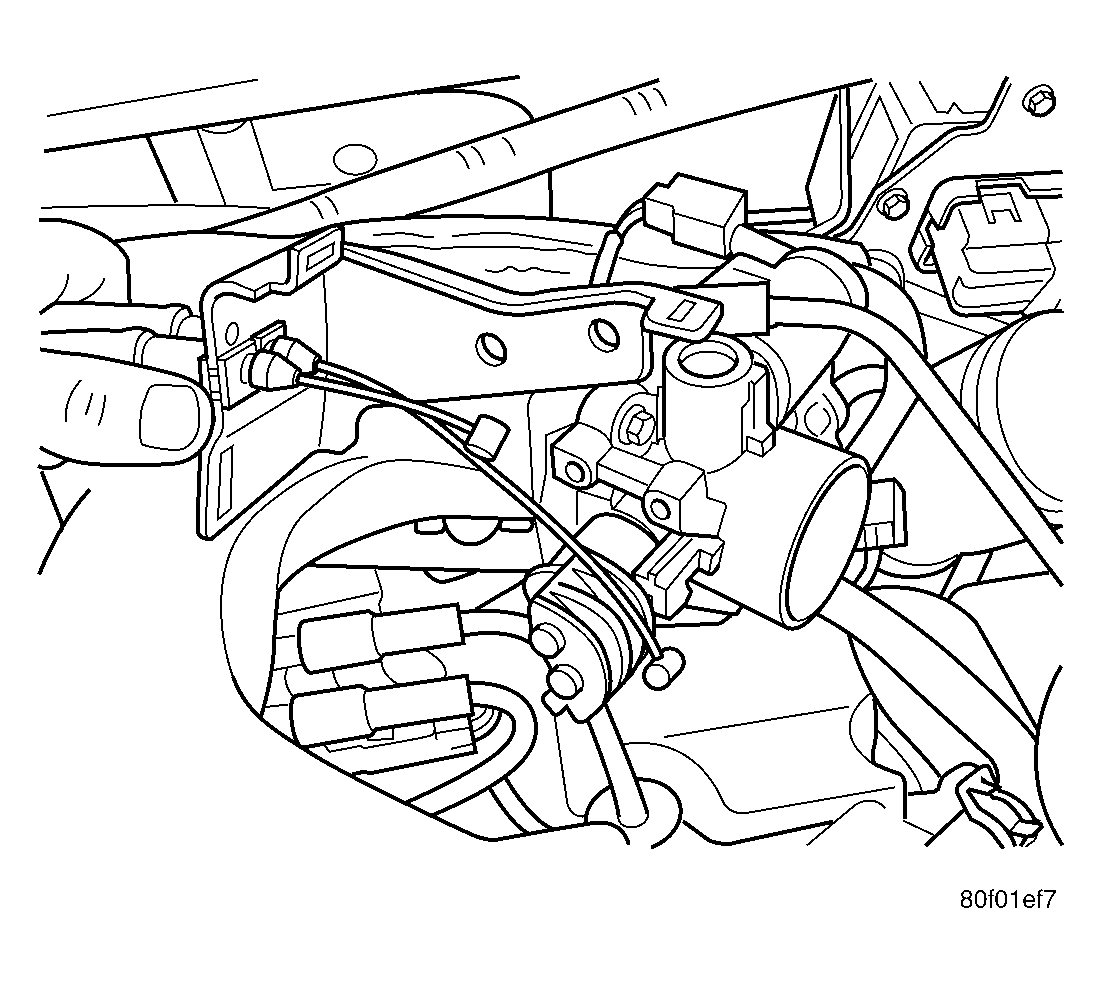

    Fig 4: Throttle Cable Bracket
    GC0021674Courtesy of DAIMLERCHRYSLER CORP.
  7. Install the throttle cable bracket. See Figure.

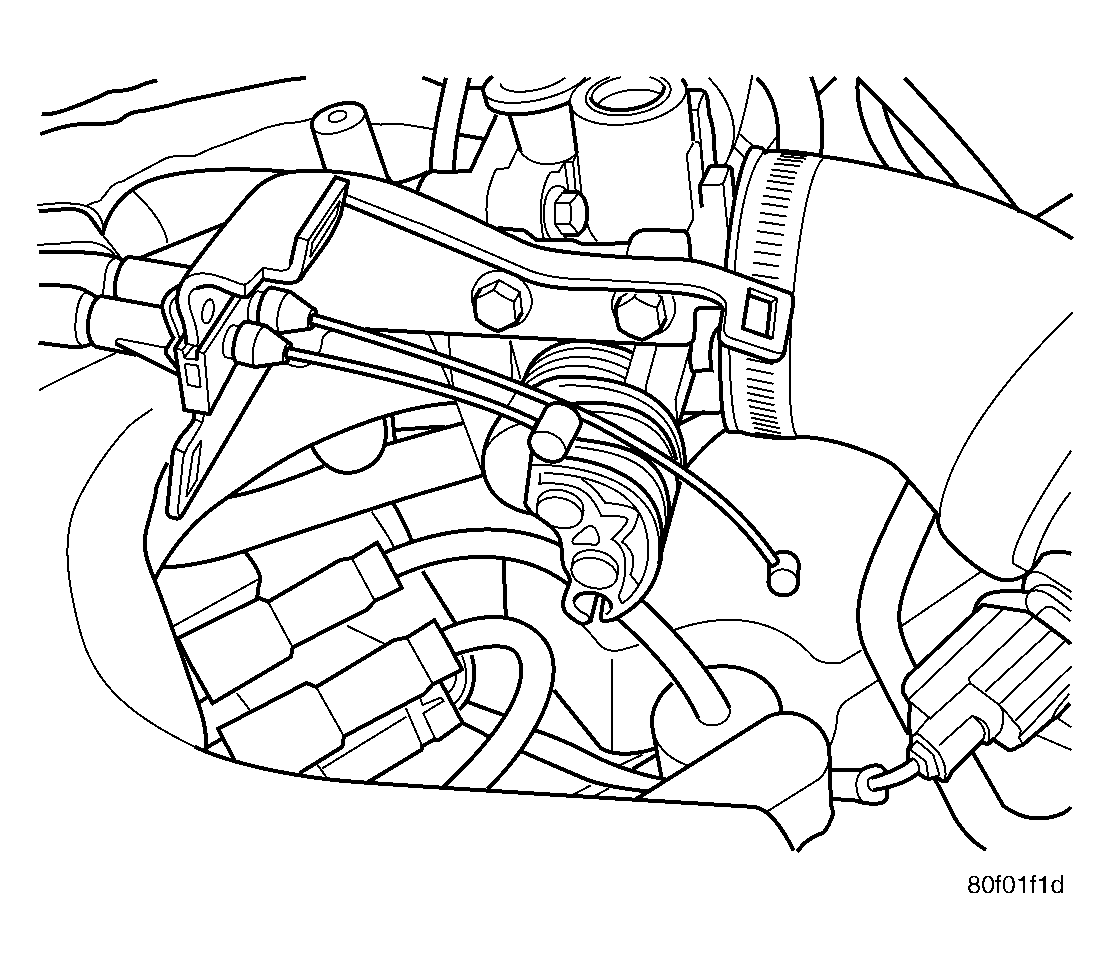

    Fig 5: Throttle Cables
    GC0021675Courtesy of DAIMLERCHRYSLER CORP.
  8. Install the throttle cables to the throttle body lever. See Figure.

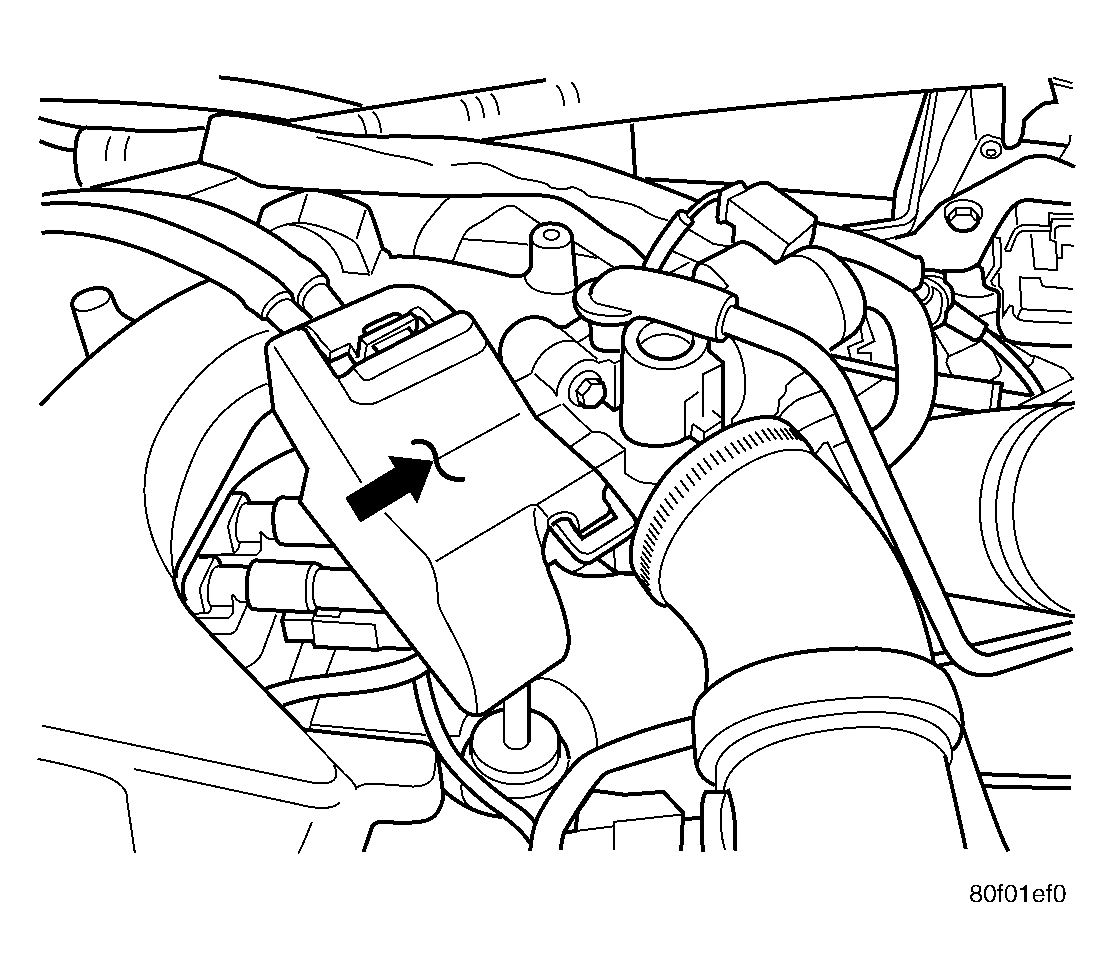

    Fig 6: Throttle Control Shield
    GC0021943Courtesy of DAIMLERCHRYSLER CORP.
  9. Connect the negative battery cable.
    NOTE: Check and make sure that throttle body and attachments will not contact ignition cables.
  10. Install the throttle control shield. See Figure.
