Ignition System (Service Information): Coil-Ignition: Installation: 1.6L

Fig 1: Rubber Insulators And Ignition Coil - 1.6L

Courtesy of DAIMLERCHRYSLER CORP.

1 - RUBBER ISOLATORS_1

2 - COIL_2

1. Install coil and insulators and tighten bolts to 12 N.m (105 in. lbs.).

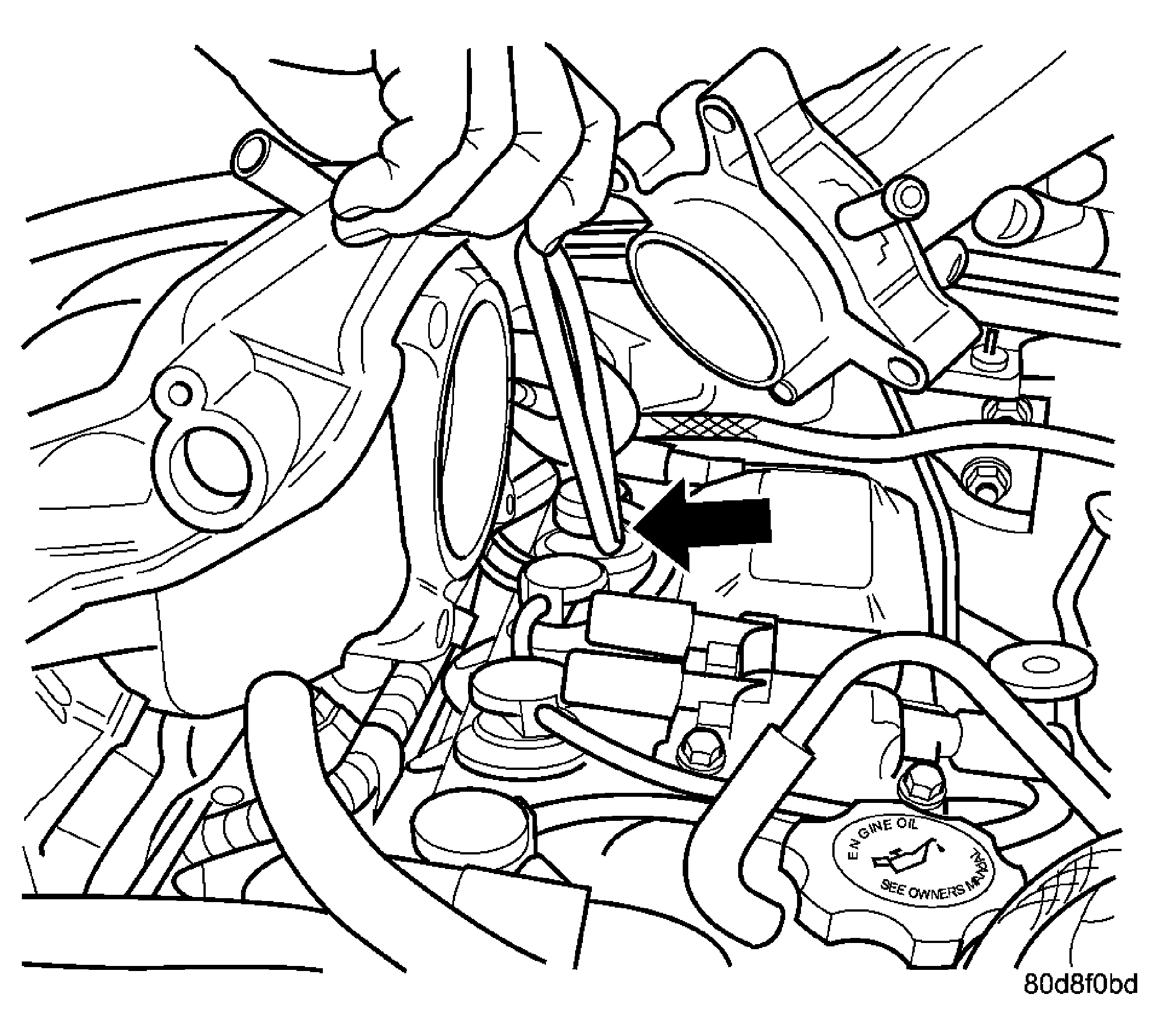

   Fig 2: Installing Gasket To Upper Intake Manifold

   Courtesy of DAIMLERCHRYSLER CORP.
2. Install gasket to upper intake manifold.

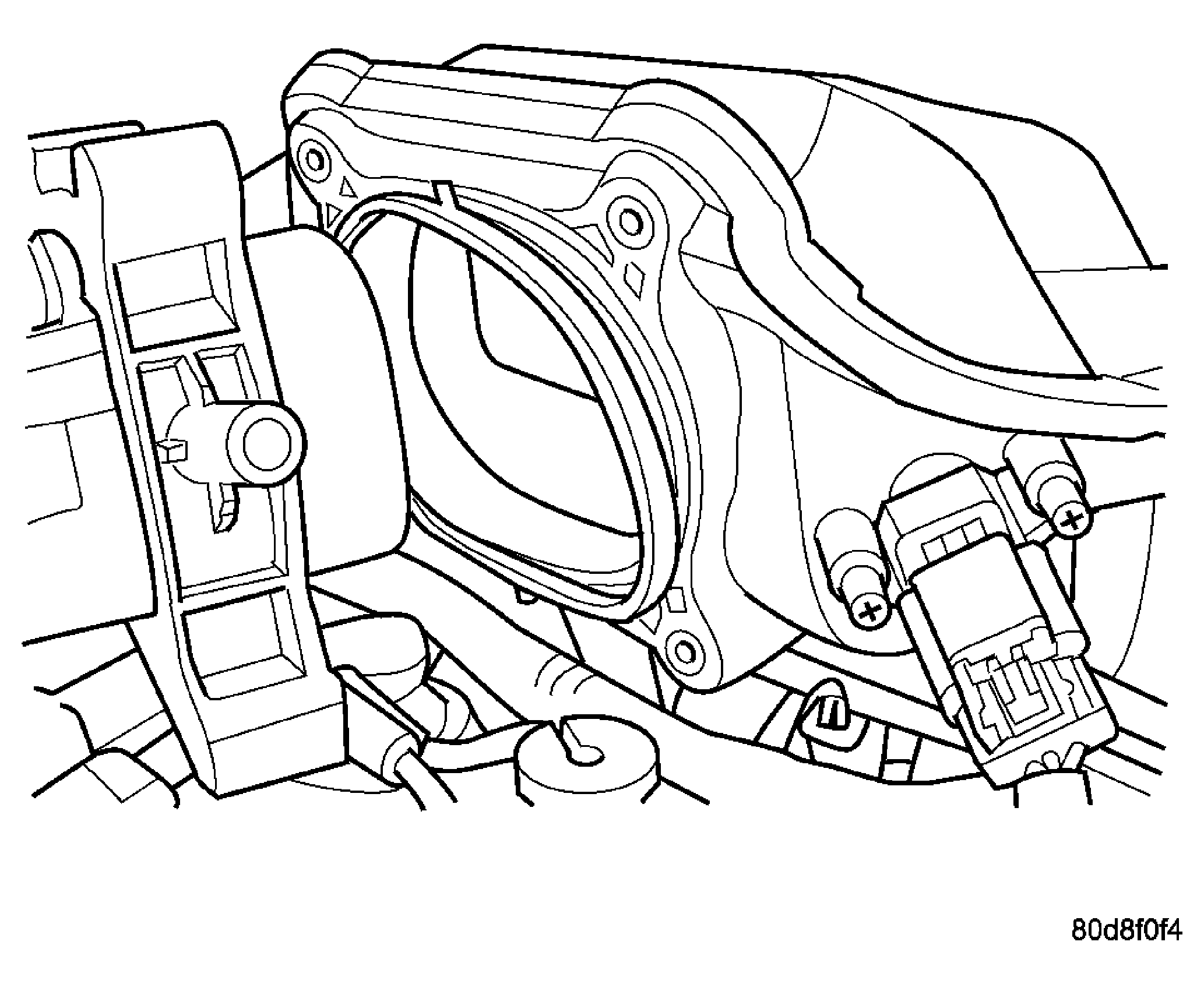

   Fig 3: Upper Intake Gasket Positioning

   Courtesy of DAIMLERCHRYSLER CORP.
3. Install the 4 bolts from the upper to lower manifold and tighten to 12 N.m (105 in. lbs.).
4. Install the 2 bolts to the upper manifold to struts and tighten to 19 N.m (165 in. lbs.).
5. Install the PCV hose and the brake booster hose to the upper manifold.
6. Install the purge hose to throttle body.
7. Connect the electrical connector to throttle body.
8. Connect the negative battery cable.
9. Install air cleaner assembly cover and connect the inlet air temperature sensor. See Figure.
