1.6L Engine

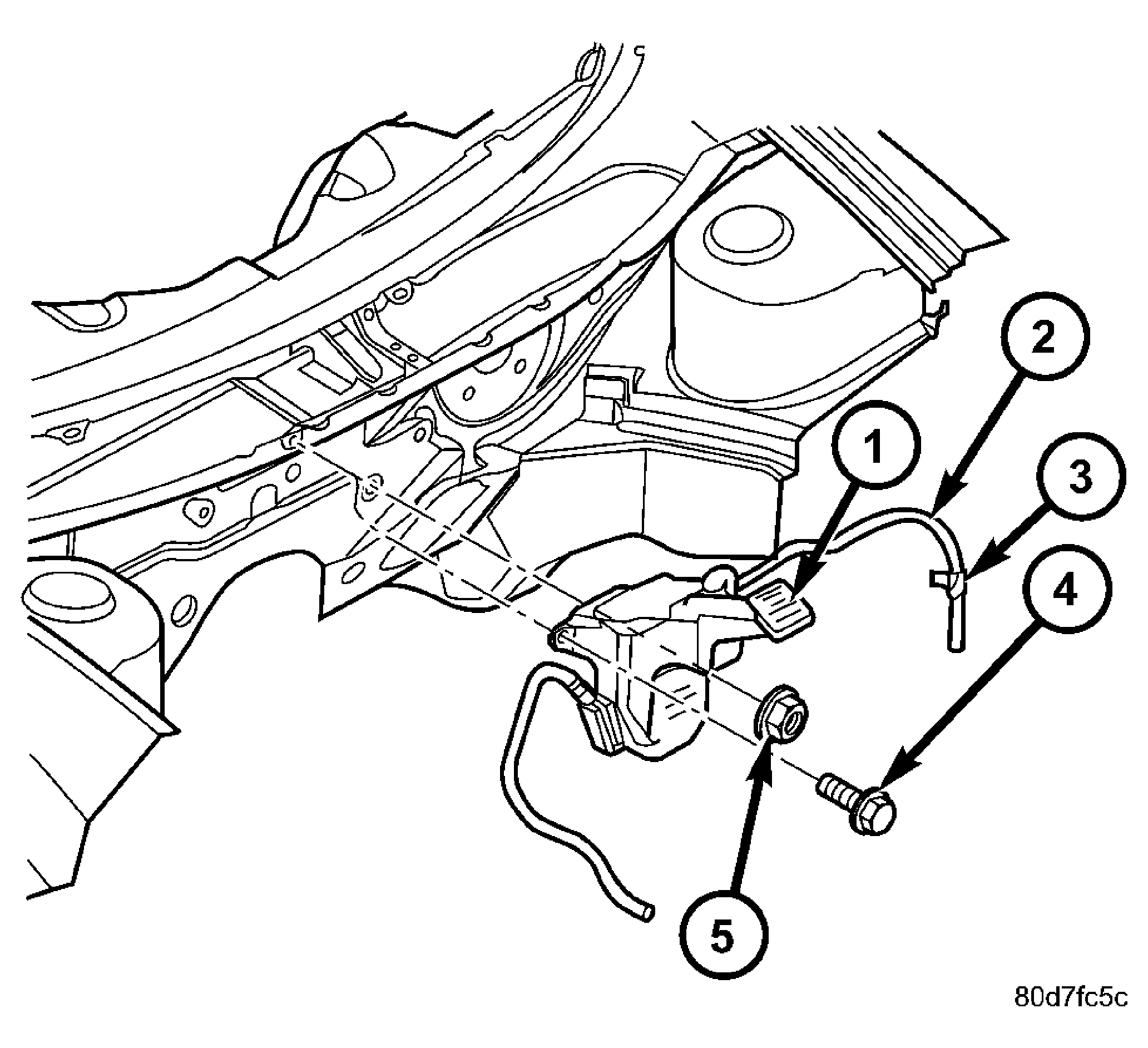

Fig 1: Coolant Recovery Container
GC0021805Courtesy of DAIMLERCHRYSLER CORP.
1 - COOLANT RECOVERY CONTAINER
2 - VENT HOSE
3 - CLIP
4 - SCREW
5 - NUT
  1. Install coolant recovery container (1) and tighten fasteners to 4 N.m (35 in. lbs.). See Figure.
    Fig 2: Overflow Hose Routing
    GC0021807Courtesy of DAIMLERCHRYSLER CORP.
    1 - RADIATOR NECK
    2 - OVERFLOW HOSE
  2. To ensure proper vent hose routing, install vent hose clip on stud at dash panel.
  3. Connect overflow hose at radiator neck (1). See Figure.
  4. Fill coolant recovery container to proper level.
