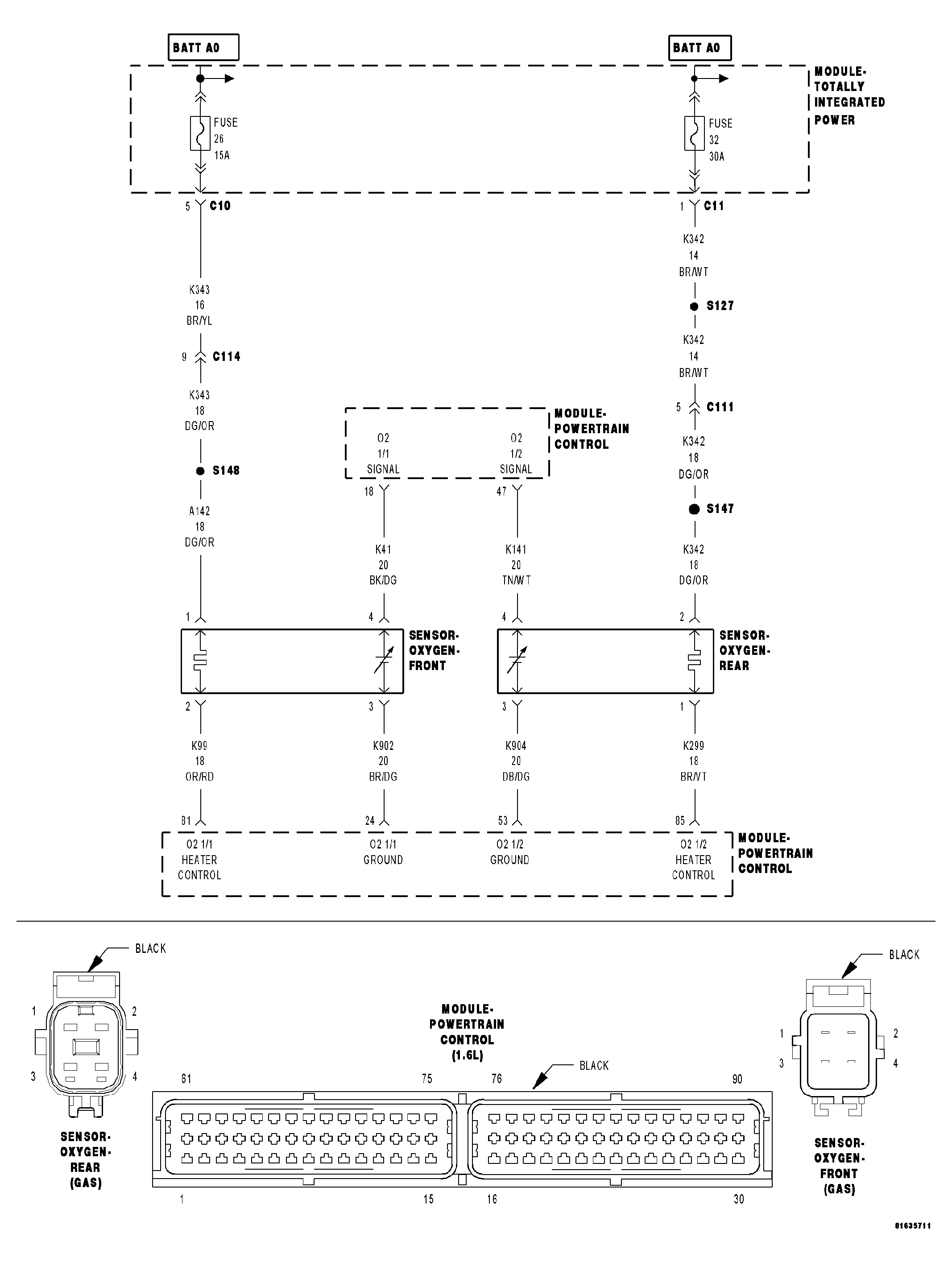

Home >> Chrysler >> 2006 >> PT Cruiser Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> 1.6L Engine - DTCS P0132 To P0302 >> Diagnosis And Testing >> P0137-1/2 O2 Sensor Shorted To Ground >> Circuit Schematic
