Security Hood Switch (Export) Connector End View

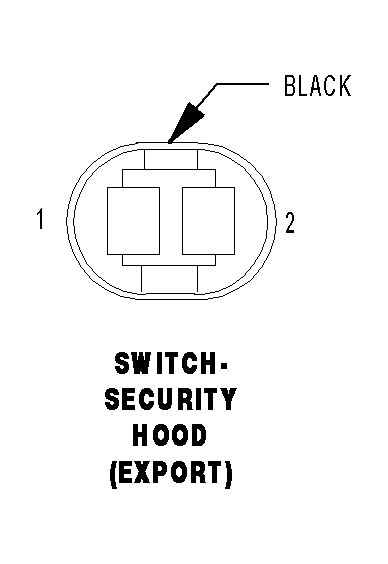

SWITCH-SECURITY HOOD (EXPORT) - BLACK 2 WAY

GCPT680381Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 G70 20BR/TN HOOD AJAR SWITCH SENSE
2 Z902 20BK GROUND
