Power Instrument Panel Outlet Connector End View

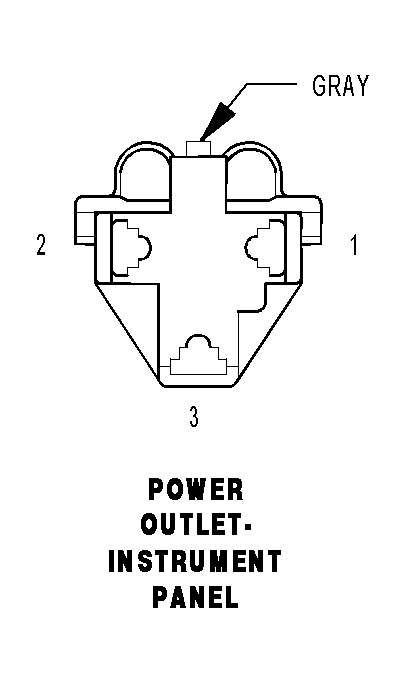

POWER OUTLET-INSTRUMENT PANEL - GRAY 3 WAY

GCPT680272Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 F986 16PK/TN FUSED IGNITION SWITCH OUTPUT (RUN/ACC)
2 - -
3 Z907 16BK GROUND
