Left Front Fog Lamp Connector End View

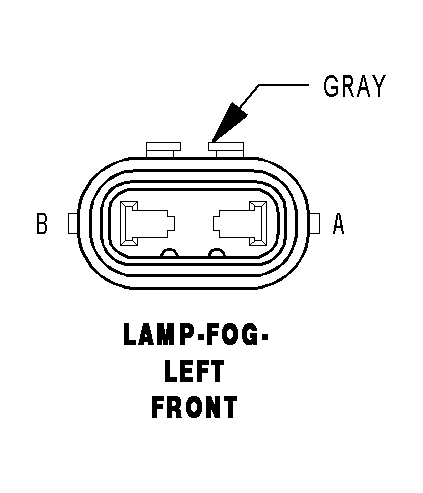

LAMP-FOG-LEFT FRONT - GRAY 2 WAY

GCPT680164Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
A L89 18WT/YL FRONT FOG LAMP CONTROL OUTPUT
B Z902 20BK GROUND
