A/C Low Pressure Switch Connector End View

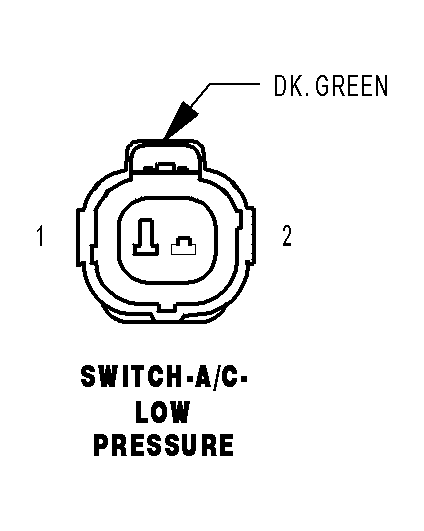

SWITCH-A/C-LOW PRESSURE - DK. GREEN 2 WAY

GCPT680356Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 Z902 20BK GROUND
2 C21 20DB/LG A/C LOW PRESSURE SIGNAL
