2.2L Diesel

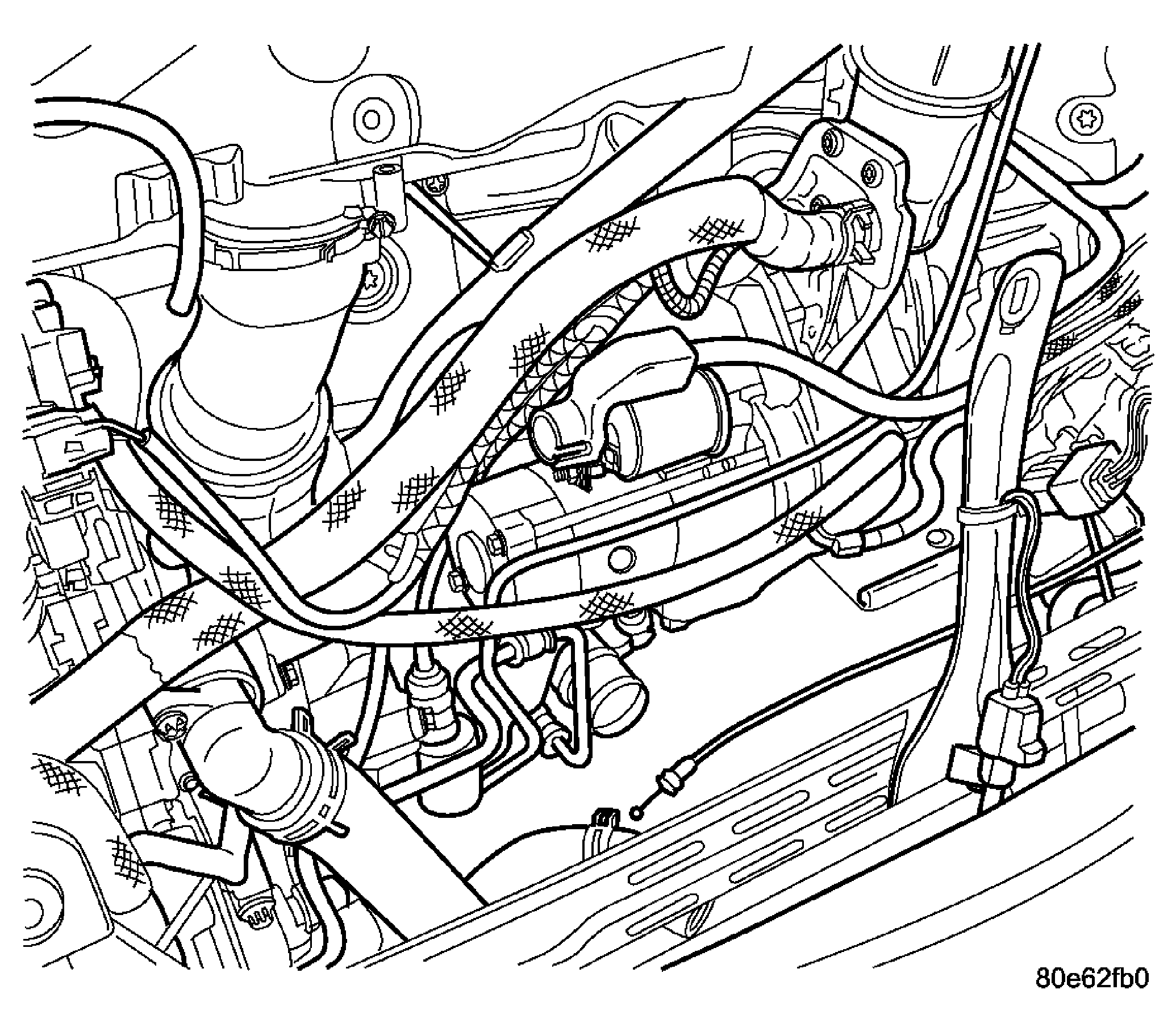

Fig 1: View of Starter Location
GC0021924Courtesy of DAIMLERCHRYSLER CORP.
  1. Install starter. See Fig 1.
  2. Install the upper mounting bolt.
  3. Install the lower mounting bolt and ground cable.

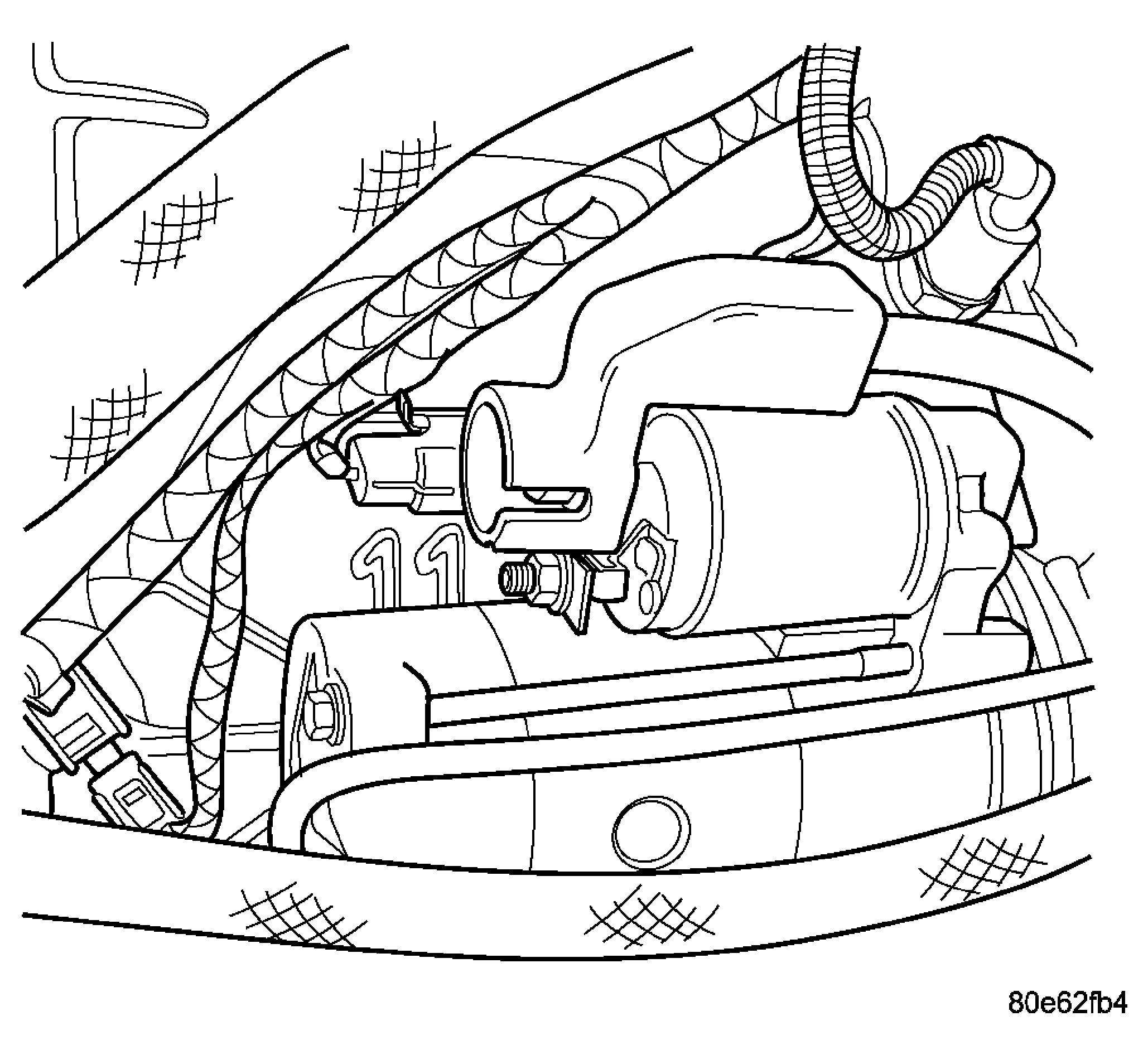

    Fig 2: View Of Starter Solenoid Electrical Connections
    GC0021925Courtesy of DAIMLERCHRYSLER CORP.
  4. Connect the battery cable to the starter. See Fig 2.
  5. Connect the electrical connectors to the starter. See Fig 2.

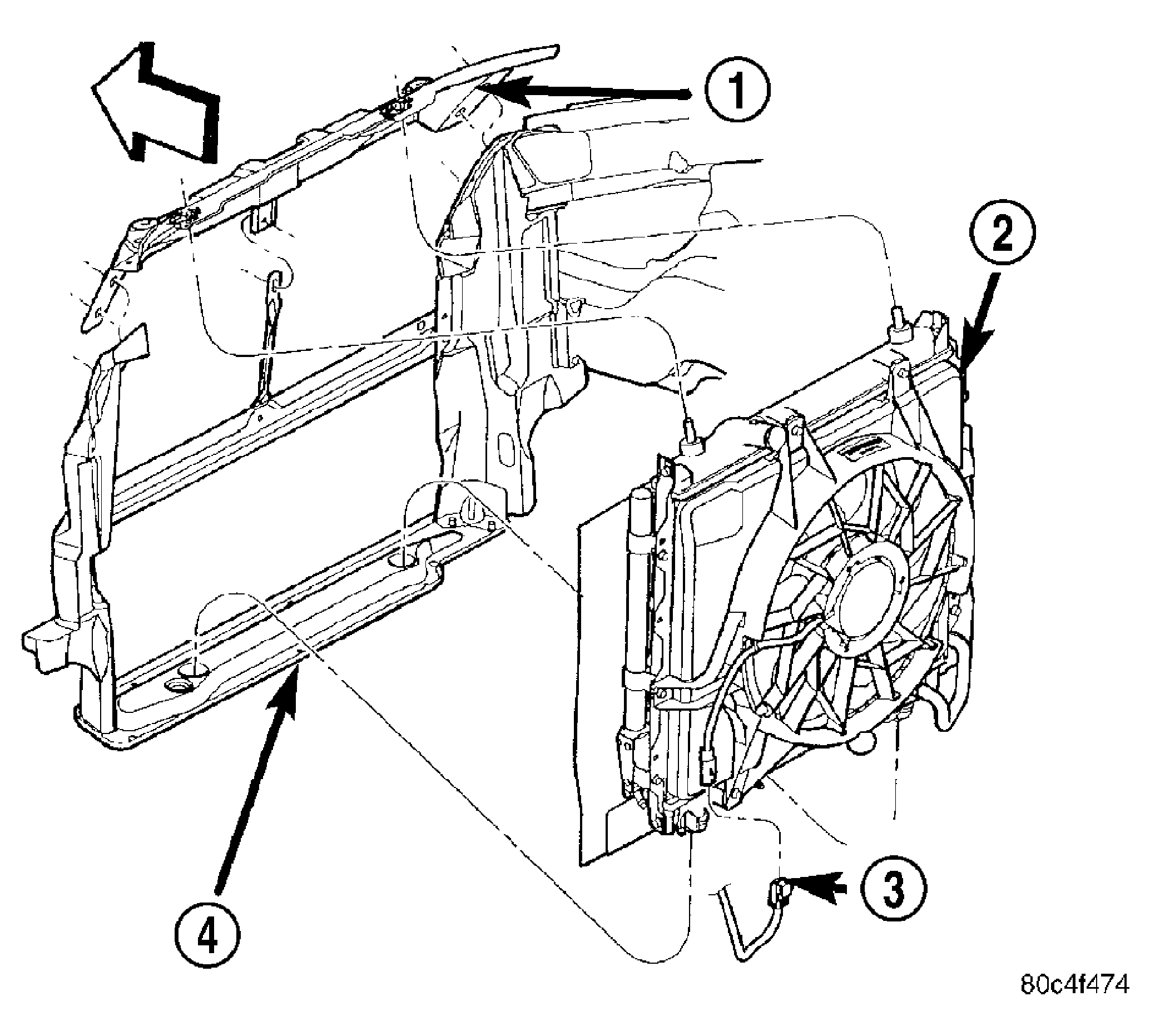

    Fig 3: View Of Cooling Module
    GC0041000Courtesy of DAIMLERCHRYSLER CORP.
    1 - UPPER RADIATOR CROSSMEMBER
    2 - COOLING MODULE
    3 - RADIATOR FAN CONNECTOR
    4 - LOWER RADIATOR CROSSMEMBER
  6. Install the radiator to vehicle. See Fig 3.
  7. Connect the negative battery cable.
