Starter Motor: Installation: 1.6L

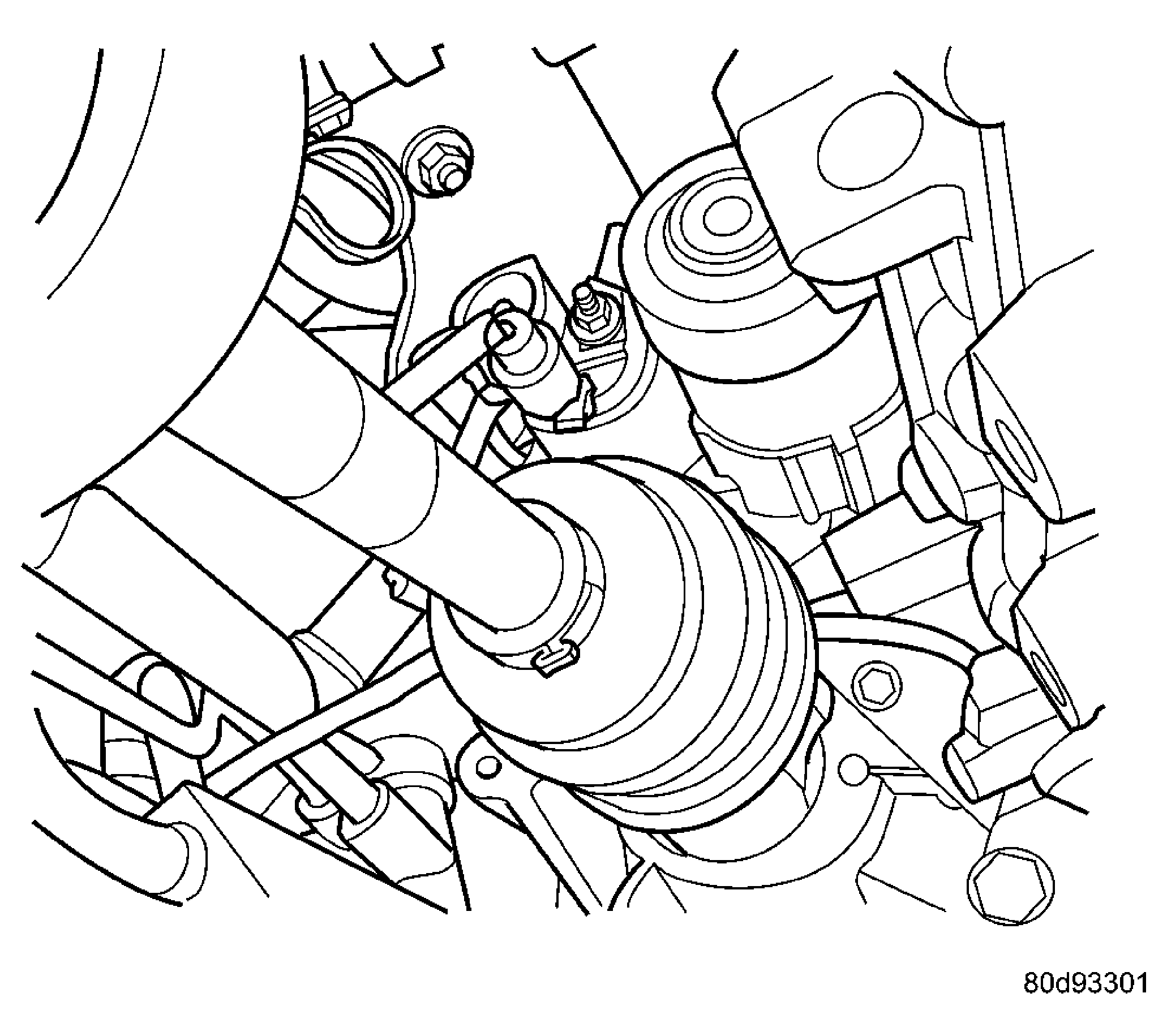

Fig 1: Removing/ Installing Starter

Courtesy of DAIMLERCHRYSLER CORP.

Install the starter through the wheel well. See Fig 1.

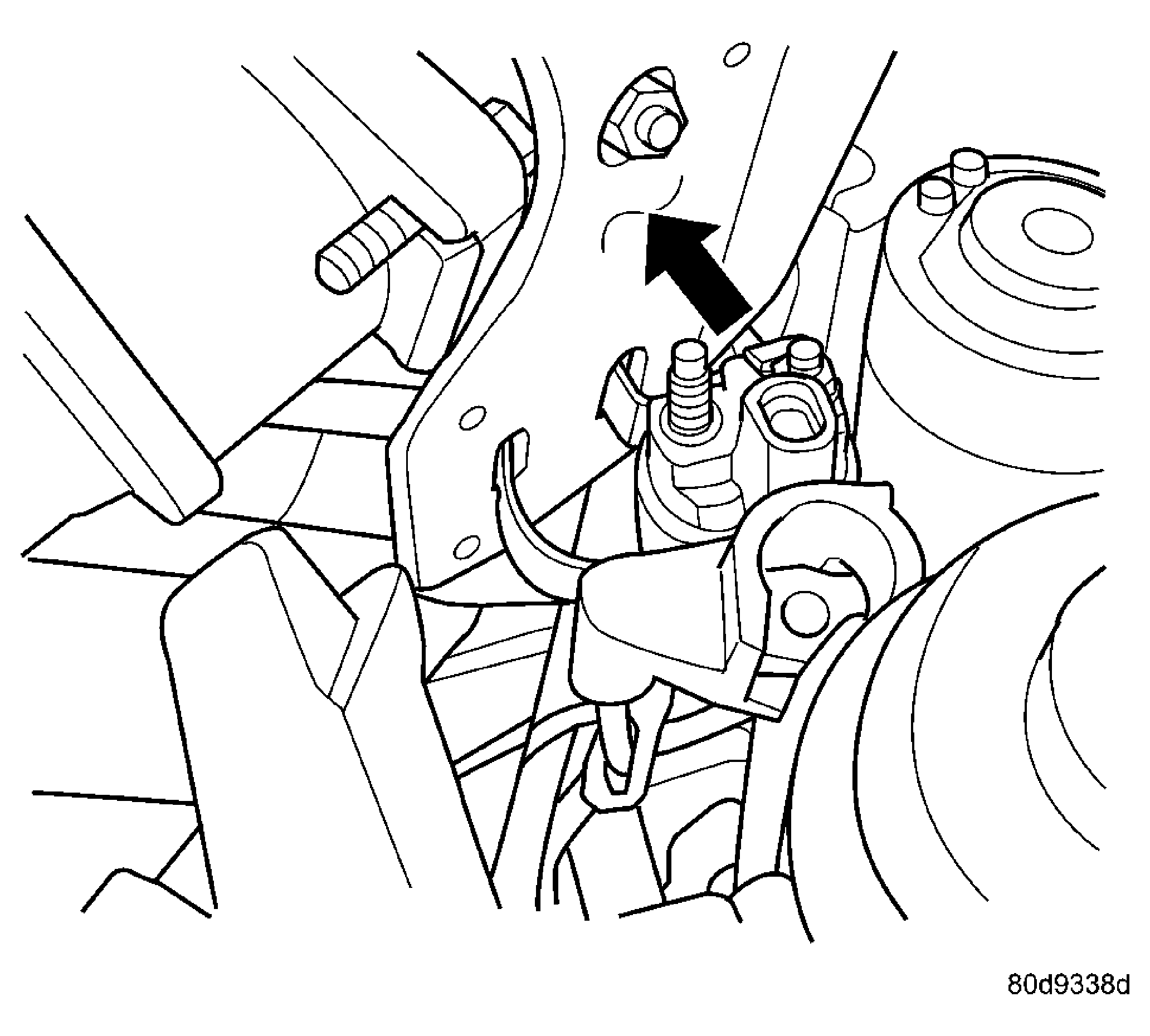

Fig 2: Starter Heat Shield
Courtesy of DAIMLERCHRYSLER CORP.
Install the lower mounting bolt.
Install the upper mounting bolts.
Push the spring clip that holds the heat shield for the starter back on the starter solenoid. See Fig 2.

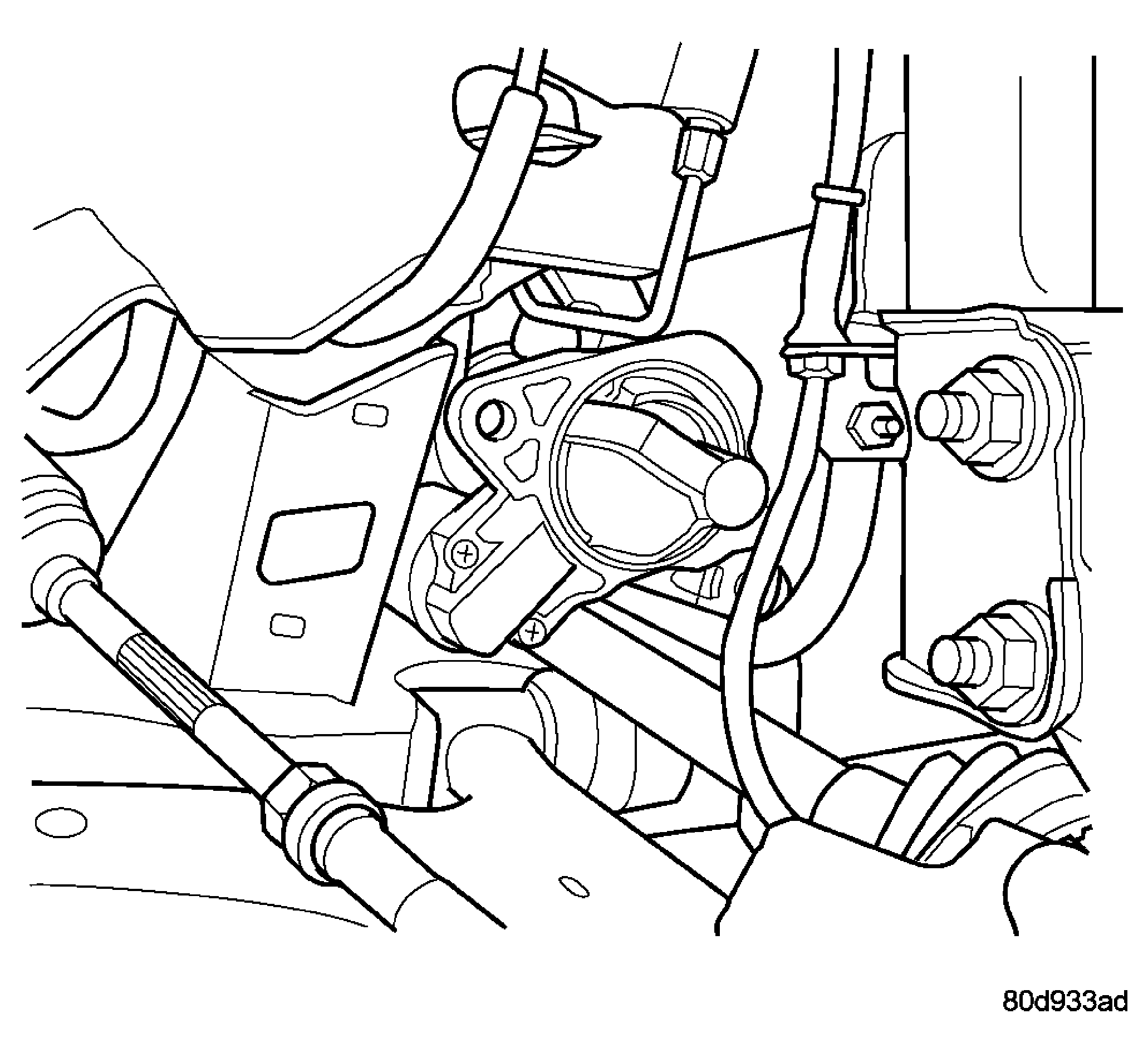

Fig 3: View Of Starter Solenoid Electrical Connectors
Courtesy of DAIMLERCHRYSLER CORP.

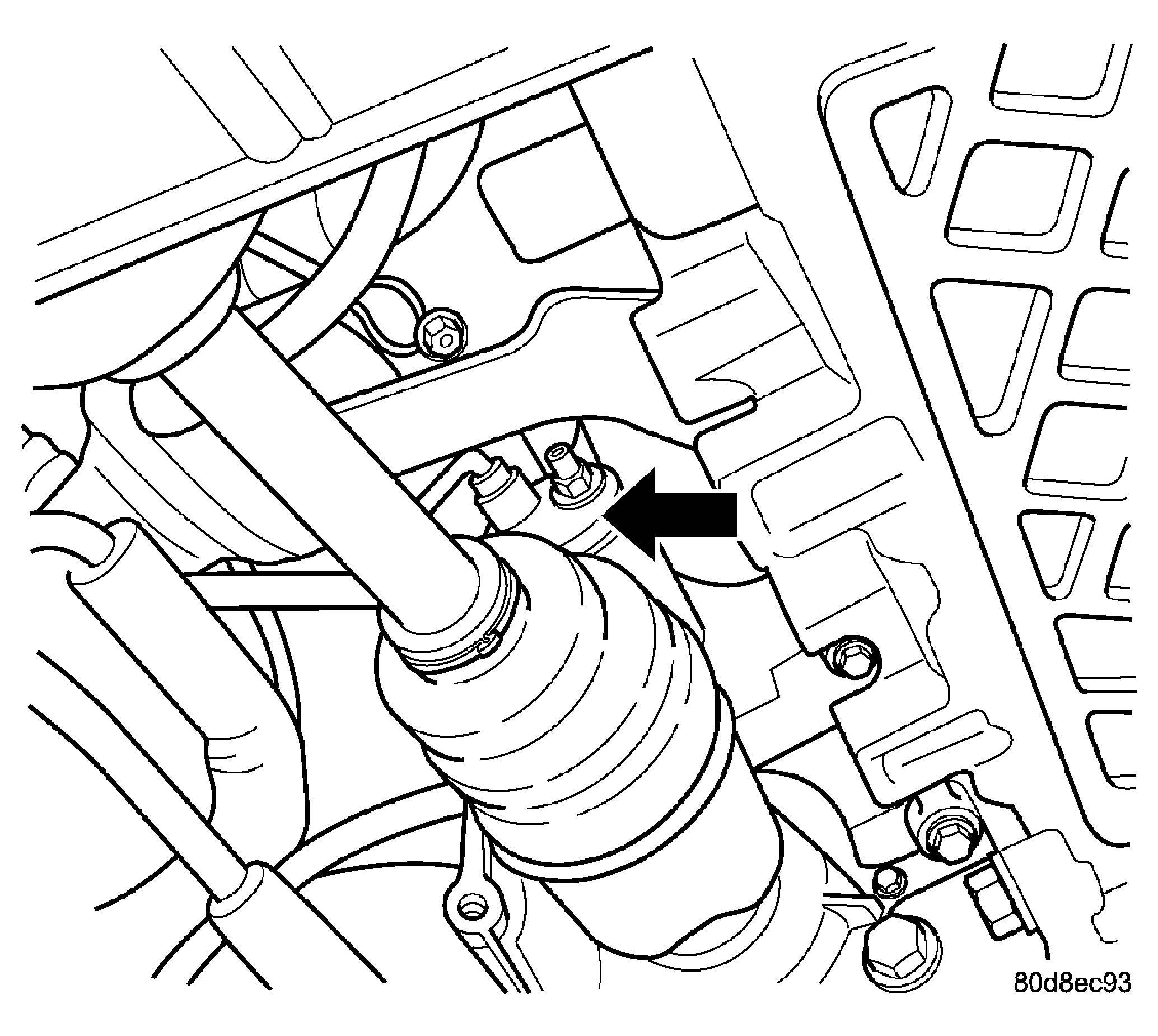

Fig 4: View Of Electrical Connections
Courtesy of DAIMLERCHRYSLER CORP.
Connect the battery cable and solenoid electrical connectors. See Fig 3 and Fig 4 to the starter.

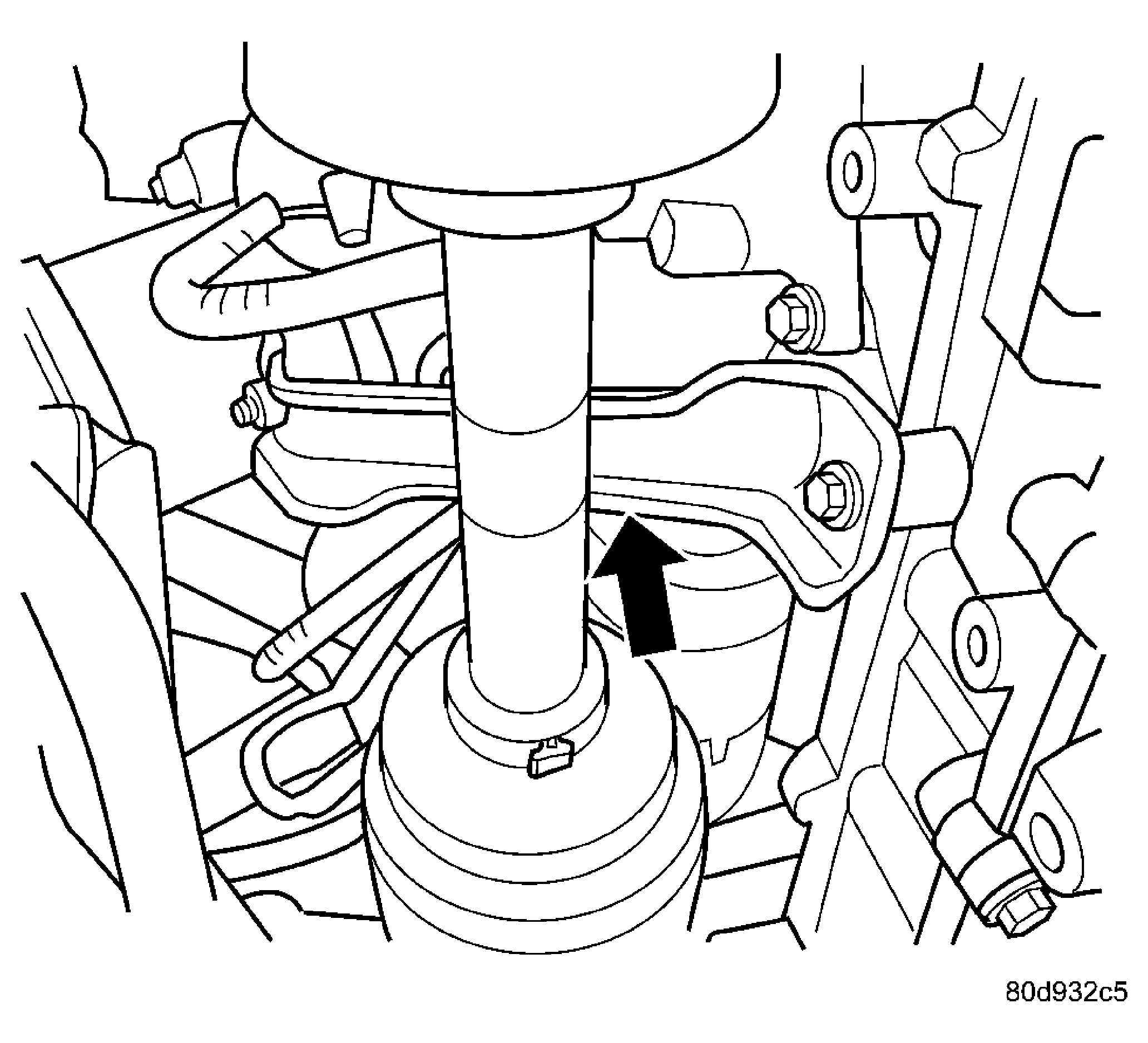

Fig 5: Identifying Exhaust Bracket
Courtesy of DAIMLERCHRYSLER CORP.
Install the exhaust manifold support bracket. See Fig 5.
Lower vehicle.
Connect the negative battery cable.
Install air cleaner cover.
