Sensor-Ambient Temperature: Removal

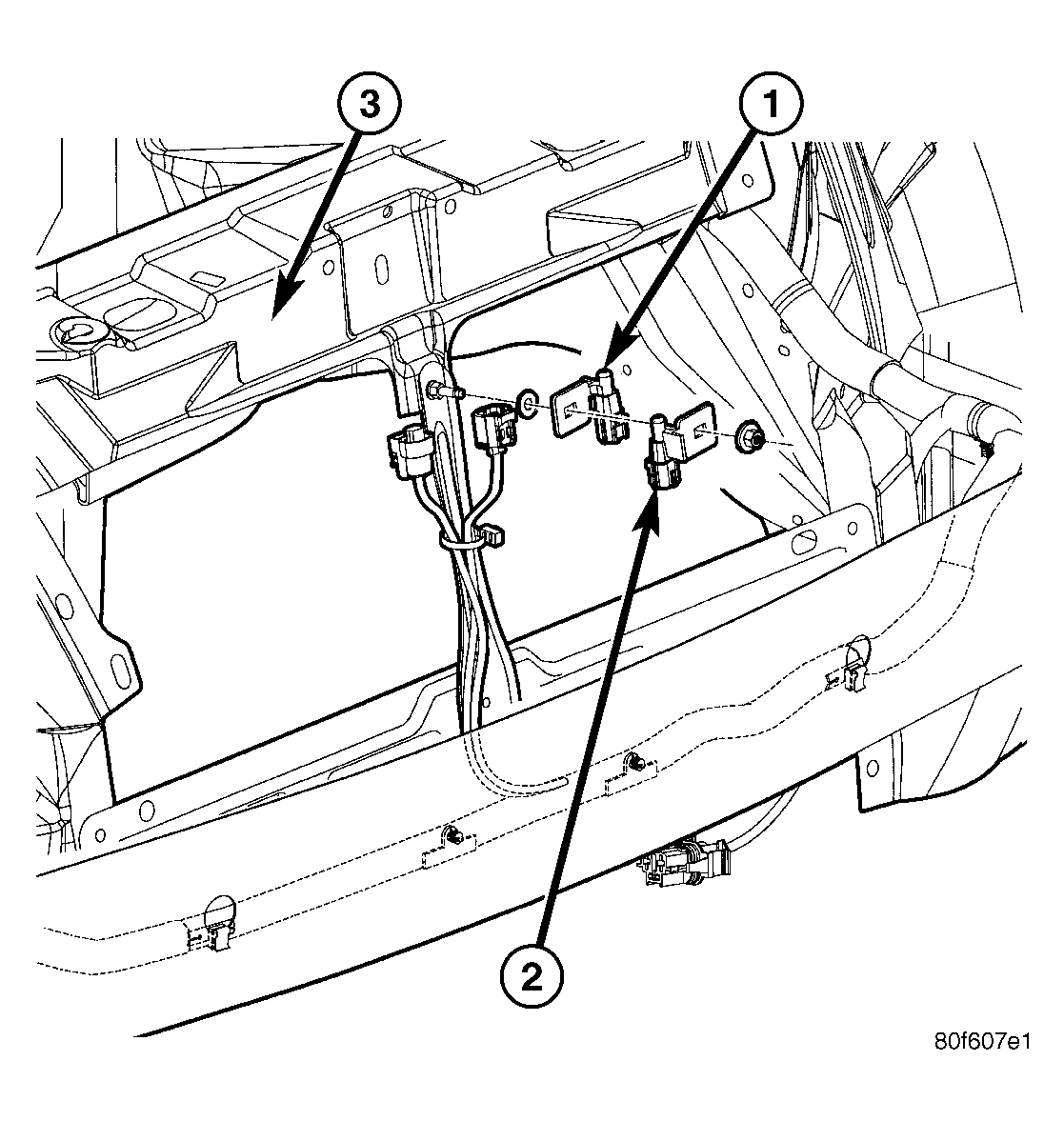

Fig 1: Locating Sensor-Ambient Temperature
GC0043634Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Working through the hole in the top center of the grille, remove the retaining nut securing the ambient temperature sensor (2) to the radiator support (3).
  3. Disconnect the ambient air temperature sensor electrical connector and remove the sensor from the vehicle.
