Sensor-Ambient Temperature: Installation

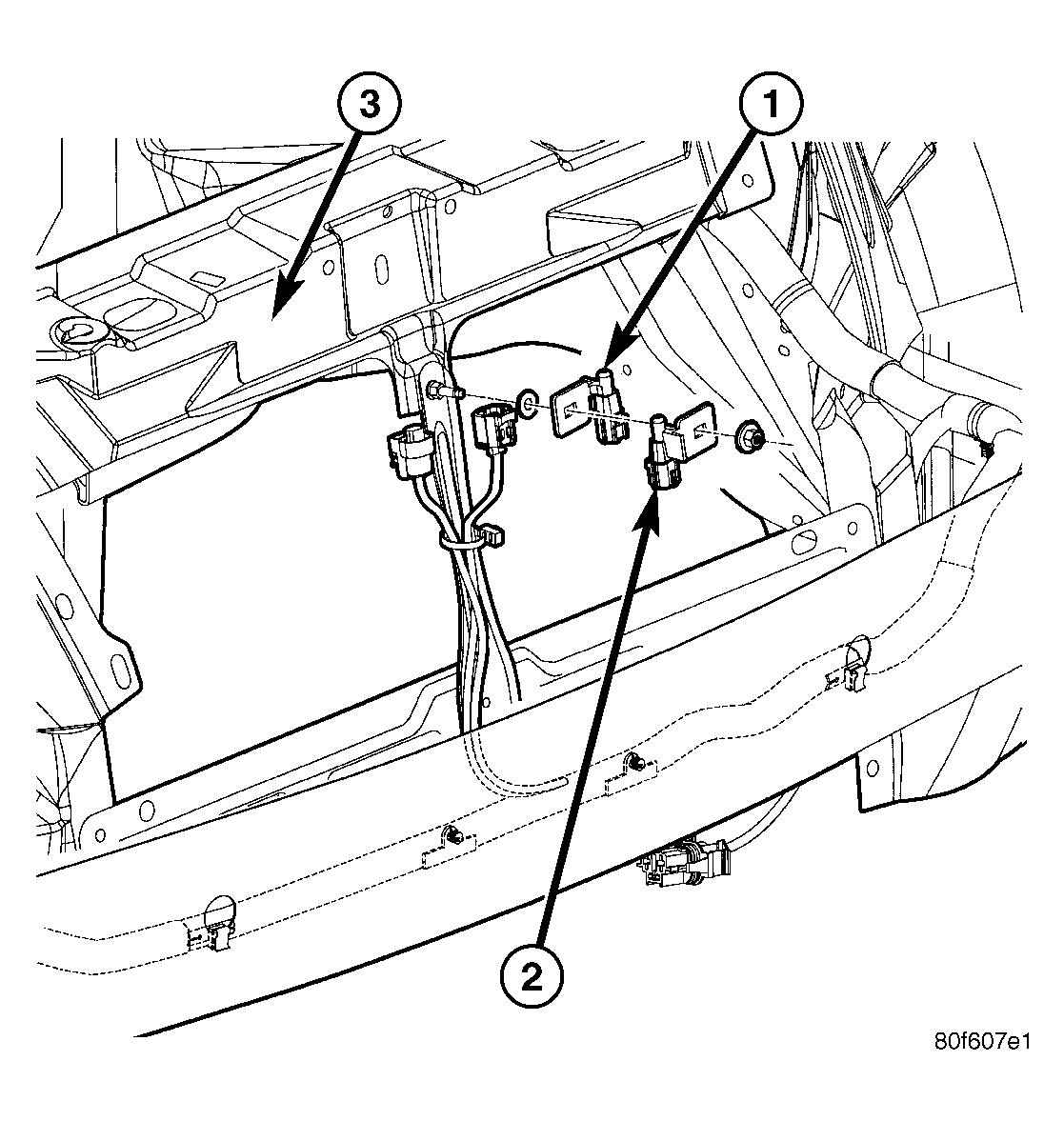

Fig 1: Locating Sensor-Ambient Temperature

Courtesy of DAIMLERCHRYSLER CORP.

1. Install the nut securing the ambient temperature sensor (2) to the radiator support (3).
2. Connect the electrical connector.
3. Connect the battery negative cable.
4. Close hood.
