Power Window Switch: Installation: Front

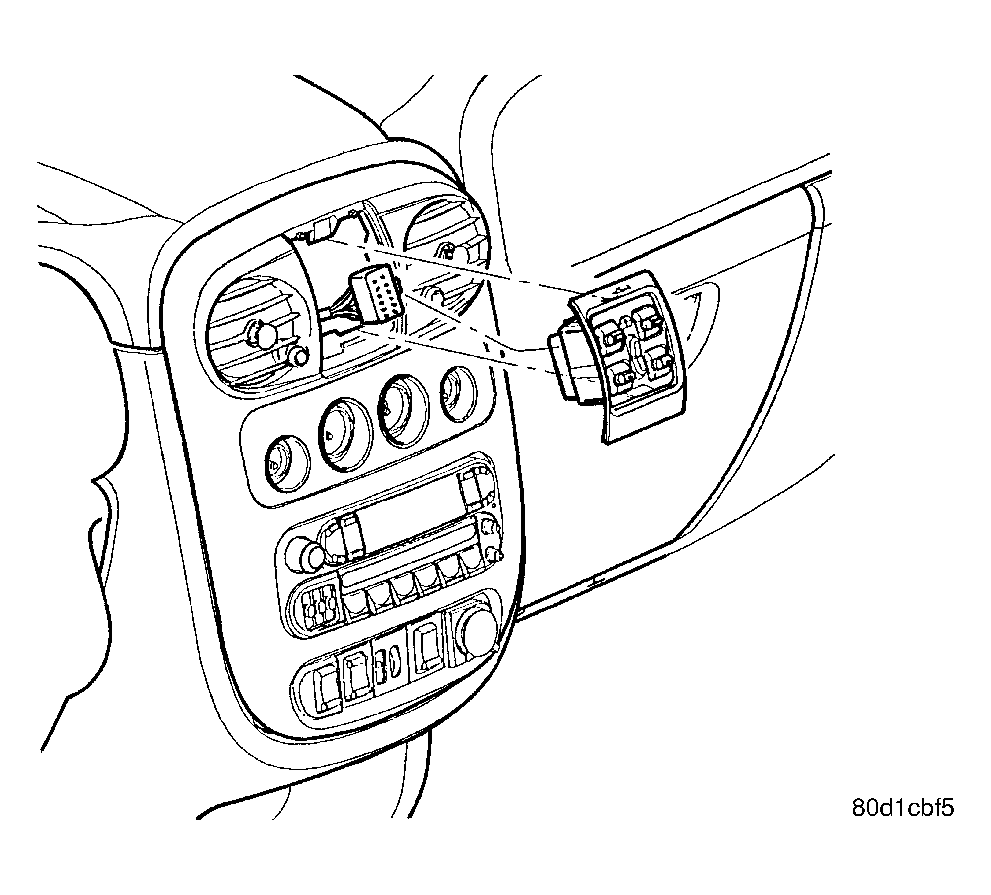

Fig 1: Front Window Switch
GC0022983Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect electrical harness connector to switch.
  2. Align switch and press into position.
  3. Connect battery negative cable.
