P1793 - Engine Torque Reduction: Notes

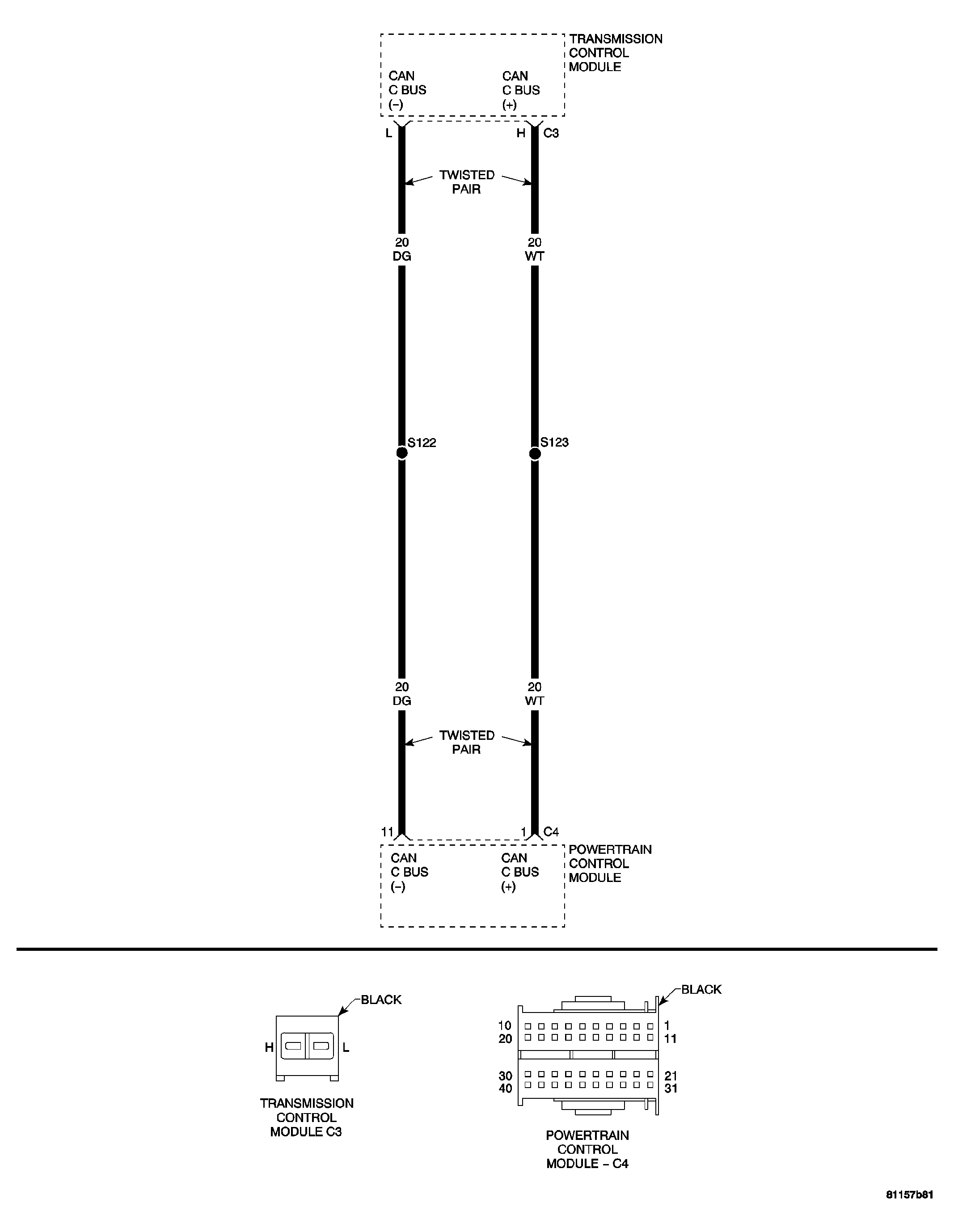

Fig 1: CAN C Bus Between Transmission Control Module & Powertrain Control Module Circuit Schematic

GC0032463

Courtesy of DAIMLERCHRYSLER CORP.
