P0710 - Trans Temp Sensor Shorted: Notes

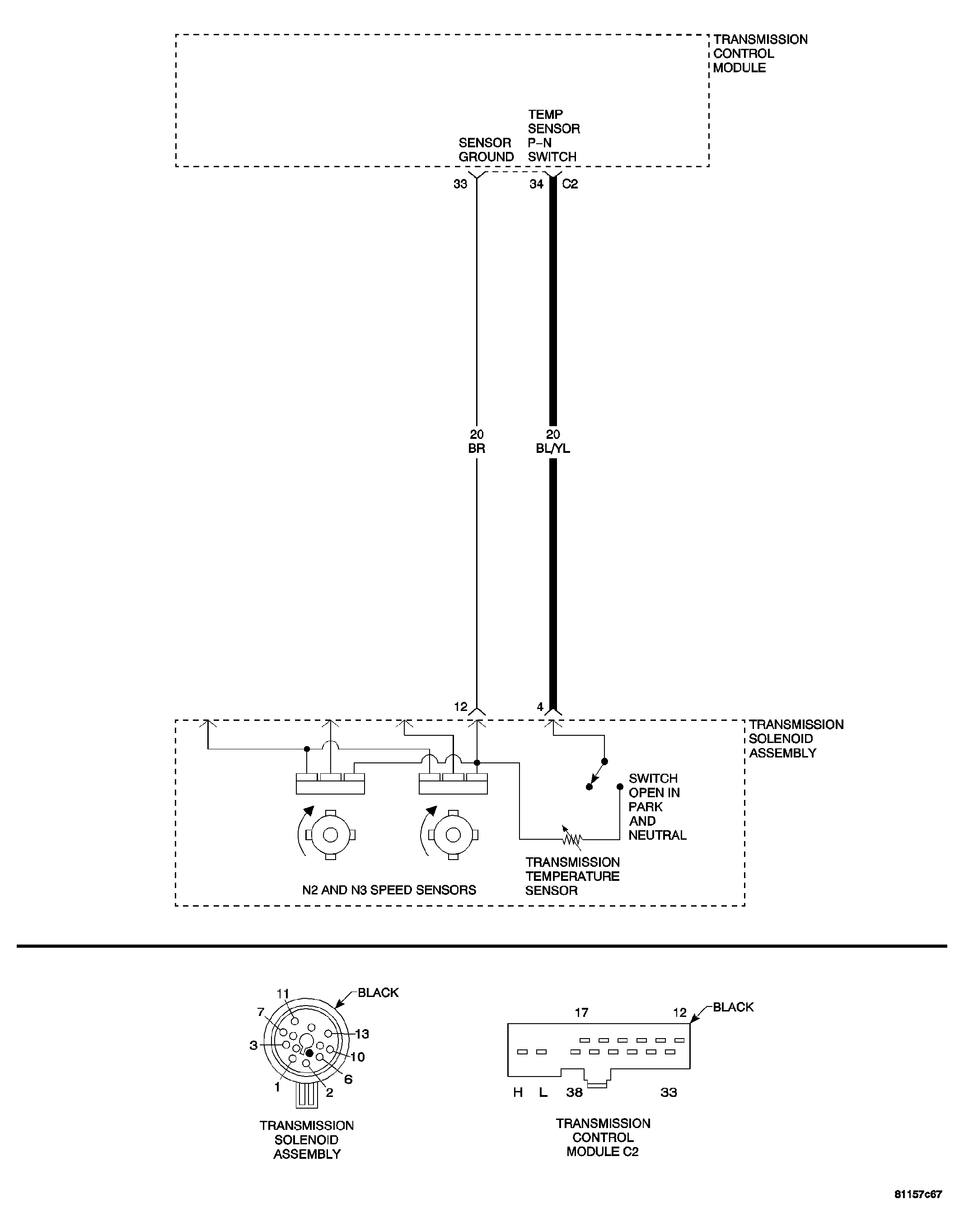

Fig 1: Transmission Temperature Sensor Circuit Diagram

GC0032479

Courtesy of DAIMLERCHRYSLER CORP.
