P0600 - SLA Can Message Incorrect: Notes

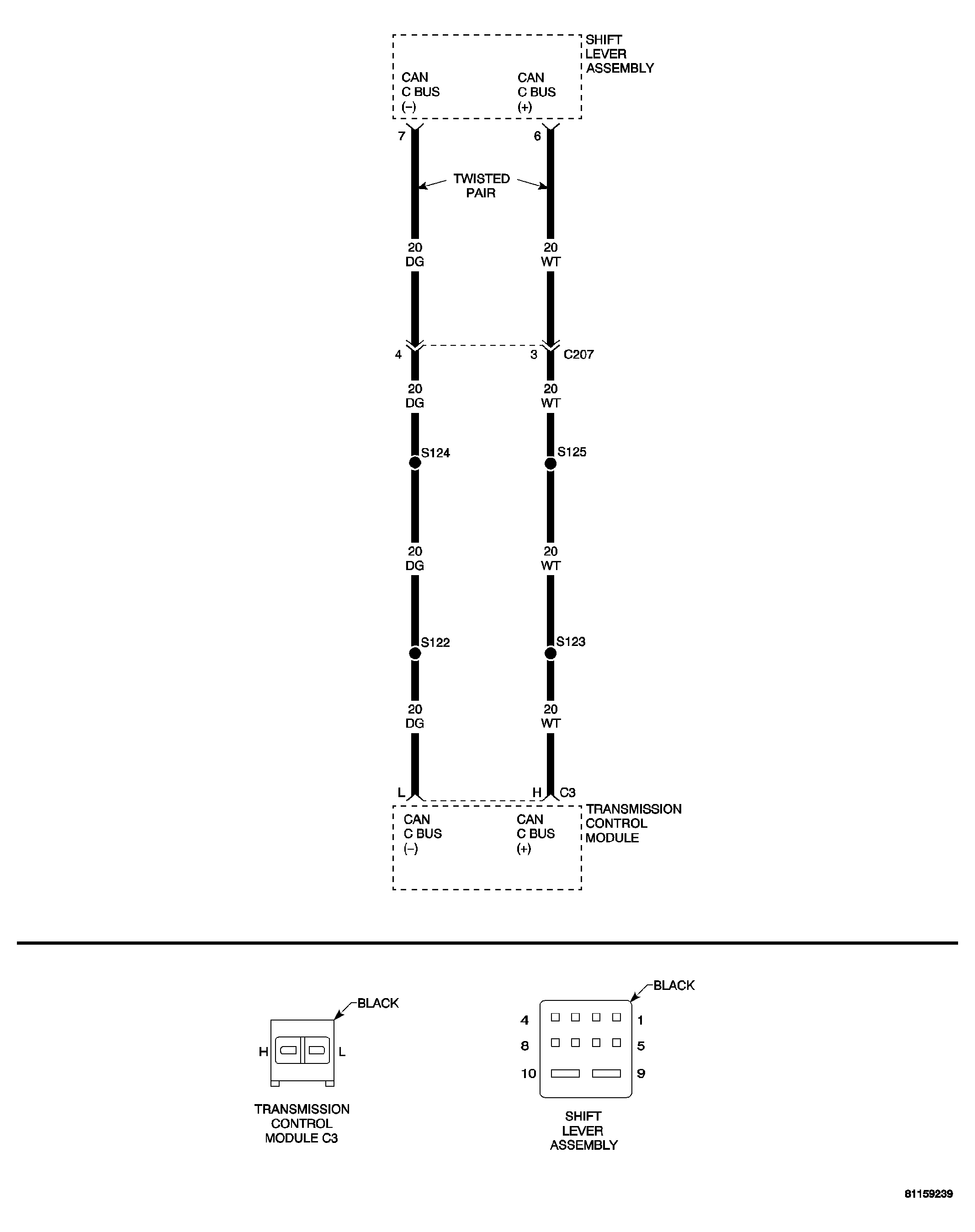

Fig 1: CAN C Bus Between Transmission Control Module & Shift Lever Assembly Circuit Schematic

GC0032470

Courtesy of DAIMLERCHRYSLER CORP.
