DTC 1876-00: Incorrect Can Message From Abs: Notes

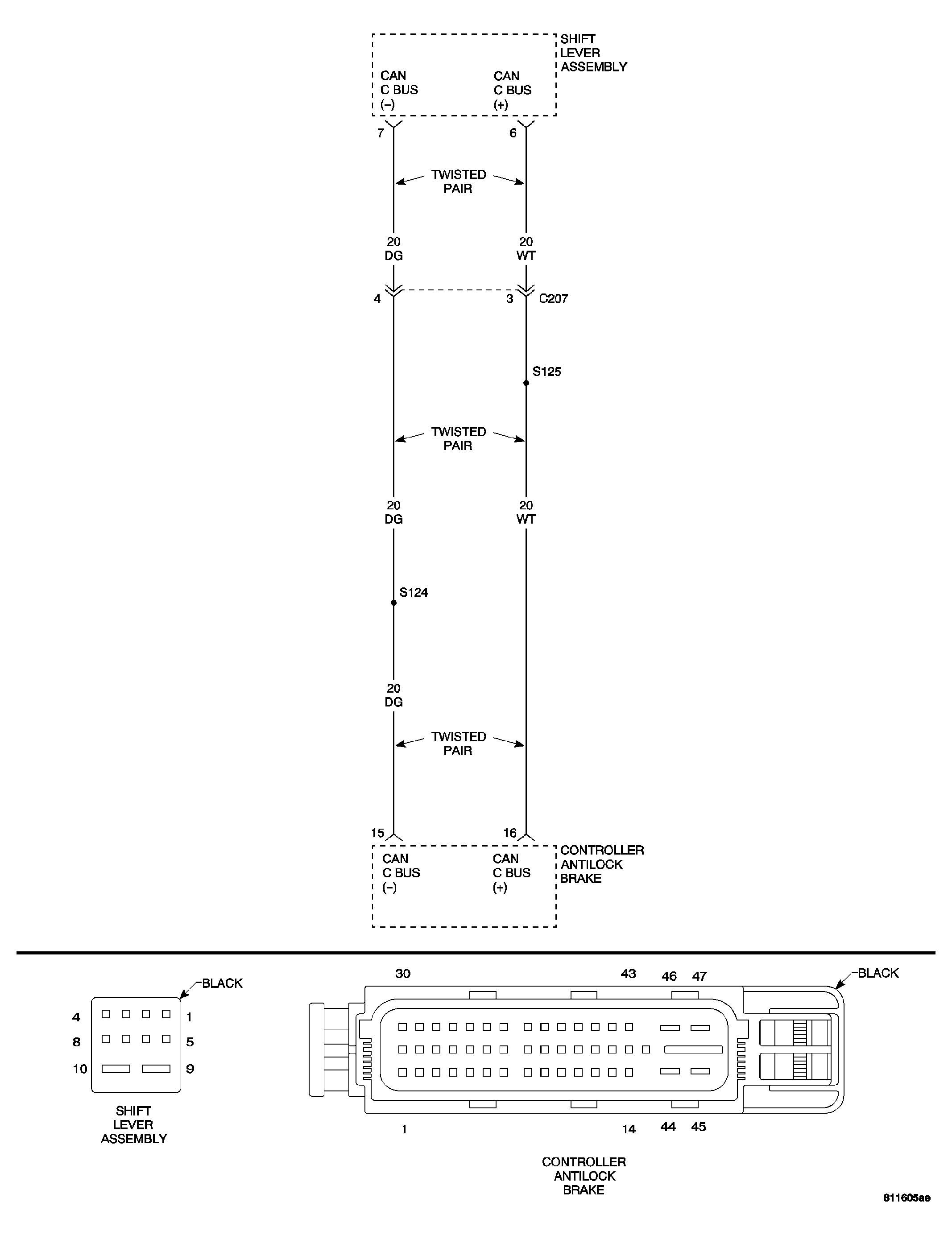

Fig 1: CAN C Bus Between Shift Lever Assembly & Antilock Brake Controller Circuit Schematic

Courtesy of DAIMLERCHRYSLER CORP.

For a complete Shift Lever Assembly Circuit Diagram, (Refer to TRANSMISSION/TRANSAXLE/AUTOMATIC - NAG1 - SCHEMATICS AND DIAGRAMS)  .
