Engine & Automatic Transmission Cooling System: Engine: Radiator: Removal

Fig 1: Removing/Installing Radiator Fan

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect the negative battery cable.
Remove the radiator fan. (Refer to COOLING/ENGINE/RADIATOR FAN - REMOVAL) .
Drain the cooling system. (Refer to COOLING/ENGINE/COOLANT - STANDARD PROCEDURE) .
Remove the air cleaner inlet tubes.

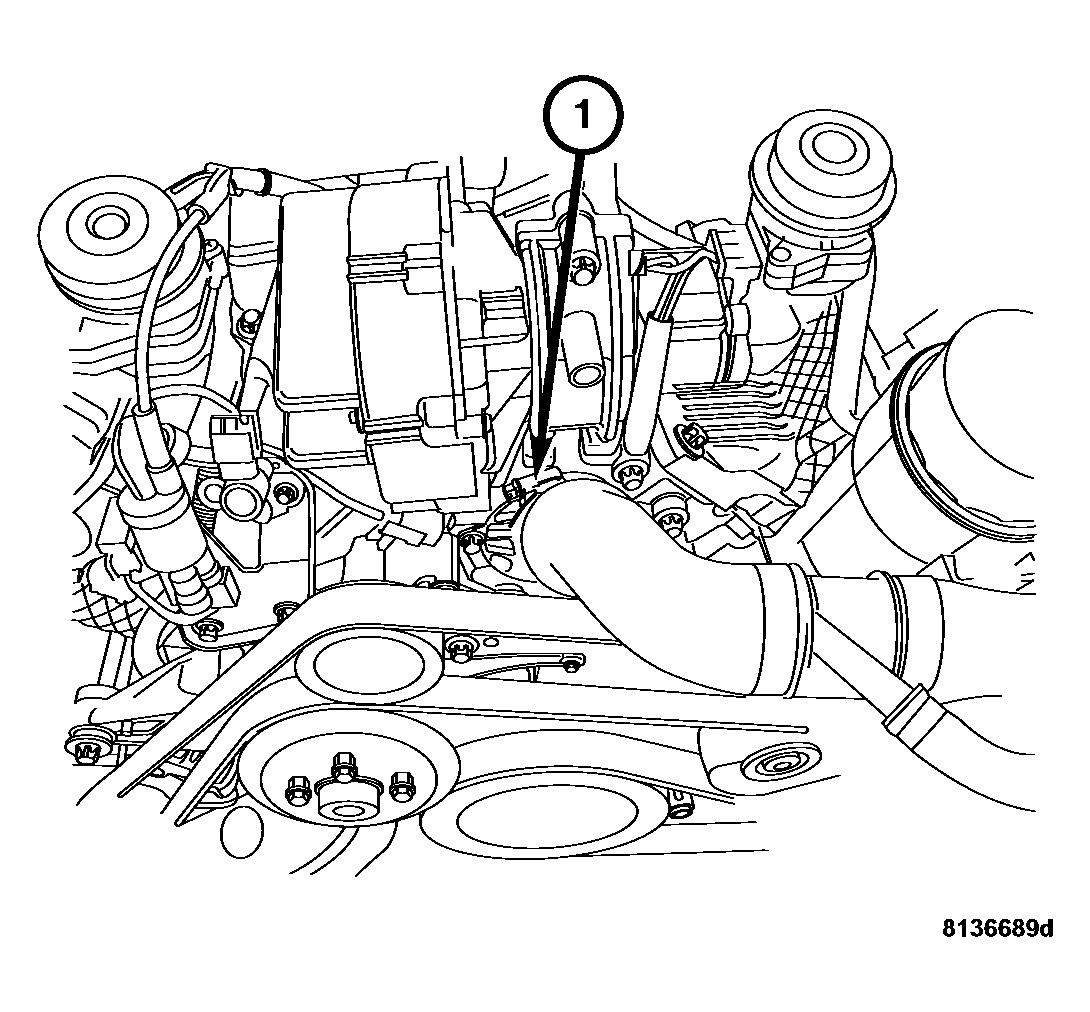

Fig 2: Disconnecting/Connecting Upper Radiator Hose
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the upper radiator hose (1).

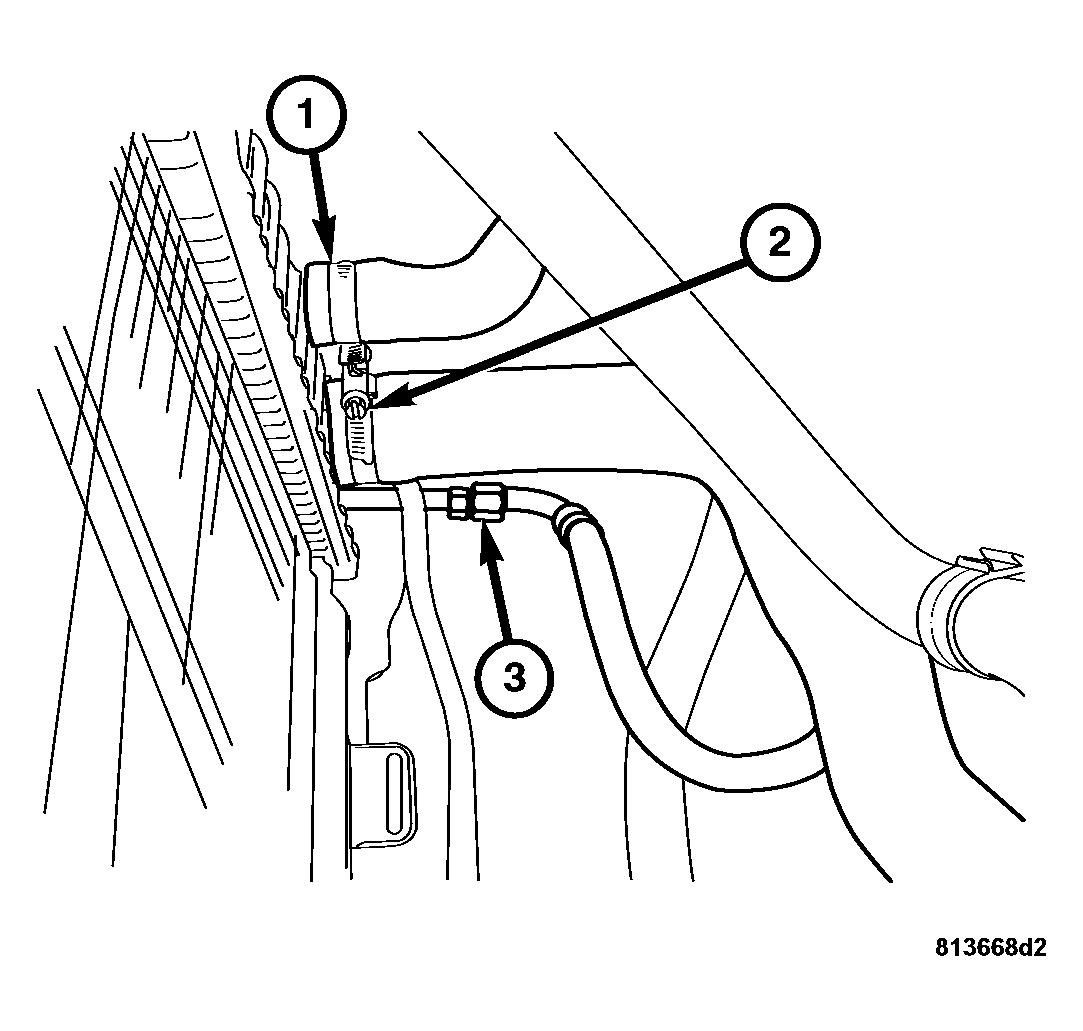

Fig 3: Identifying Coolant Recovery Reservoir Hose, Lower Radiator Hose & Transmission Cooler Line
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the lower radiator hose (2).
Disconnect the coolant recovery reservoir hose (1).
Disconnect the transmission cooler line (3) located on the right side of the radiator (automatic transmission only). (Refer to COOLING/TRANSMISSION/TRANS COOLER LINES - REMOVAL) .

Fig 4: Identifying Transmission Cooler Line
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the transmission cooler line (1) located in the middle front of the vehicle (automatic transmission only).

Fig 5: Removing/Installing Radiator Retaining Clamps
Courtesy of DAIMLERCHRYSLER CORP.

Using a suitable tool, grasp the radiator hold down clamps (2) and pull up to remove the clamps from the mounting holes.

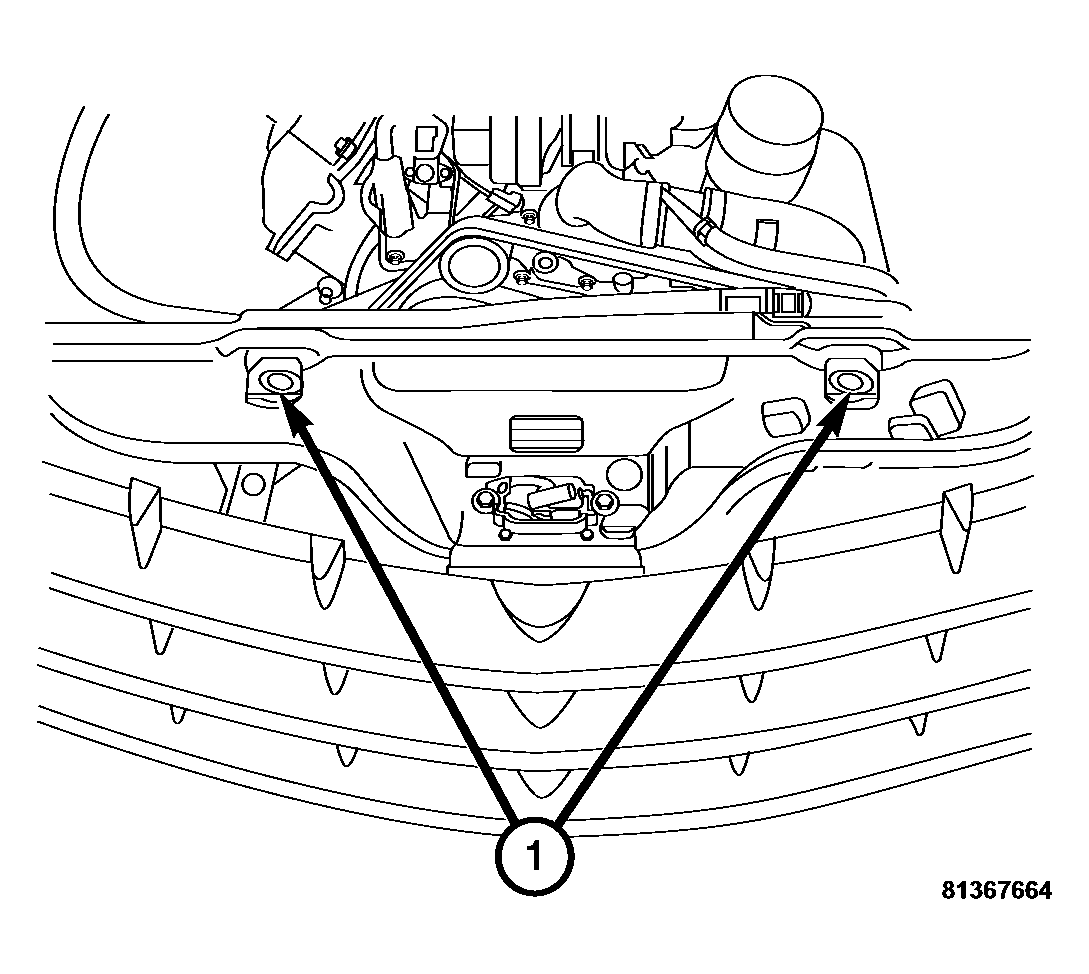

Fig 6: Identifying Condenser Retaining Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Remove the condenser retaining bolts (1) from the radiator support.
Carefully lean the radiator back toward the engine.
Gently lift and remove the radiator from the vehicle.
