Engine & Automatic Transmission Cooling System: Engine: Radiator: Description

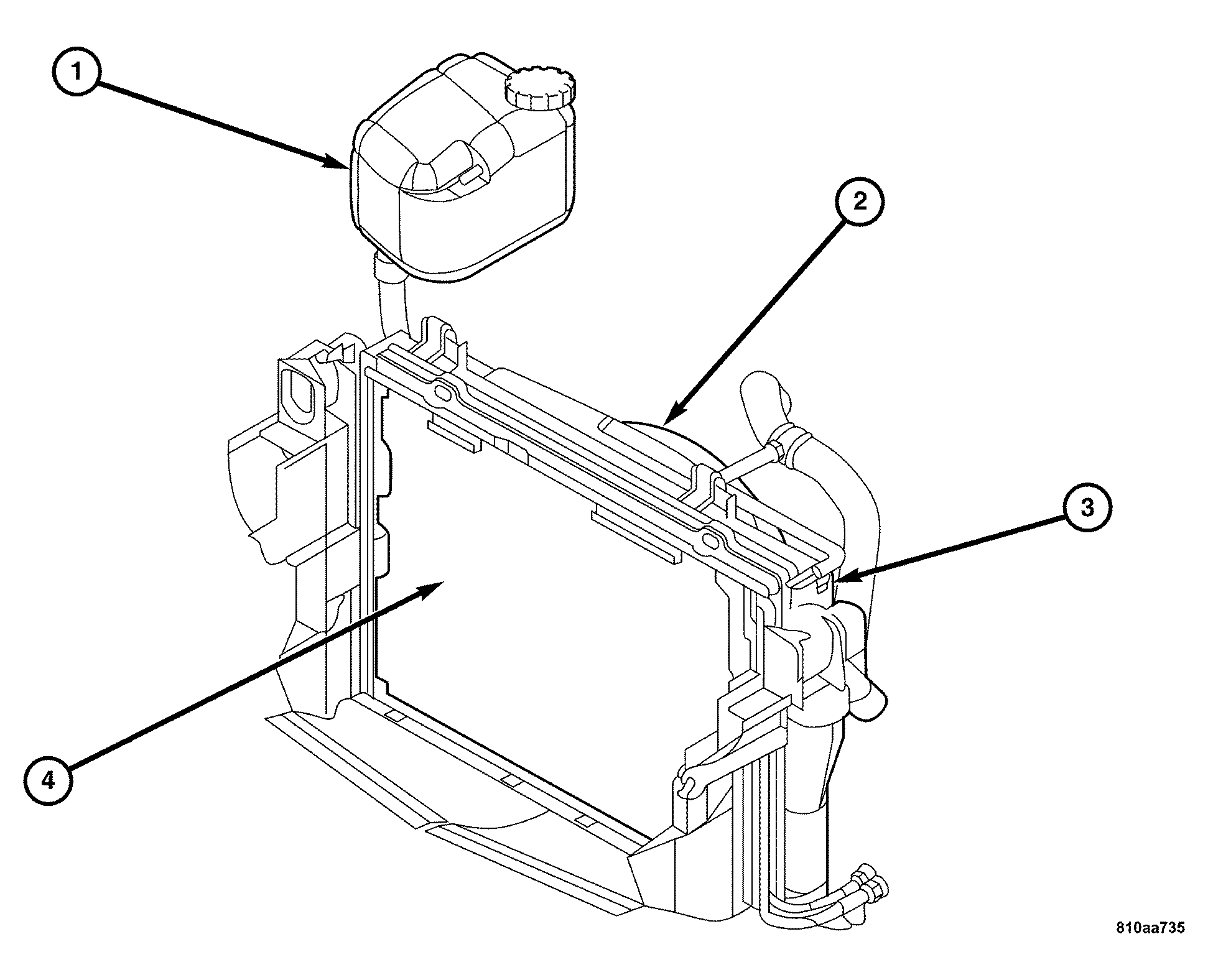

Fig 1: Identifying Cooling System Components

Courtesy of DAIMLERCHRYSLER CORP.

The Crossfire has a cross flow type radiator (4). The main radiator core is made of aluminum, and the side tanks are made of plastic (3).

NOTE: Handle the radiator with care, plastic tanks while stronger than brass, are subject to damage.
