Radiator Fan: Installation

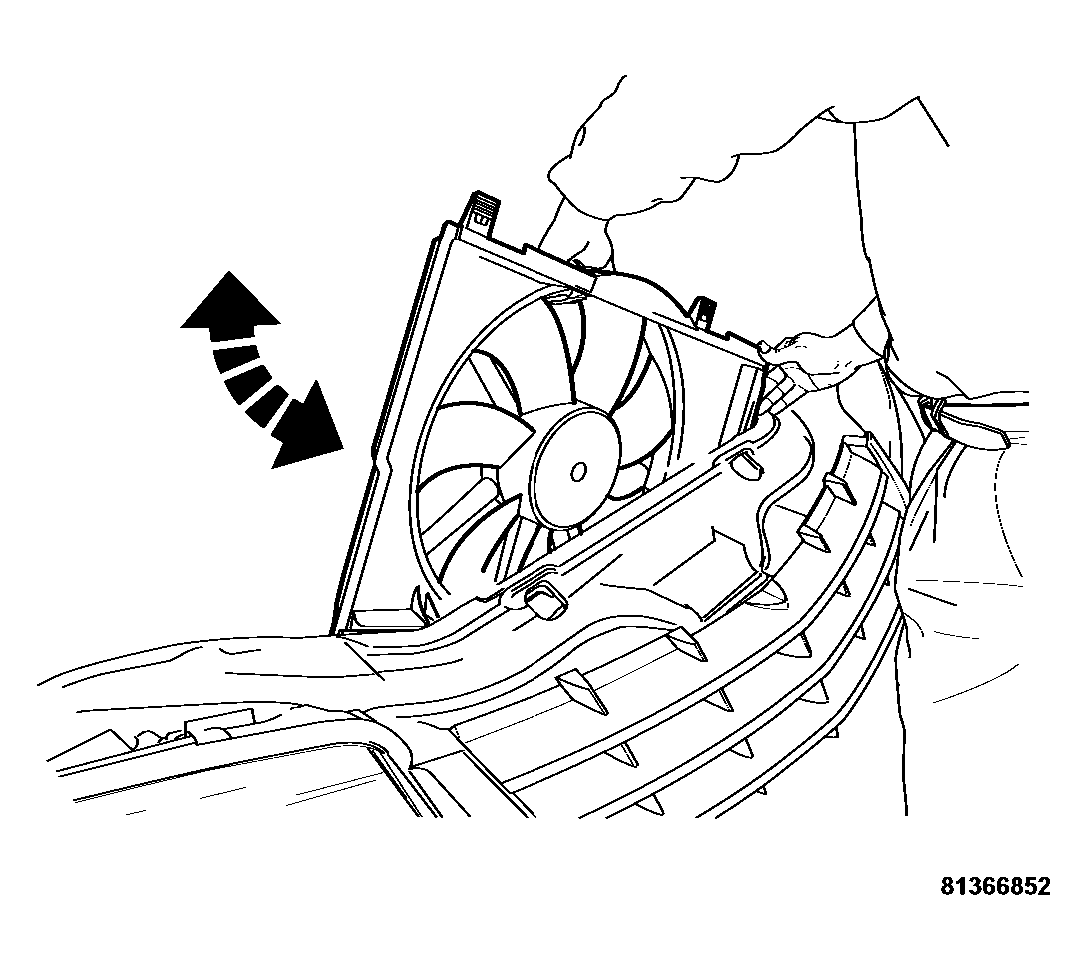

Fig 1: Removing/Installing Radiator Fan
GC0033979Courtesy of DAIMLERCHRYSLER CORP.
NOTE: Lightly lubricate the two locating studs on the bottom of the radiator fan prior to installation.
  1. Gently lower the radiator fan into the vehicle.
  2. Carefully pry the upper radiator hose and return hoses away from the cooling fan.

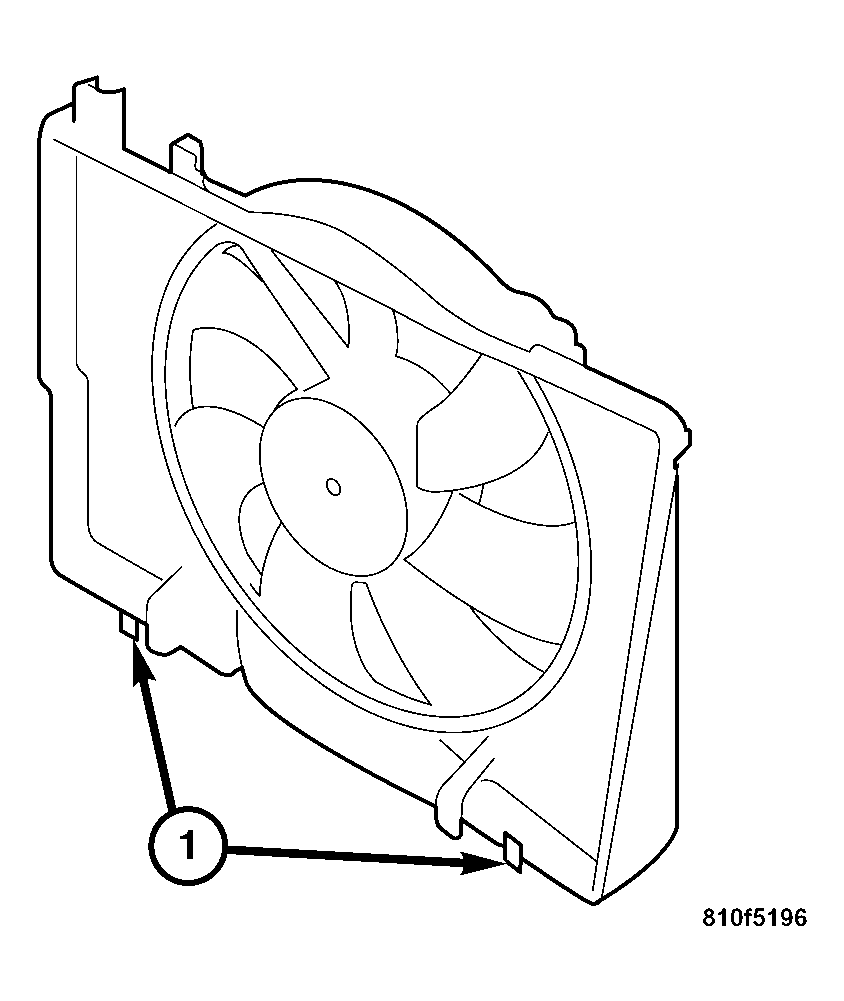

    Fig 2: Identifying Radiator Fan Locating Studs
    GC0033980Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the radiator fan locating studs (1) into the lower rubber mounts.

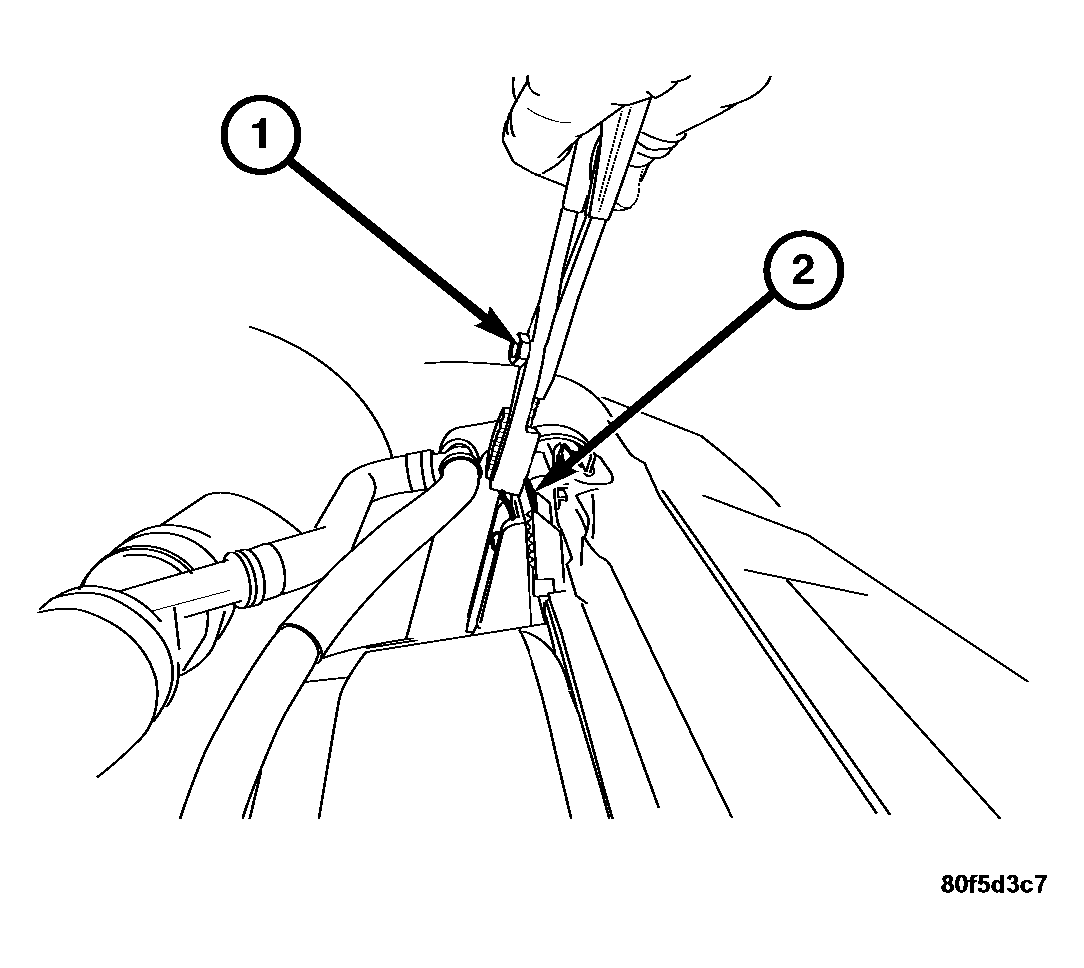

    Fig 3: Removing/Installing Radiator Retaining Clamps
    GC0033977Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the radiator fan hold down clamps (1).

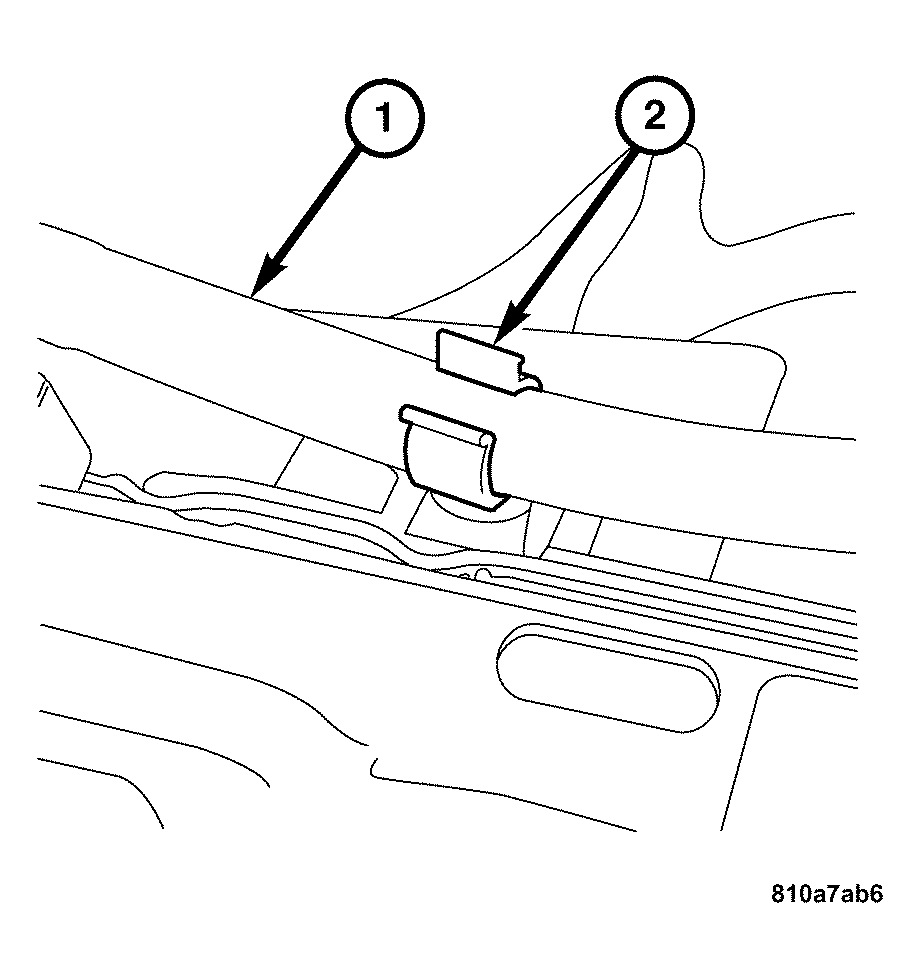

    Fig 4: Removing/Installing Coolant Return Hose
    GC0033978Courtesy of DAIMLERCHRYSLER CORP.
  5. Route the coolant return hose (1) through the bracket (2) on the radiator fan.

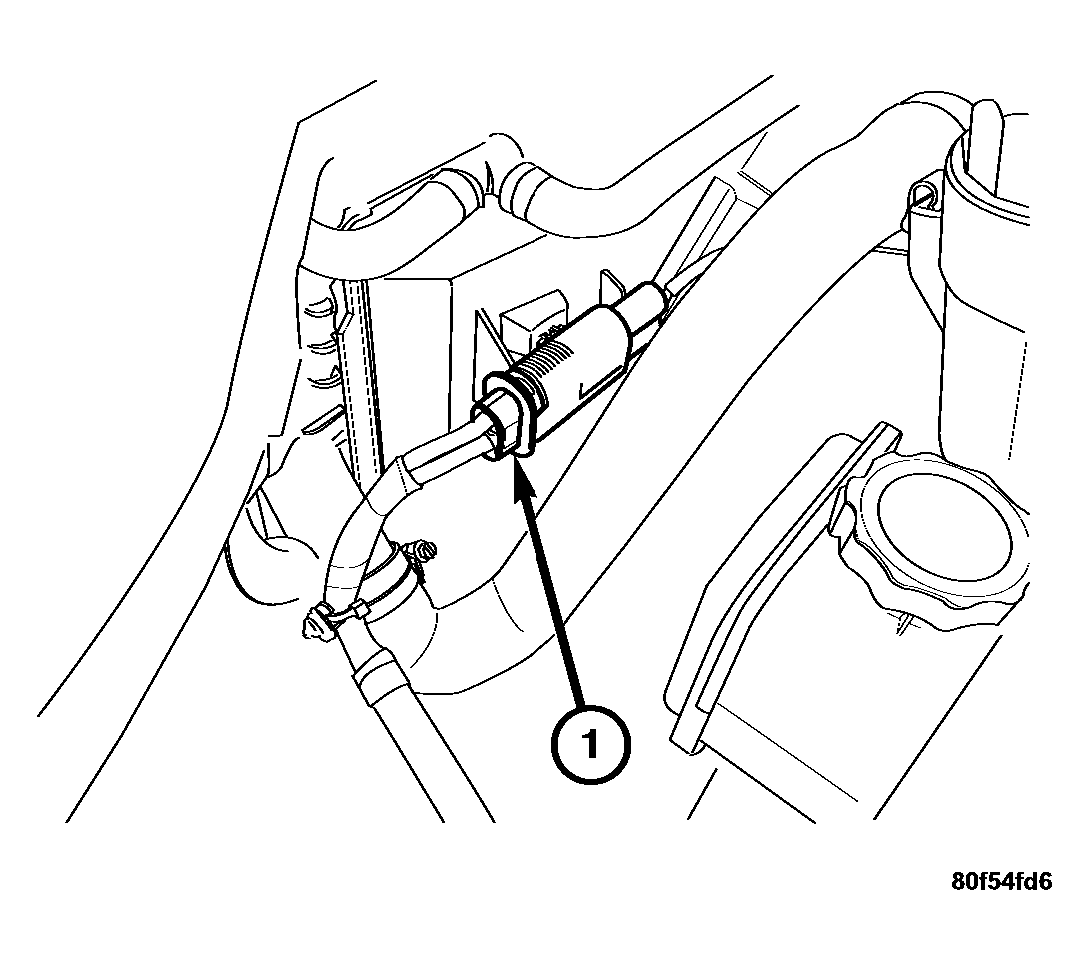

    Fig 5: Identifying Radiator Fan Harness Connector
    GC0033976Courtesy of DAIMLERCHRYSLER CORP.
  6. Connect the radiator fan harness connector (1).
  7. Connect the negative battery cable.
