Installation - SRT

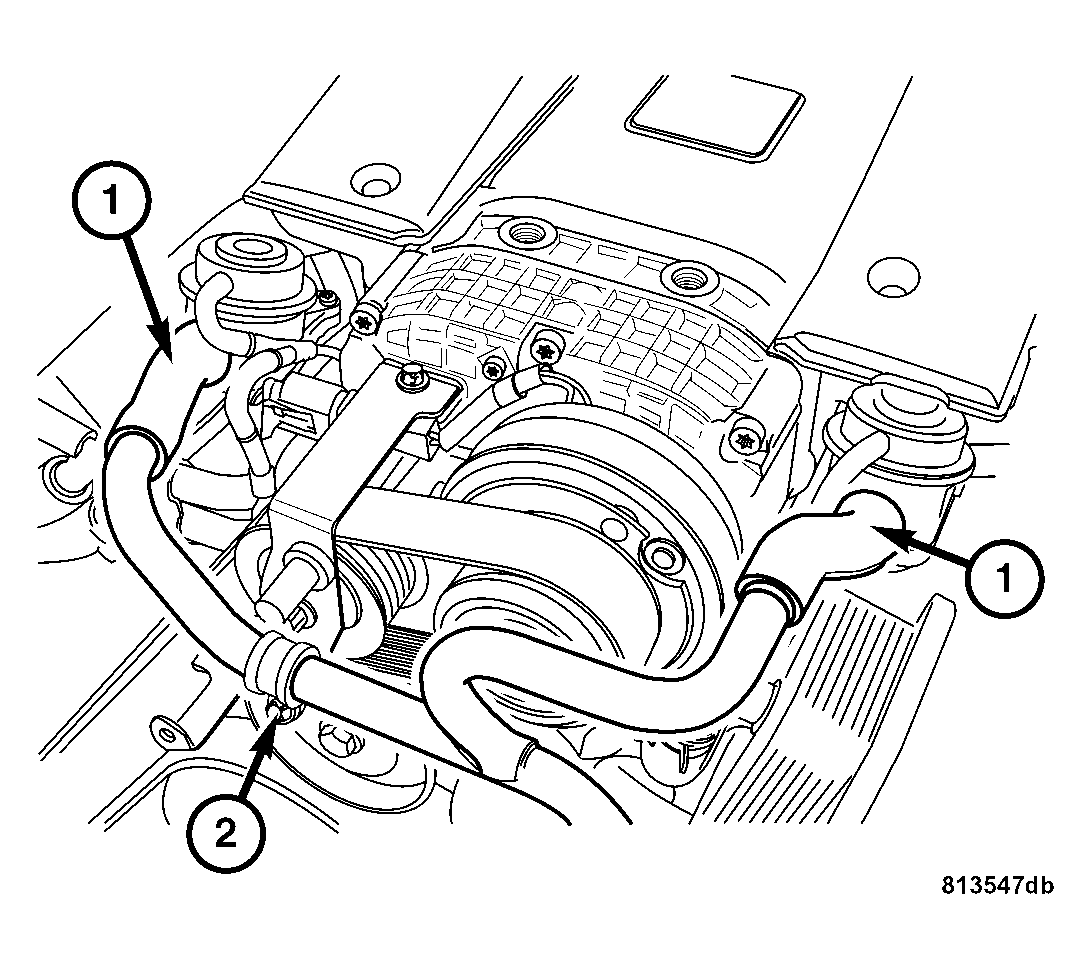

Fig 1: Identifying Air Pump Tube Assembly & Air Pump Tube Retaining Bolts
GC0033628Courtesy of DAIMLERCHRYSLER CORP.
  1. Install the air pump tube assembly (1) to the engine.
  2. Connect the air pump tubes (1) to the air pump and the switchover valves.
  3. Install the air pump tube assembly retaining bolts (2). Tighten the bolts to 10 N.m (89 in. lbs.).
  4. Install the engine cover. Realign the engine cover retaining clips to the mounting brackets and push down firmly to connect the engine cover to the mounting brackets.
