Service Information: Installation

  1. Position the transmission on the jack.
  2. Install the transmission to the rear of the engine block. Align the transmission dowels to the engine block dowel holes.

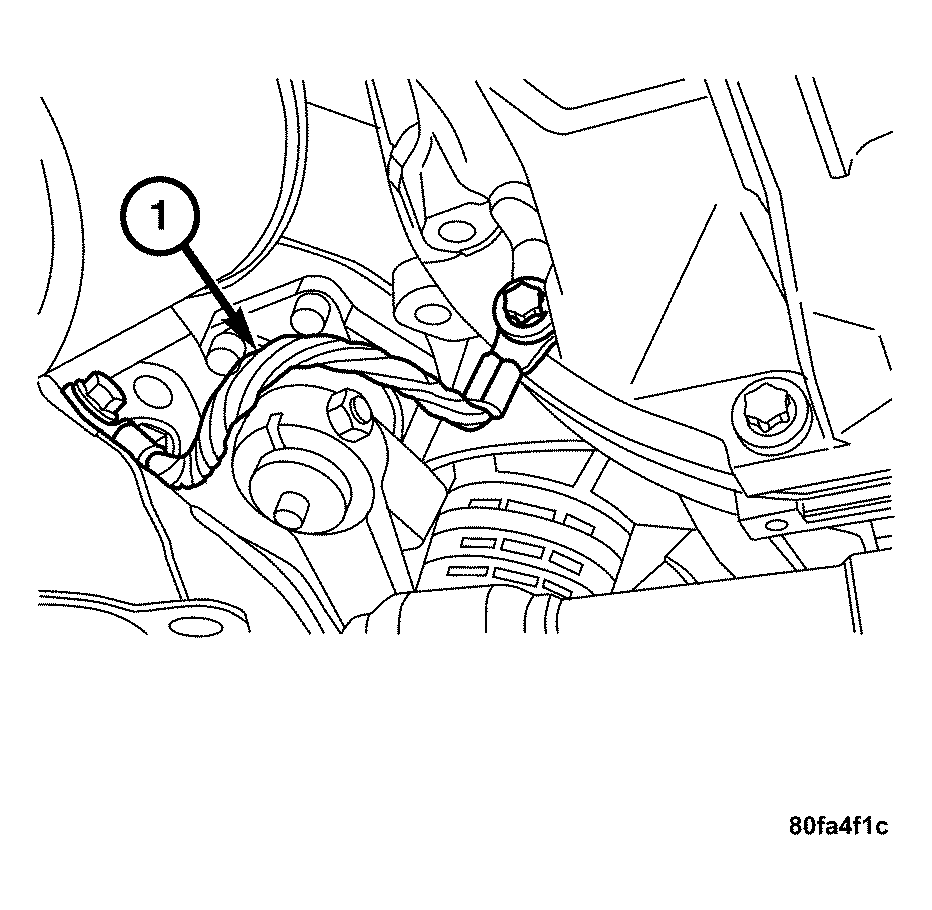

    Fig 1: Removing/Installing Ground Cable
    GC0032880Courtesy of DAIMLERCHRYSLER CORP.
  3. Connect the ground cable (1) to the transmission. Tighten the bolt to 40 N.m (30 ft. lbs.).
  4. Install the transmission to engine block retaining bolts. Tighten the bolts to 40 N.m (30 ft. lbs.).
  5. Raise the rear of the transmission.

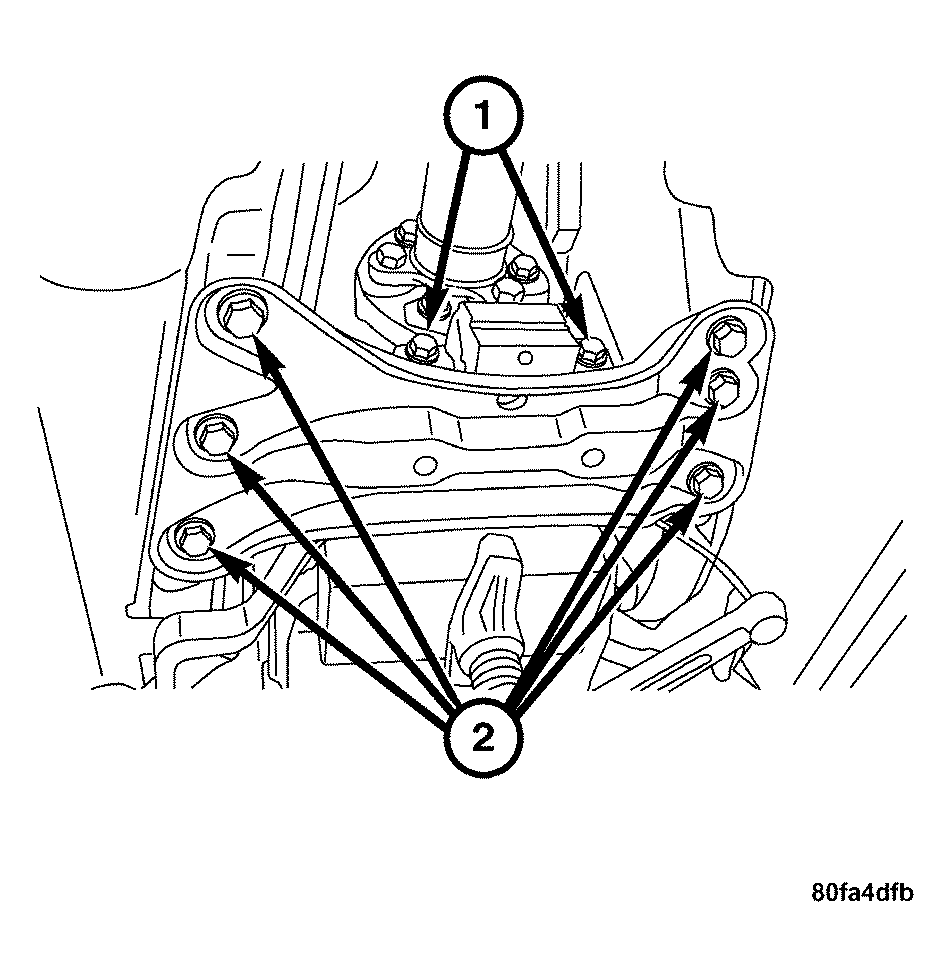

    Fig 2: Removing/Installing Rear Transmission Mount Bolts & Rear Crossmember Bolts
    GC0032878Courtesy of DAIMLERCHRYSLER CORP.
  6. Install the rear crossmember together with the transmission mount and install the bolts. Tighten the transmission mount bolts (1) to the transmission to 30 N.m (22 ft. lbs.). Tighten the rear crossmember retaining bolts (2) to the body to 40 N.m (30 ft. lbs.).

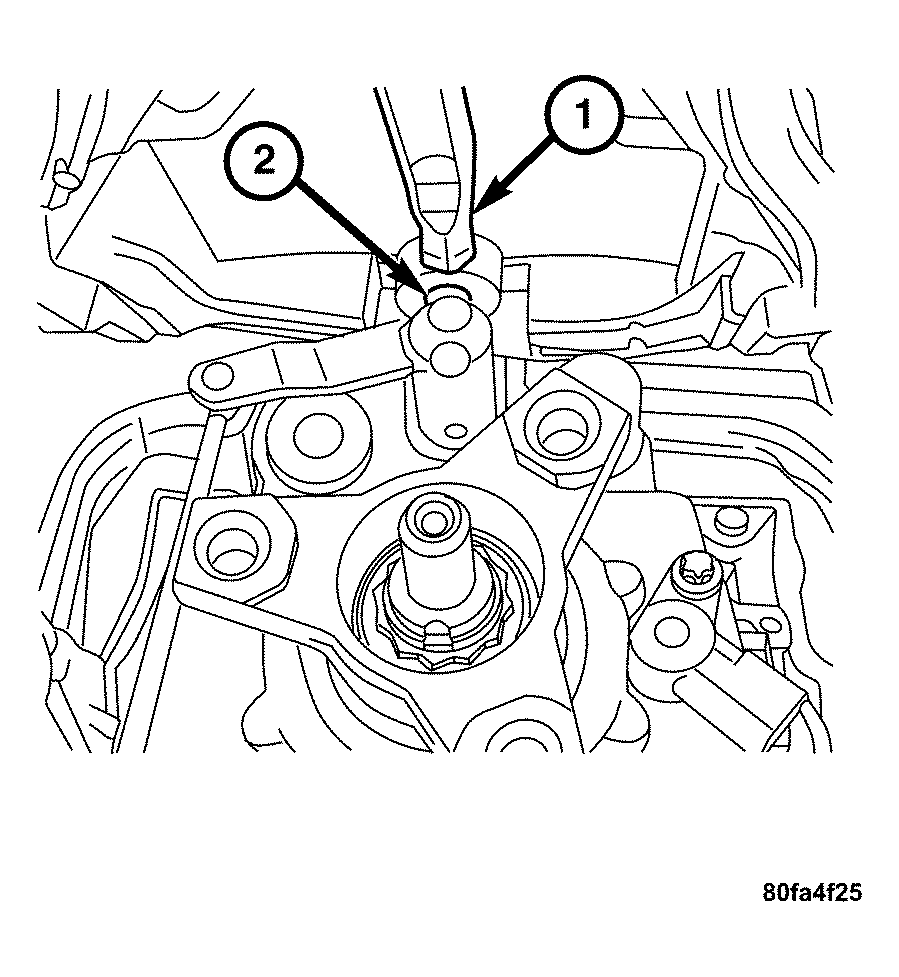

    Fig 3: Removing/Installing Shift Rod From Ball Stud
    GC0032883Courtesy of DAIMLERCHRYSLER CORP.
  7. Connect the shift rod (1) to the transmission ball stud (2).

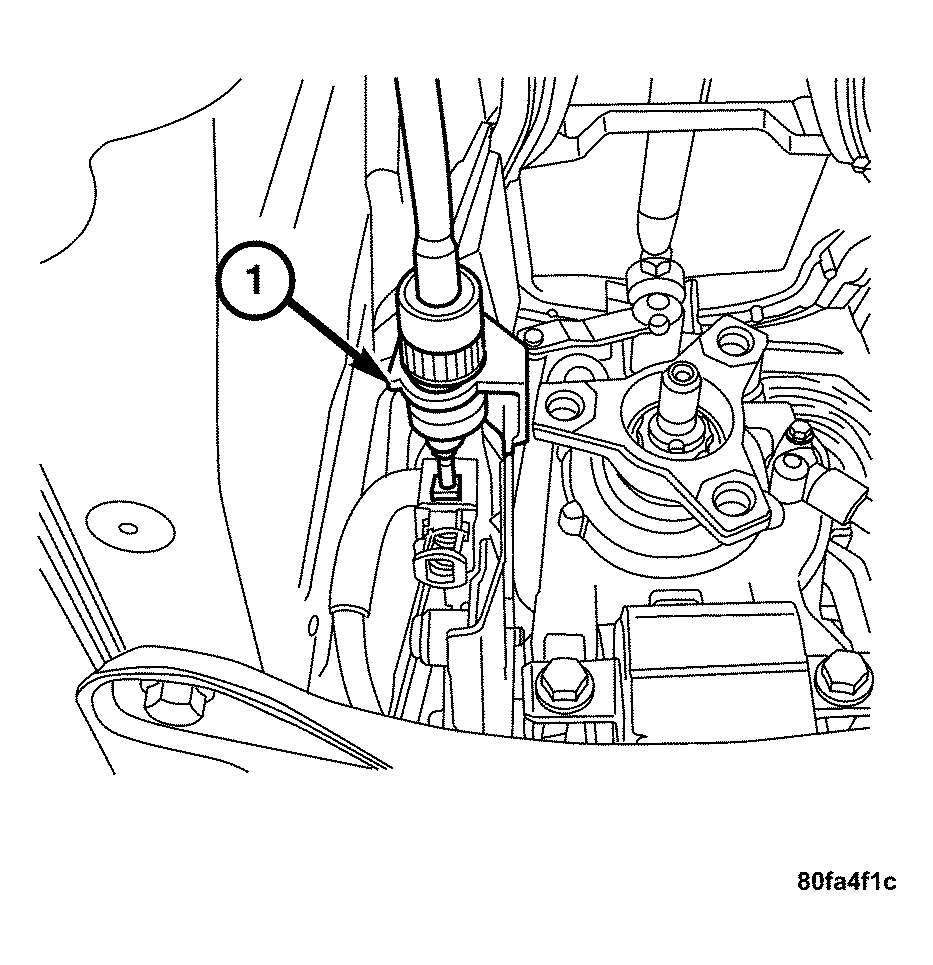

    Fig 4: Removing/Installing Reverse Lockout Cable
    GC0032882Courtesy of DAIMLERCHRYSLER CORP.
  8. Connect the reverse lockout cable (1) and turn the nut clockwise to lock in place. Connect the cable end to the ball stud.

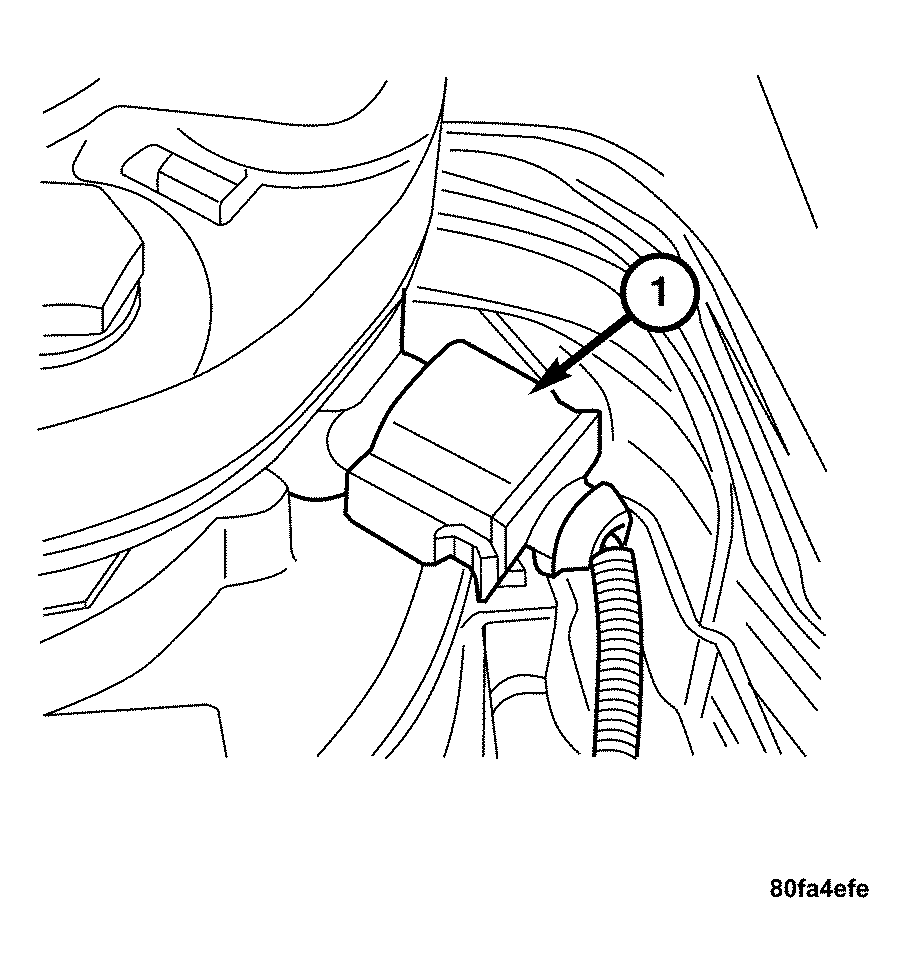

    Fig 5: Removing/Installing Backup Lamp Switch Harness Connector
    GC0032879Courtesy of DAIMLERCHRYSLER CORP.
  9. Connect the backup lamp switch harness connector (1).

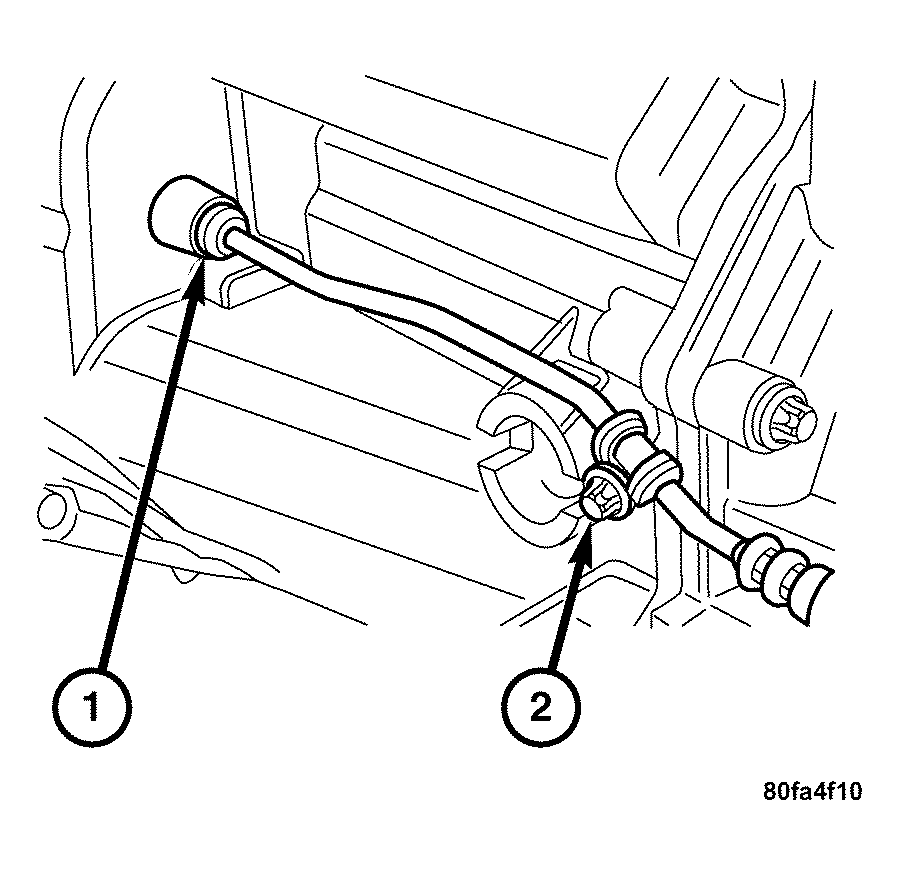

    Fig 6: Removing/Installing Pressure Line At The Clutch Slave Cylinder
    GC0032881Courtesy of DAIMLERCHRYSLER CORP.
  10. Connect the pressure line (1) to the slave cylinder. Install the retaining bolt (2) to the transmission. Tighten the retaining bolt to 10 N.m (89 in. lbs.).
  11. Install the propeller shaft. (Refer to DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT - INSTALLATION) .
  12. Fill the transmission. (Refer to TRANSMISSION/TRANSAXLE/MANUAL/FLUID - STANDARD PROCEDURE) .
  13. Lower the vehicle.
  14. Check the brake fluid level in master cylinder fluid reservoir.
  15. Bleed the clutch slave cylinder. (Refer to CLUTCH - STANDARD PROCEDURE) .
  16. Recheck the brake fluid level.
  17. Connect the negative battery cable.
  18. Start the engine and check for leaks.
  19. Check for proper clutch operation.
