Removal - SRT

Fig 1: Removing Engine Cover
GC0032344Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the engine cover. Grasp both corners of the engine cover and pull up firmly.
  2. Drain the cooling system. (Refer to COOLING/ENGINE/COOLANT - STANDARD PROCEDURE) .
    Fig 2: Removing/Installing Radiator Fan
    GC0033979Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the radiator fan. (Refer to COOLING/ENGINE/RADIATOR FAN - REMOVAL) .
    Fig 3: Identifying Air Pump Tube Assembly & Air Pump Tube Retaining Bolts
    GC0033628Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the air pump tube retaining bolts (2).
  5. Remove the air pump tube assembly from the engine (1). (Refer to EMISSIONS CONTROL/AIR INJECTION/AIR PUMP INLET TUBE - REMOVAL) .
    Fig 4: Removing/Installing Accessory Drive Belt
    GC0033987Courtesy of DAIMLERCHRYSLER CORP.
  6. Rotate the belt tensioner counterclockwise and release the tension on the accessory drive belt.
  7. Remove the accessory drive belt from the pulleys.
  8. Carefully release the wrench tension on the belt tensioner.
    Fig 5: Identifying Supercharger Idler Pulley Retaining Bolts
    GC0033985Courtesy of DAIMLERCHRYSLER CORP.
  9. Remove the supercharger idler pulley upper retaining bolt (1) and lower retaining bolt (2).
  10. Remove the supercharger idler pulley.
  11. Remove the accessory drive belt from the engine.

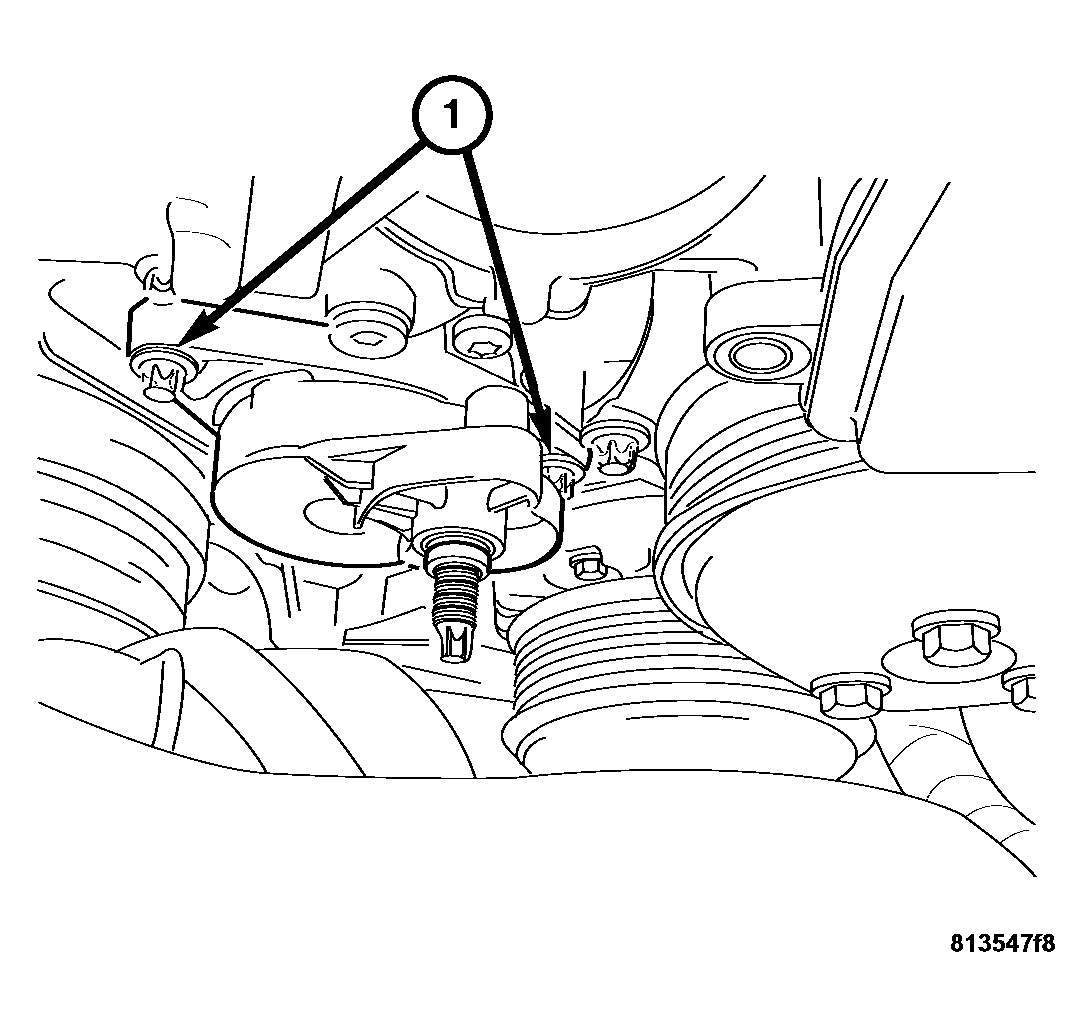

    Fig 6: Identifying Accessory Drive Belt Tensioner Bolts
    GC0034000Courtesy of DAIMLERCHRYSLER CORP.
  12. Remove the belt tensioner pulley and the belt tensioner. (Refer to COOLING/ACCESSORY DRIVE/BELT TENSIONERS - REMOVAL) .
    Fig 7: Identifying Coolant Bypass Hose & Lower Radiator Hose
    GC0033584Courtesy of DAIMLERCHRYSLER CORP.
  13. Disconnect the lower radiator hose (2).
  14. Disconnect the coolant by-pass hose (1).
  15. Remove the generator. (Refer to ELECTRICAL/CHARGING/GENERATOR - REMOVAL) .

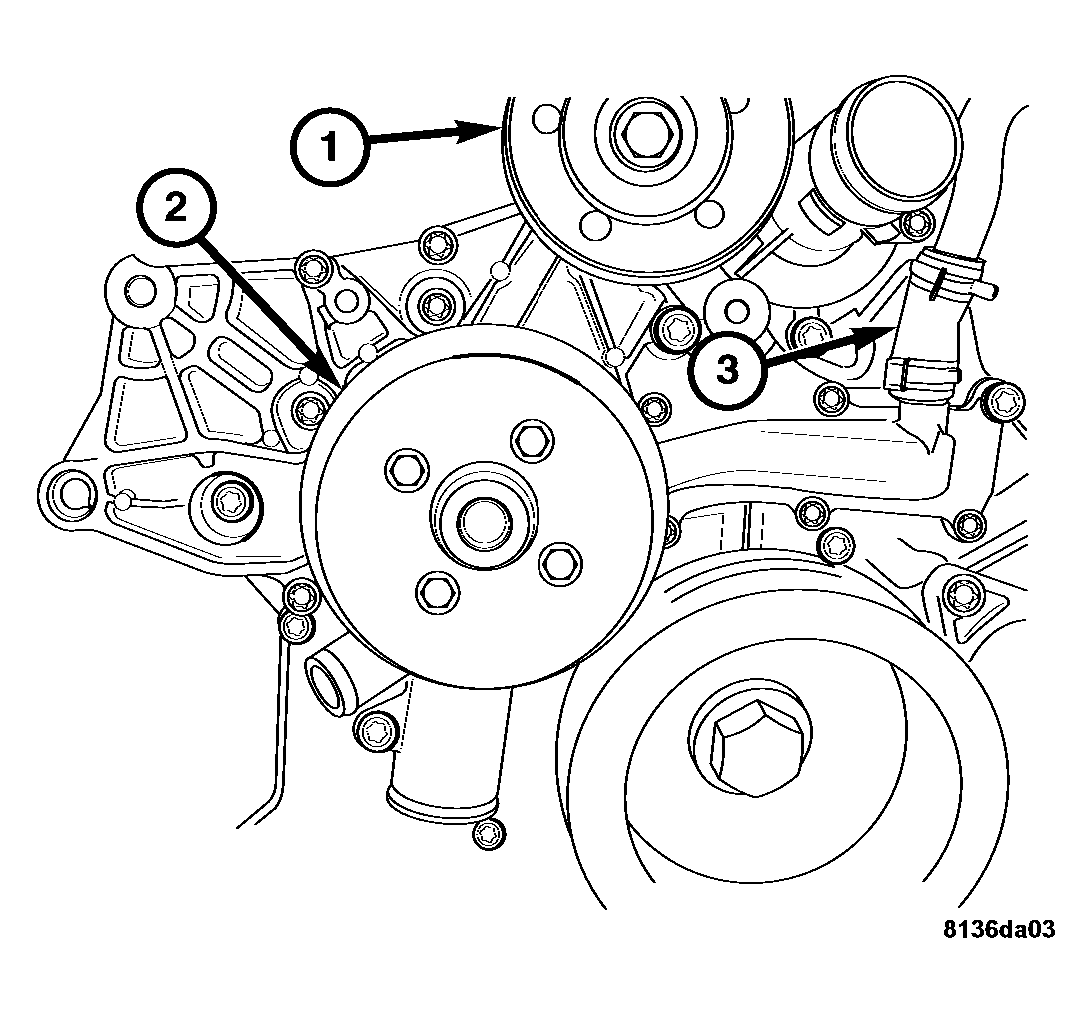

    Fig 8: Identifying Accessory Drive Belt Idler Pulley, Water Pump Pulley & Oil Cooler Hose
    GC0034001Courtesy of DAIMLERCHRYSLER CORP.
  16. Remove the water pump pulley (2).
  17. Remove the accessory drive belt idler pulley (1).
  18. Relocate the oil cooler hose (3) clamp.
  19. Remove the water pump retaining bolts.
  20. Remove the water pump from the engine. Remove the oil cooler hose (3) from the water pump to the oil cooler tube.
