Engine Coolant Thermostat: Removal

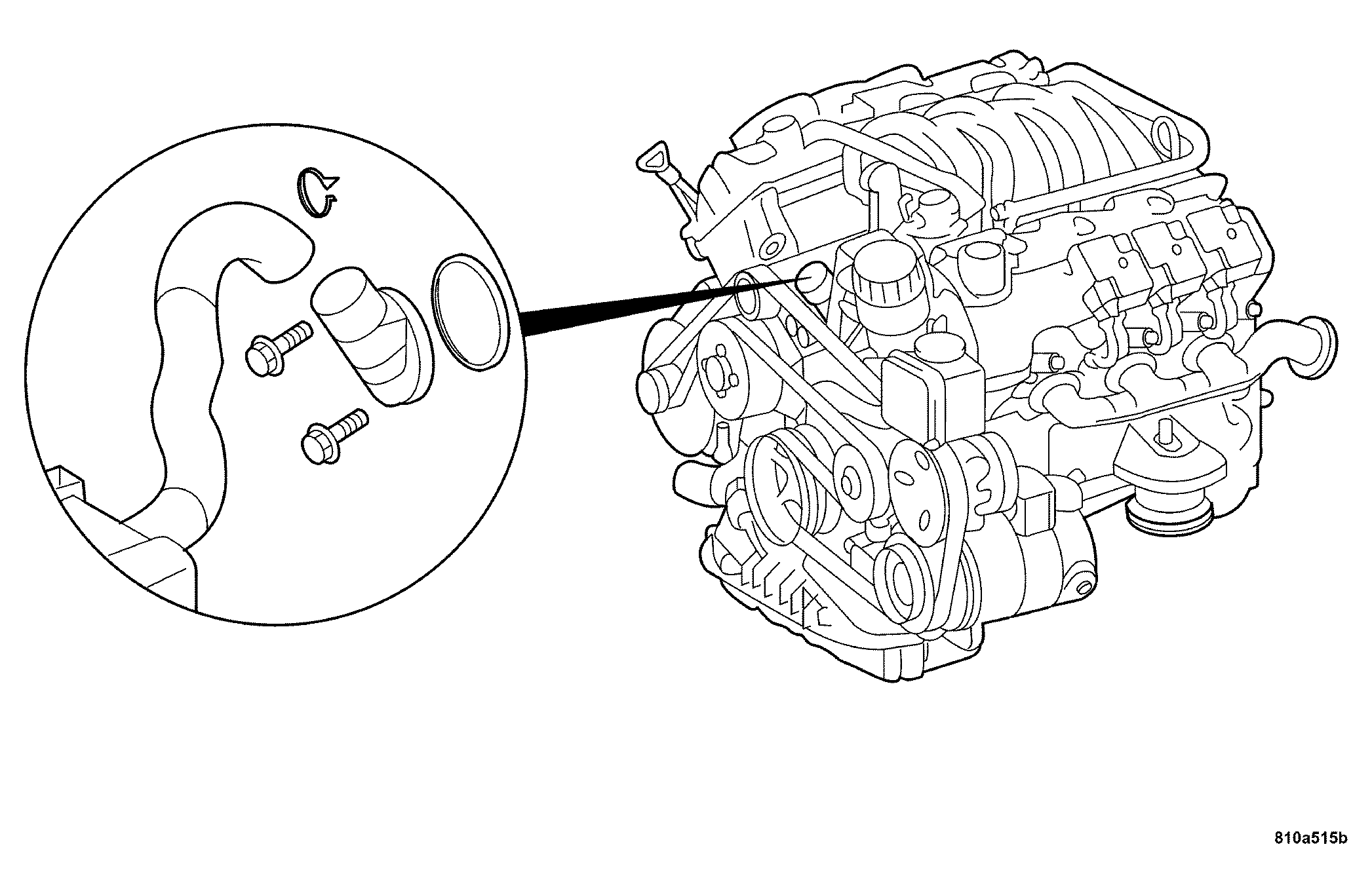

Fig 1: Removing/Installing Thermostat
GC0033974Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the air cleaner housing. (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL) or (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL) SRT .
  2. Partially drain the cooling system. (Refer to COOLING/ENGINE/COOLANT - STANDARD PROCEDURE) .
  3. Disconnect the upper radiator hose.
    NOTE: The thermostat housing and the thermostat are serviced as an assembly. The thermostat cannot be serviced separately.
  4. Remove the thermostat housing retaining bolts and remove the thermostat and housing from the engine.
