Installation - SRT

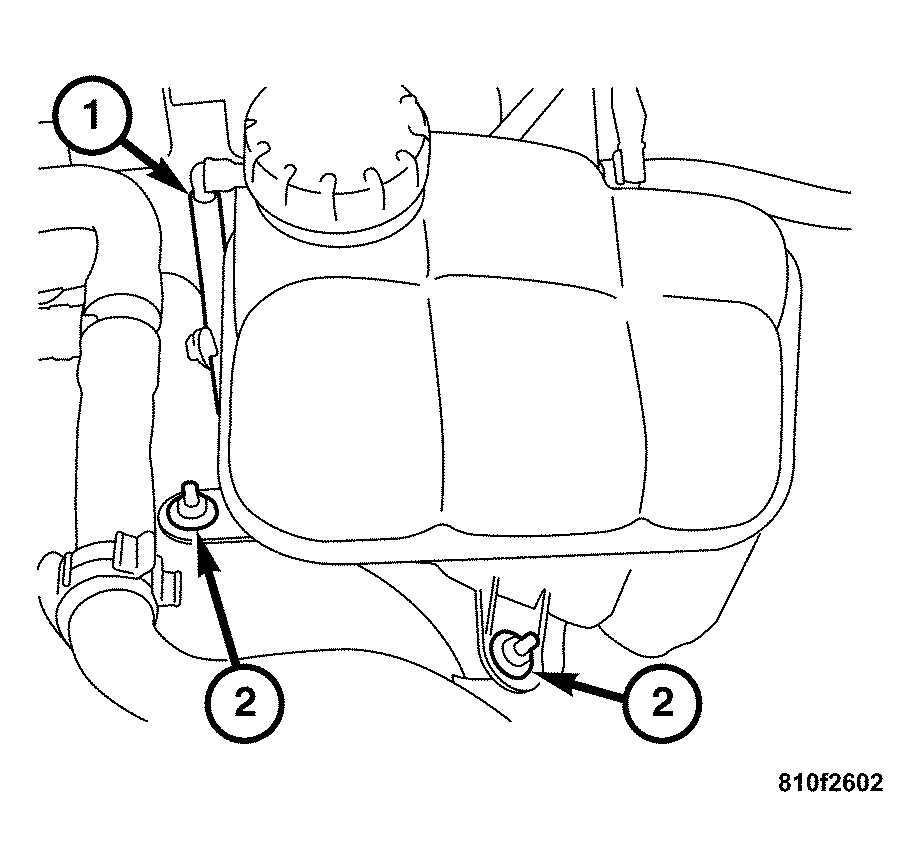

Fig 1: Identifying Coolant Overflow Hose & Retaining Nuts

Courtesy of DAIMLERCHRYSLER CORP.

Position the coolant recovery reservoir in the engine compartment.
Install the two retaining nuts (2). Tighten the nuts to 5 N.m (44 in. lbs.)
Connect the coolant overflow hose (1).

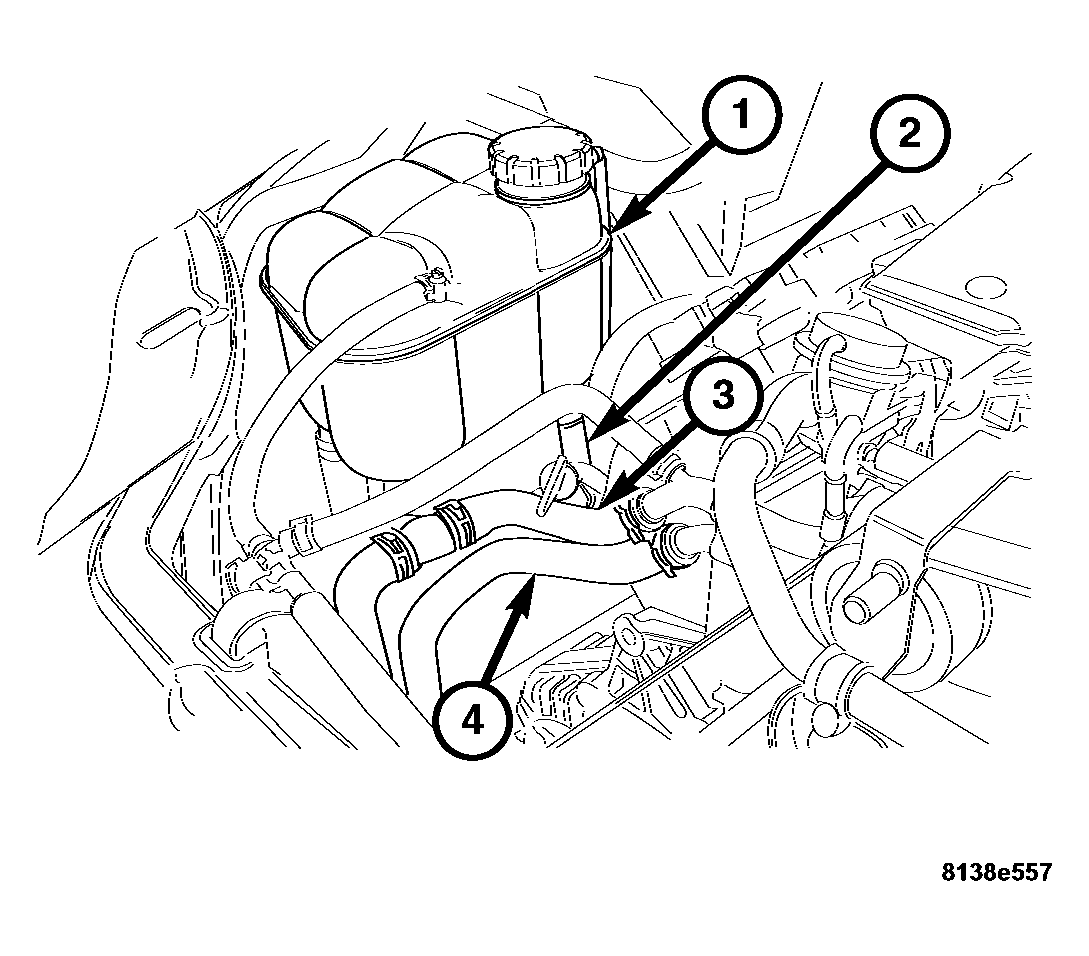

Fig 2: Removing/Installing Coolant Level Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Connect the coolant level sensor harness connector (2).
Connect the small coolant hose (4) from the radiator to the top of the coolant recovery reservoir.
Connect the large coolant hose (3) to the bottom of the coolant recovery reservoir.

Fig 3: Identifying Coolant Recovery Reservoir & Charge Air Cooler Coolant Hose
Courtesy of DAIMLERCHRYSLER CORP.
Connect the charge air cooler coolant hose (2) to the bottom of the coolant recovery reservoir (1).
Refill the cooling system. (Refer to COOLING/ENGINE/COOLANT - STANDARD PROCEDURE) .
Connect the negative battery cable.
Start the engine and check for coolant leaks.
Recheck the coolant level.
