Charge Air Cooler Circulation Pump: Removal

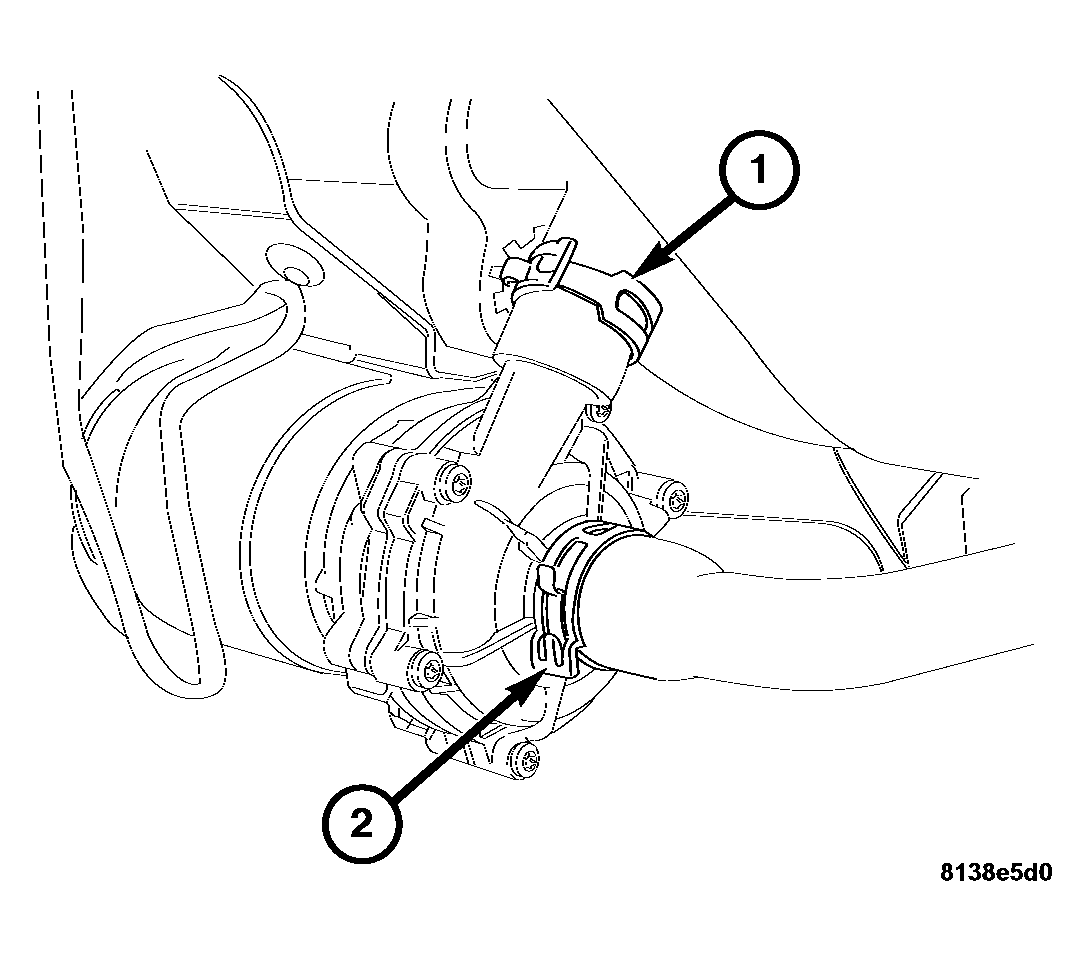

Fig 1: Identifying Charge Air Cooler Circulation Pump Inlet & Outlet Hoses

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove the right front inner fender lining in order to gain access to the charge air cooler circulation pump.
2. Remove the charge air cooler circulation pump inlet hose (2).
3. Remove the charge air cooler circulation pump outlet hose (1).

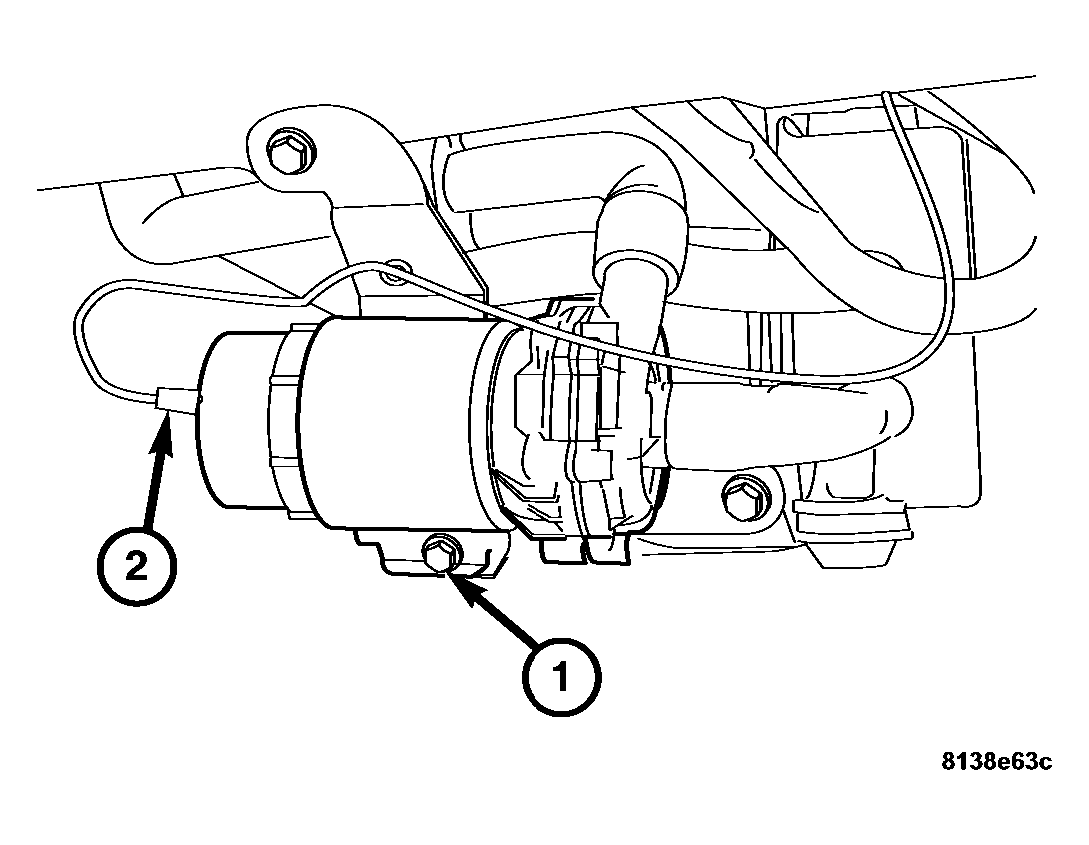

   Fig 2: Identifying Charge Air Cooler Circulation Pump Mounting Bolt & Harness Connector

   Courtesy of DAIMLERCHRYSLER CORP.
4. Disconnect the charge air cooler circulation pump harness connector (2).
5. Remove the charge air cooler circulation pump mounting bolt (1).
6. Remove the charge air cooler circulation pump from the mounting bracket.
