Drive Belt: Inspection

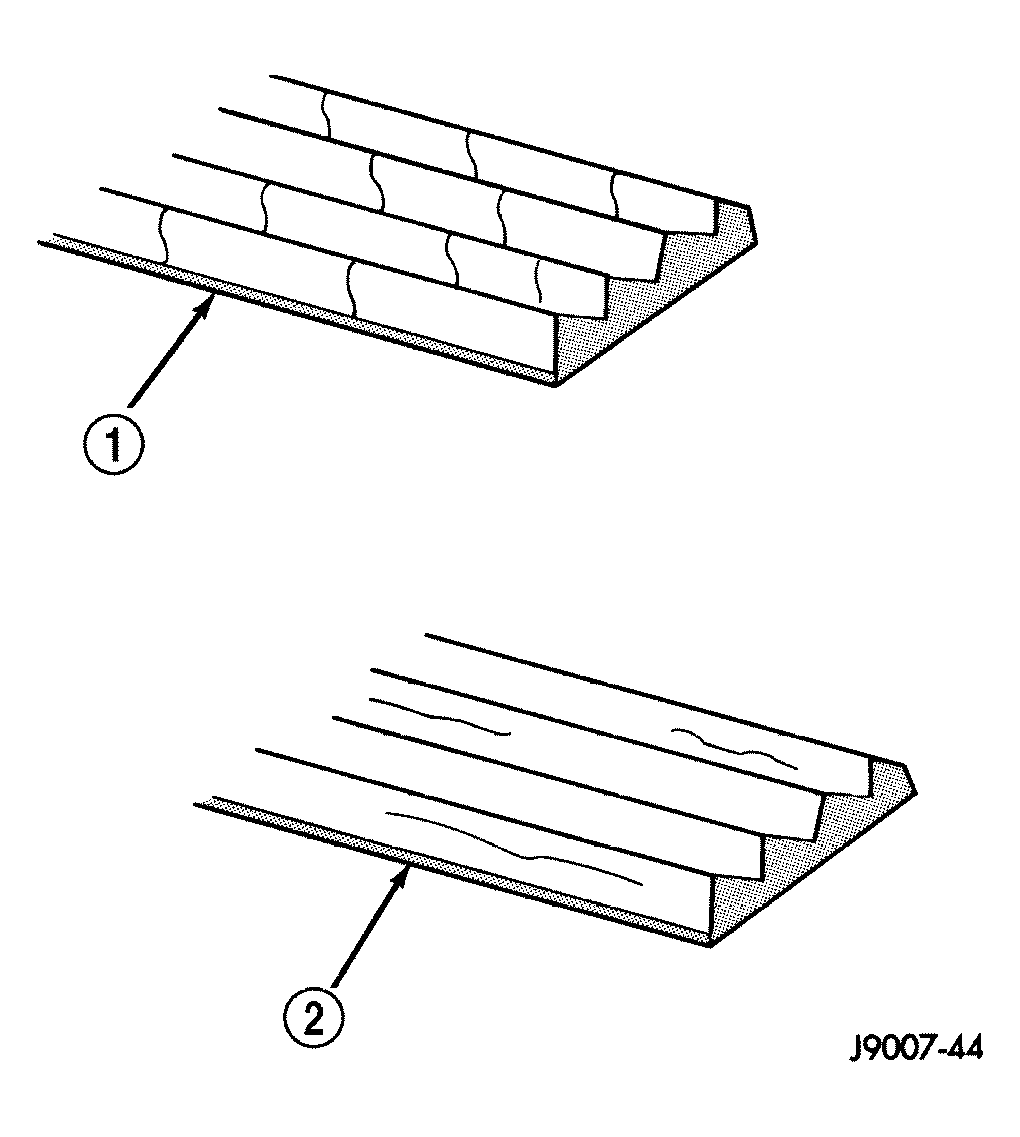

Fig 1: Inspecting Drive Belt

Courtesy of DAIMLERCHRYSLER CORP.

Belt replacement is necessary for any or all of the following conditions:

Excessive wear
Frayed cords
Severe glazing

The accessory drive belt may develop minor cracks across the ribbed side (1) due to reverse bending. These minor cracks are considered normal and acceptable. Parallel cracks (2) are not considered normal and should be cause for belt replacement.

NOTE: Do not use any type of belt dressing or restorer on the accessory drive belt.
