Pitman Arm: Removal: Notes

Fig 1: Removing Drag Link/Tie Rod At Pitman Arm

Courtesy of DAIMLERCHRYSLER CORP.

Using Special Tool 9168 Ball Joint Puller remove the drag link from the pitman arm.

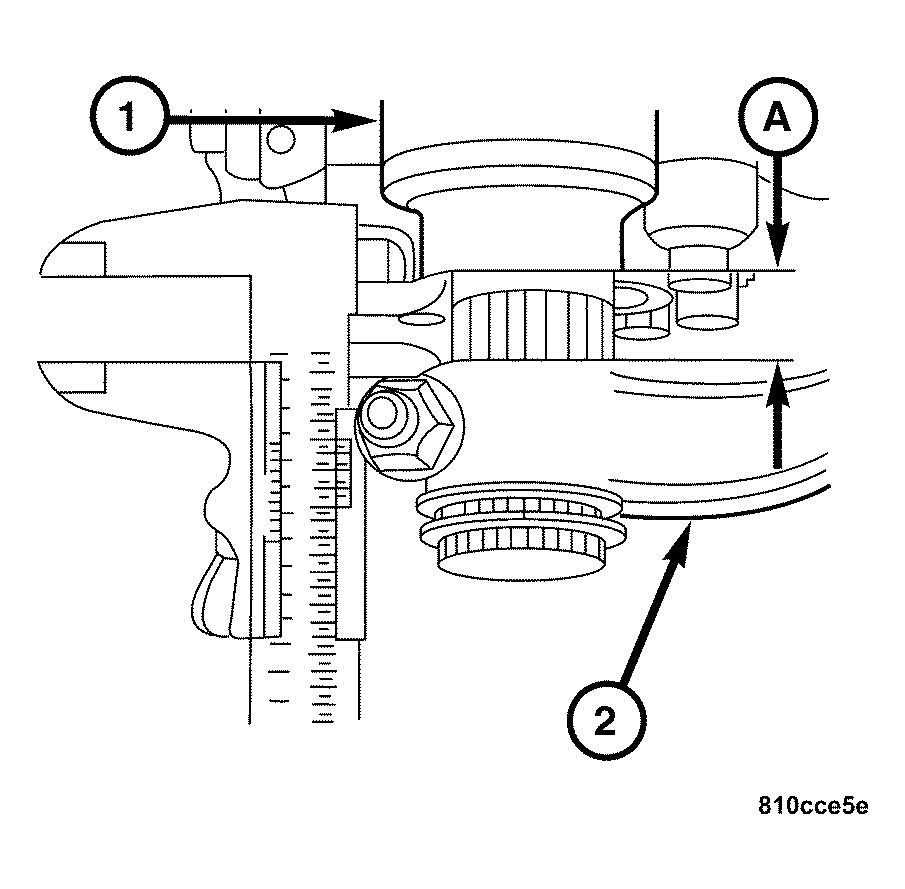

Fig 2: Measuring Distance Between Pitman Arm And Steering Gear
Courtesy of DAIMLERCHRYSLER CORP.
Measure the distance of point "A" between the pitman arm (2) and the steering gear (1) using a caliper gauge.

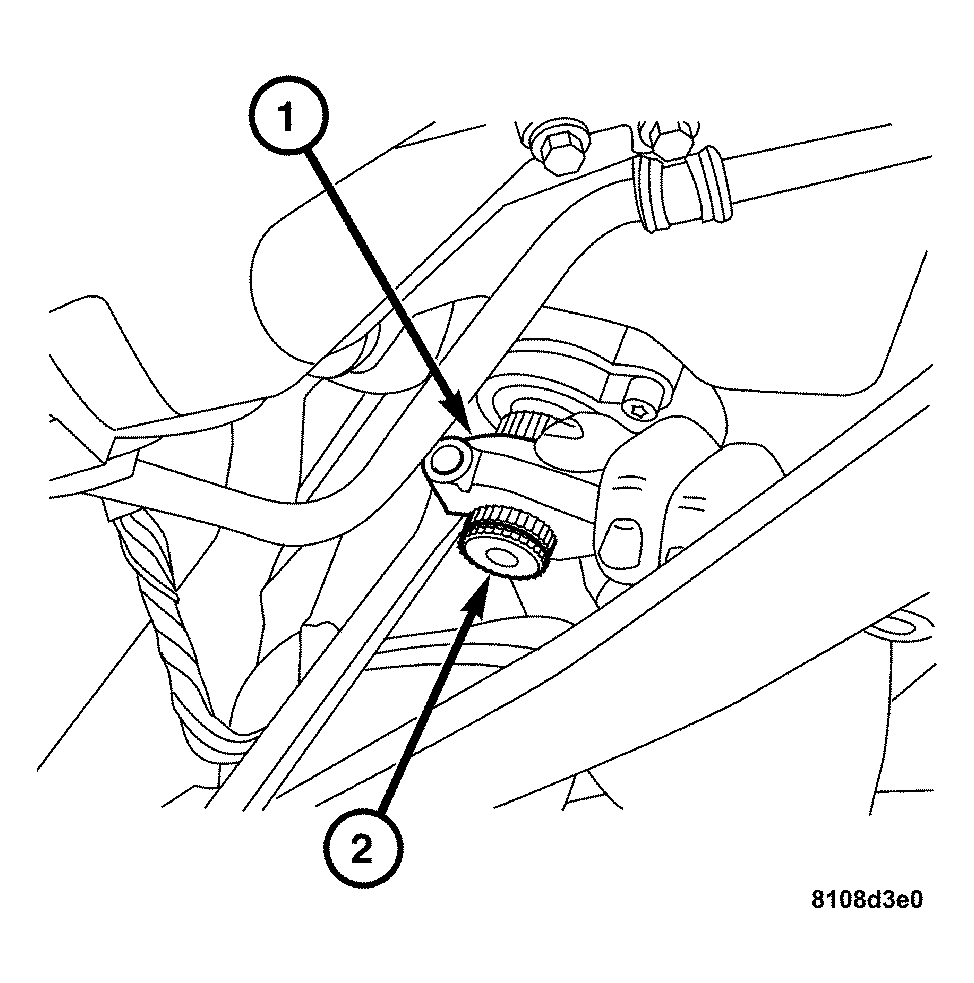

Fig 3: Removing/Installing Snap Ring At Pitman Arm (LHD)
Courtesy of DAIMLERCHRYSLER CORP.
Remove the snap ring (2) that holds the pitman arm (1) on the shaft.

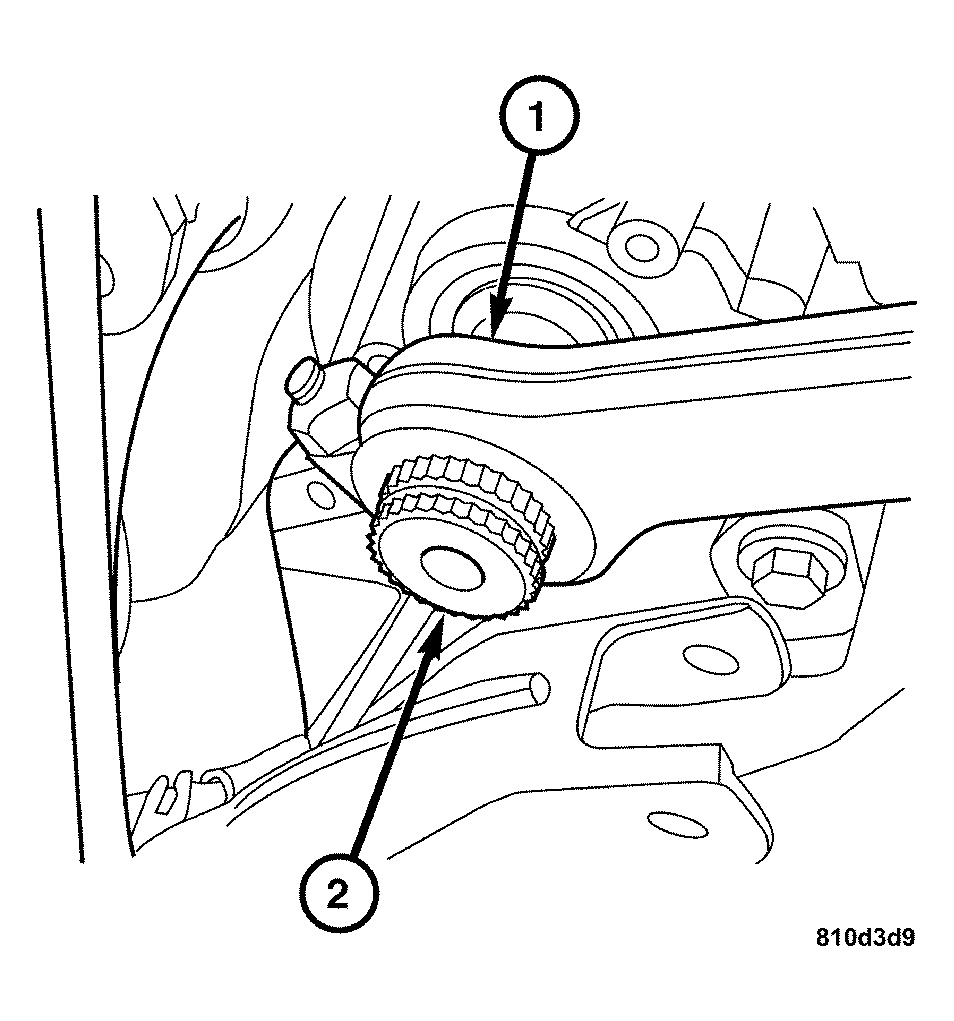

Fig 4: Removing/Installing Pitman Arm
Courtesy of DAIMLERCHRYSLER CORP.
Remove the pitman arm by loosening the pinch bolt (1). With a prying device, remove the pitman arm from the pitman arm shaft (2).
