Idler Arm: Installation: Notes

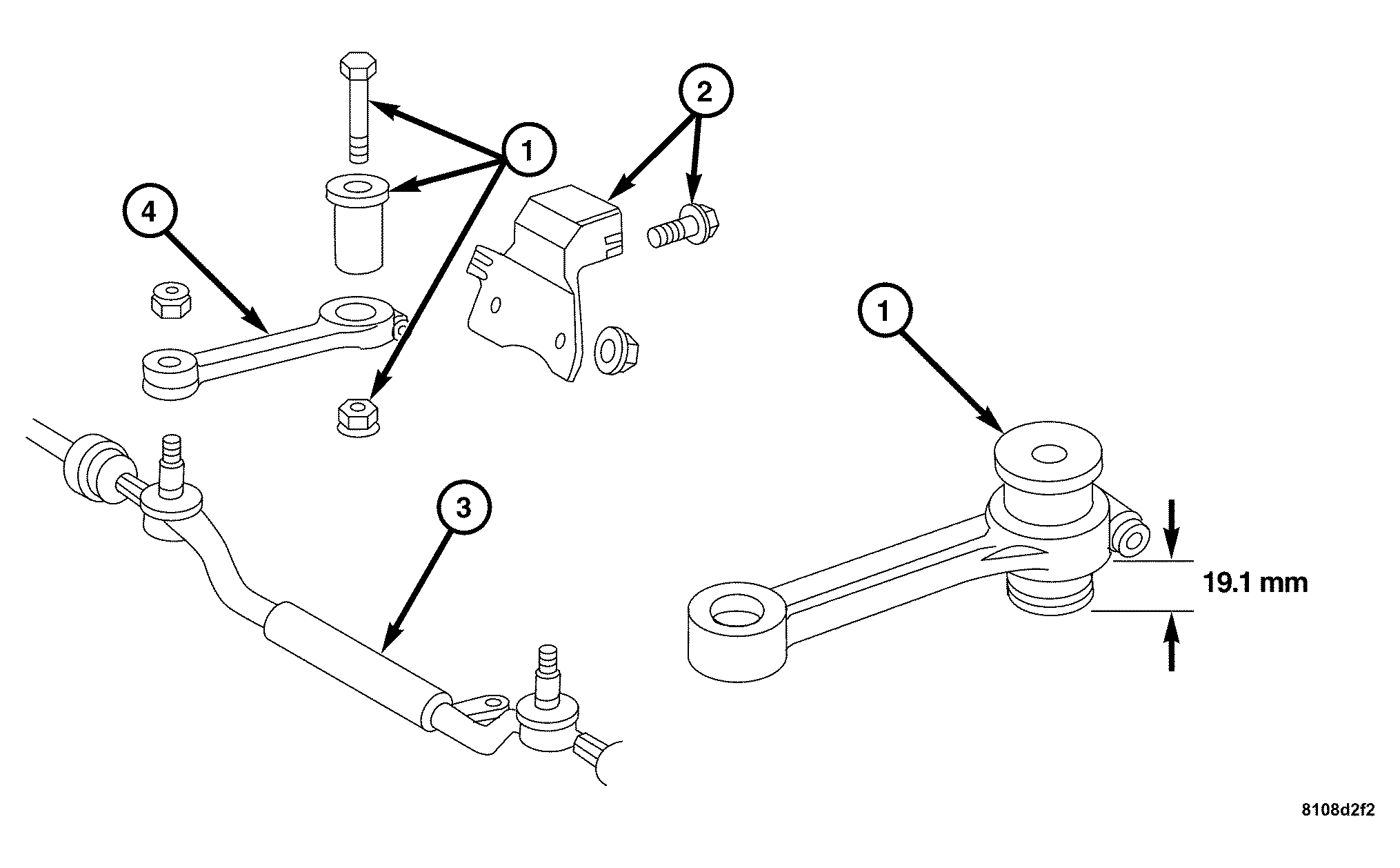

Fig 1: Removing/Installing Idler Arm - LHD
GC0032433Courtesy of DAIMLERCHRYSLER CORP.
1 - BEARING BUSHING, NUT, AND BOLT
2 - HEAT SHIELD, NUT, AND BOLT
3 - DRAG LINK
4 - IDLER ARM
  1. Install the idler arm bushing to the idler arm (4).
  2. Adjust the idler arm bushing to the reference dimension.
  3. Install the idler arm pinch bolt. Tighten to 30 N.m (22 ft. lbs.).
  4. Install the idler arm to the vehicle.
  5. Install the nut and bolt on the idler arm. Tighten to 50 N.m (37 ft. lbs.).
  6. Install the heat shield (2).
  7. Install the drag link to the idler arm. Tighten to 50 N.m (37 ft. lbs.).
