Key/Lock Cylinder: Installation

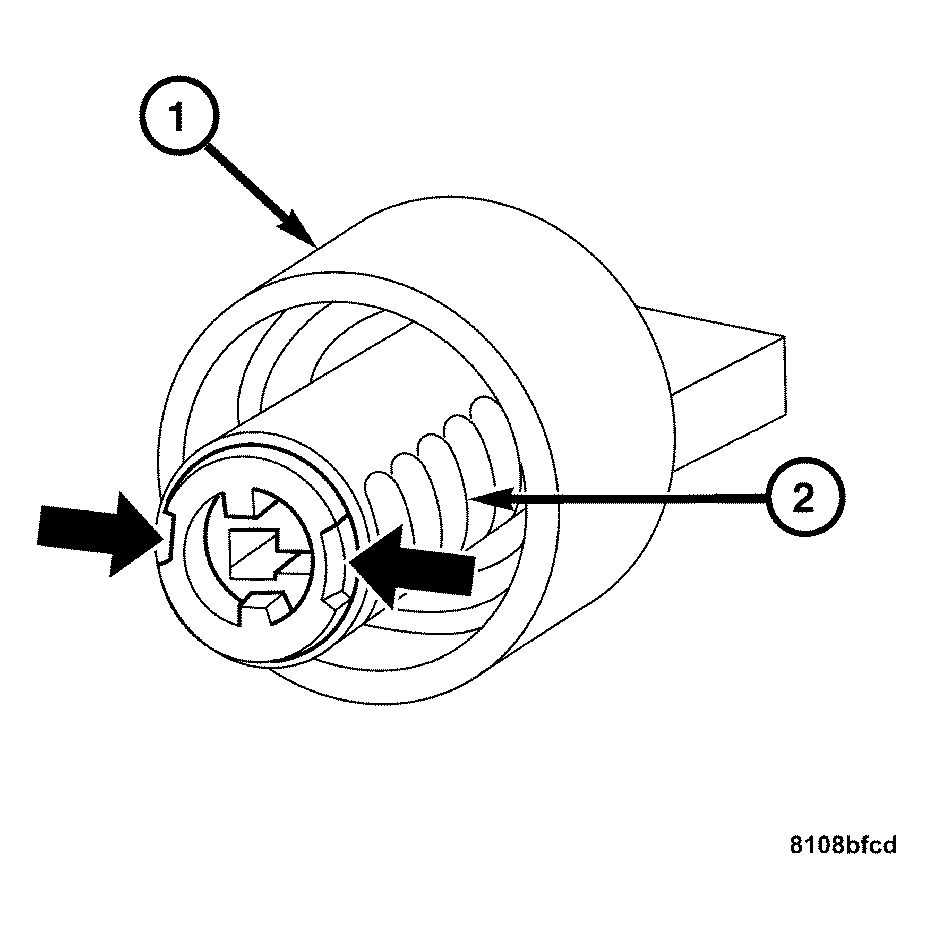

Courtesy of DAIMLERCHRYSLER CORP.
- Spray the outside of the lock cylinder (1) with lock cylinder grease and insert it into the cap.
- Push the key through the cap as far as the stop in the lock cylinder (1).
- Turn the cap clockwise approx. 90° until it can be felt or heard "lock" into position.

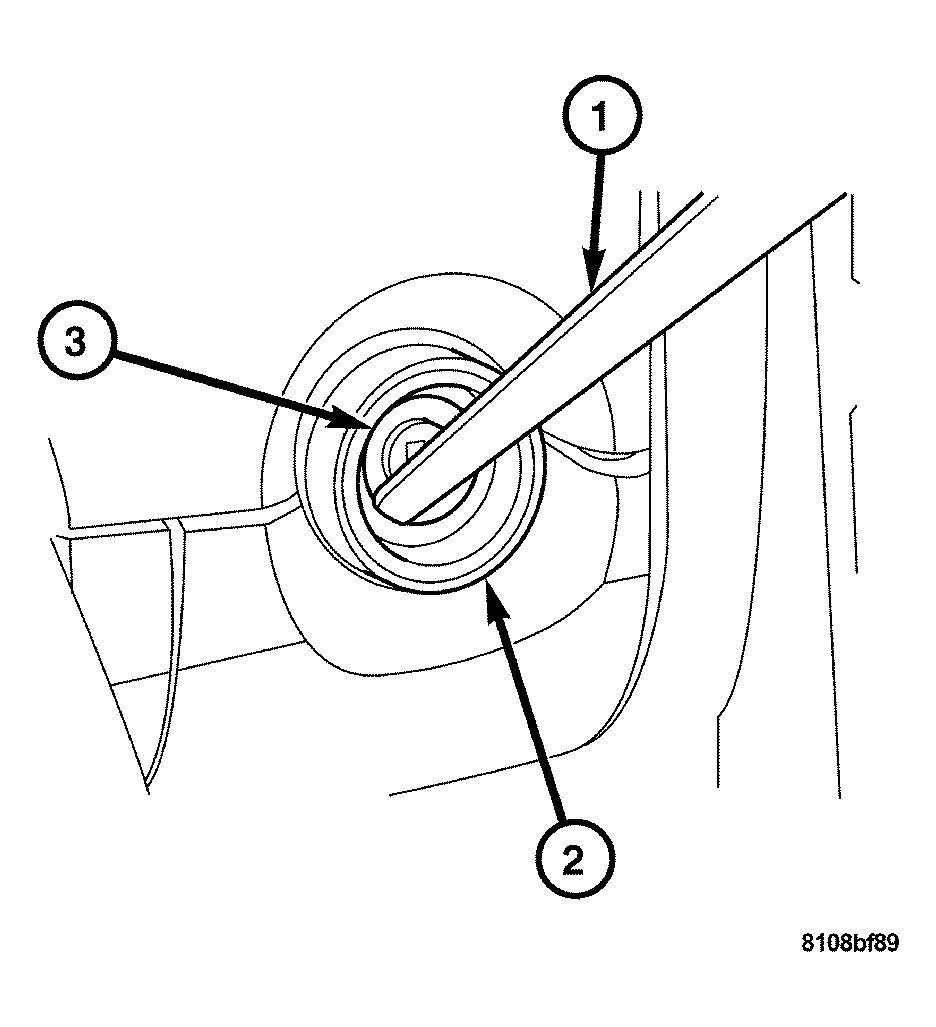

Courtesy of DAIMLERCHRYSLER CORP.
- Turn the key to position "0".
- Press in the escutcheon (2).
Courtesy of DAIMLERCHRYSLER CORP.
- Install the transponder coil (3) on the lock cylinder.
