VECI Label

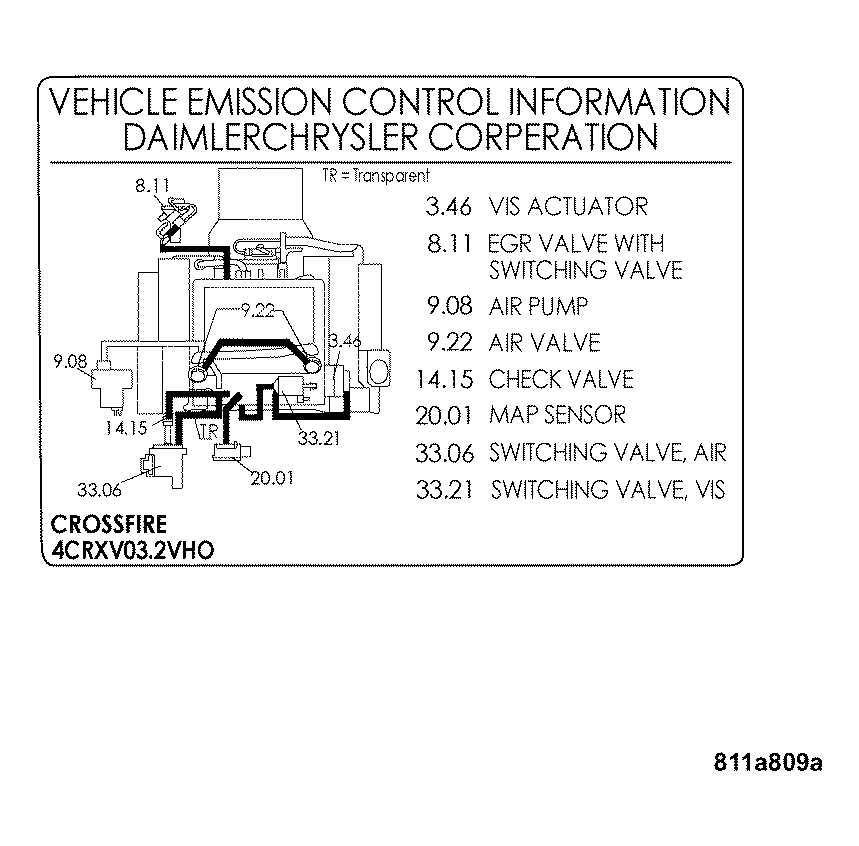

Fig 1: VECI Label

Courtesy of DAIMLERCHRYSLER CORP.

All models are equipped with a Vehicle Emission Control Information (VECI) Label. DaimlerChrysler Corporation permanently attaches the label in the engine compartment. It cannot be removed without defacing the information and destroying the label. The label contains the vehicle's emission specifications and vacuum hose routings. All hoses must be connected and routed according to the label.

The VECI label contains the following:

• Engine family and displacement
• Evaporative family
• Emission control system schematic
• Certification application
• Spark plug type and gap
