Piston And Connecting Rod: Inspection: Piston

WARNING: This page is about a different variant/trim than selected.

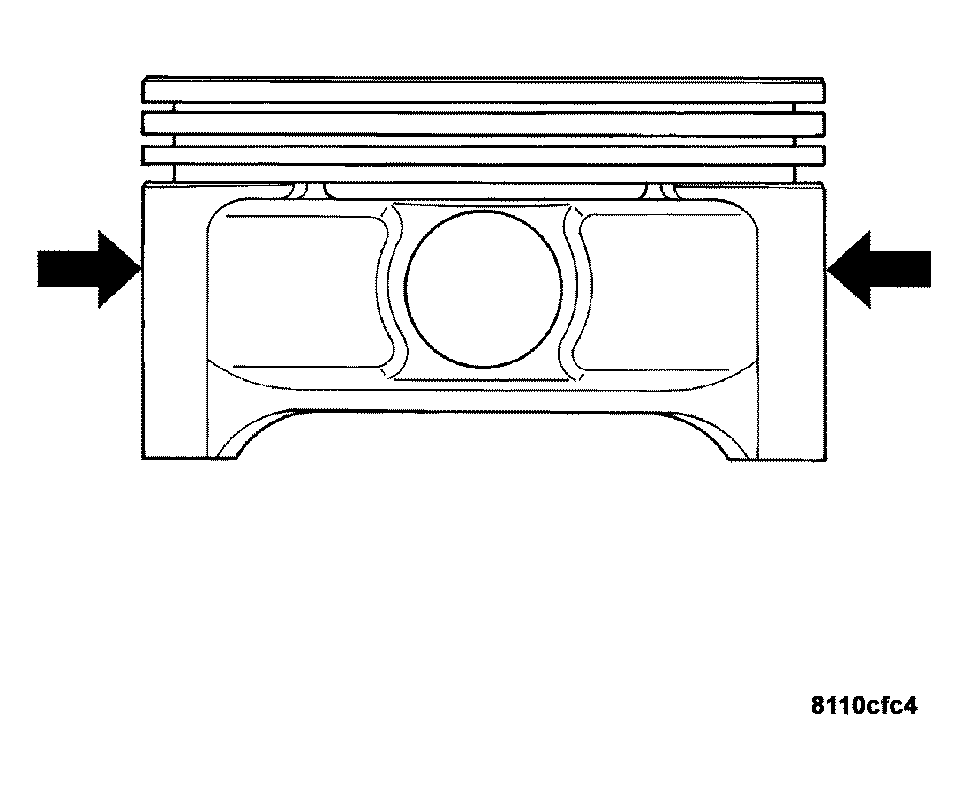

Fig 1: Identifying Piston
GC0034651Courtesy of DAIMLERCHRYSLER CORP.
  1. Inspect all piston surfaces for nicks and scuffs.
  2. Inspect piston and ring grooves for wear.
