Power Brake Booster: Installation

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the brake booster to the vehicle.

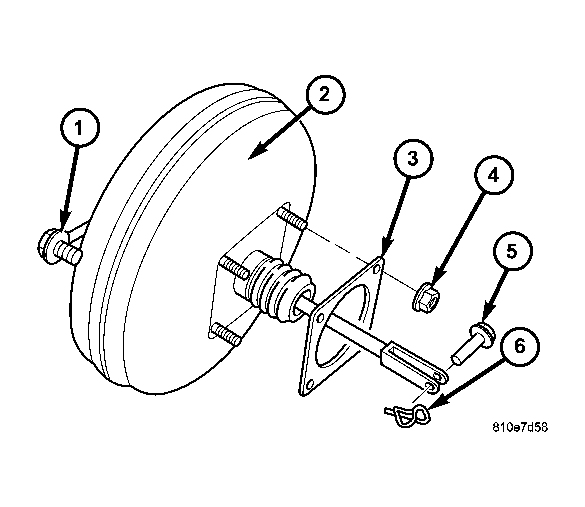

  2. Install the booster mounting nuts. See Figure. Tighten to 25 N.m (221 in.lbs.).
  3. Install the push rod pin & clip. See Figure.
  4. Install the brake booster vacuum line and check valve. See Figure.
  5. Install the master cylinder to the brake booster. Tighten to 28 N.m (248 in.lbs.).
  6. Install the brake lines to the master cylinder. Tighten to 14 N.m (124 in.lbs.).
  7. Install the brake level switch electrical connector.
  8. Bleed the base brake system (Refer to BRAKES - STANDARD PROCEDURE) .
