Section 12 (Mechanical Brake System - Base (Service Information)): Lever: Removal
WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the front brake cable from the pulley unit.

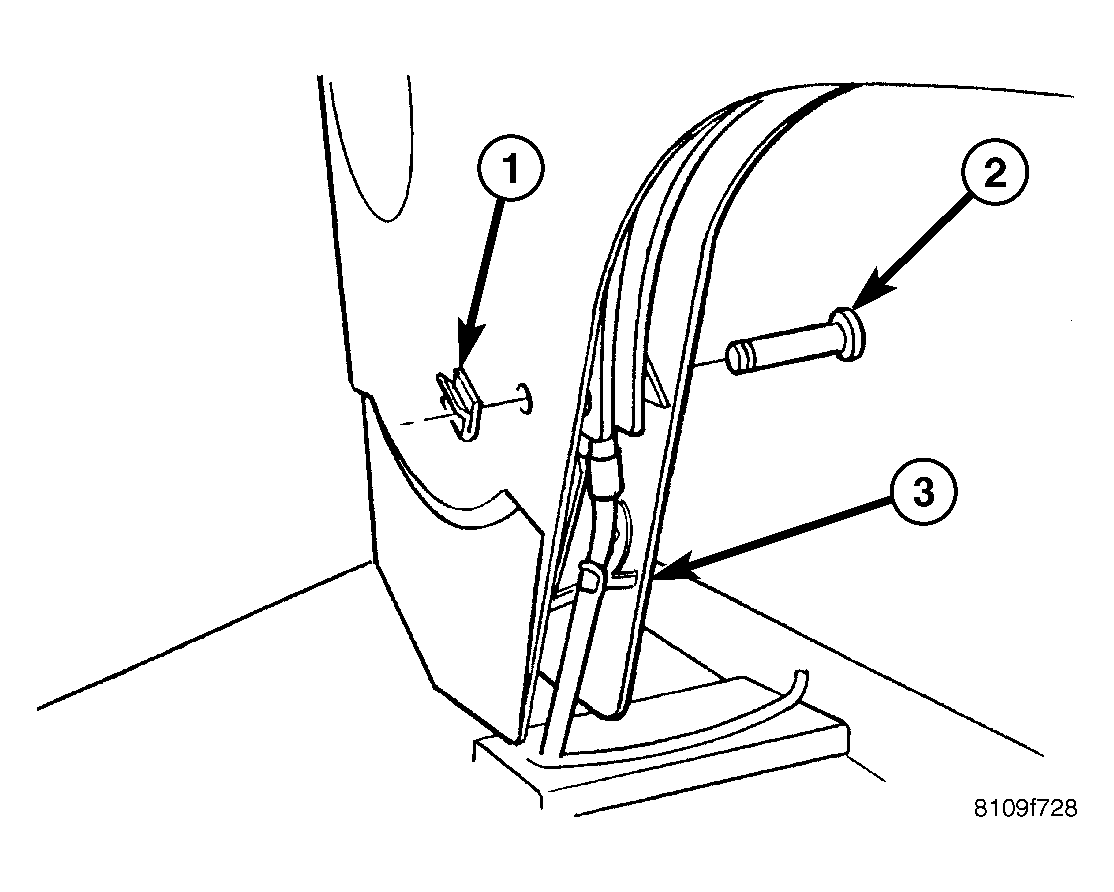

- Remove the front brake cable from the hand brake lever. See Figure.

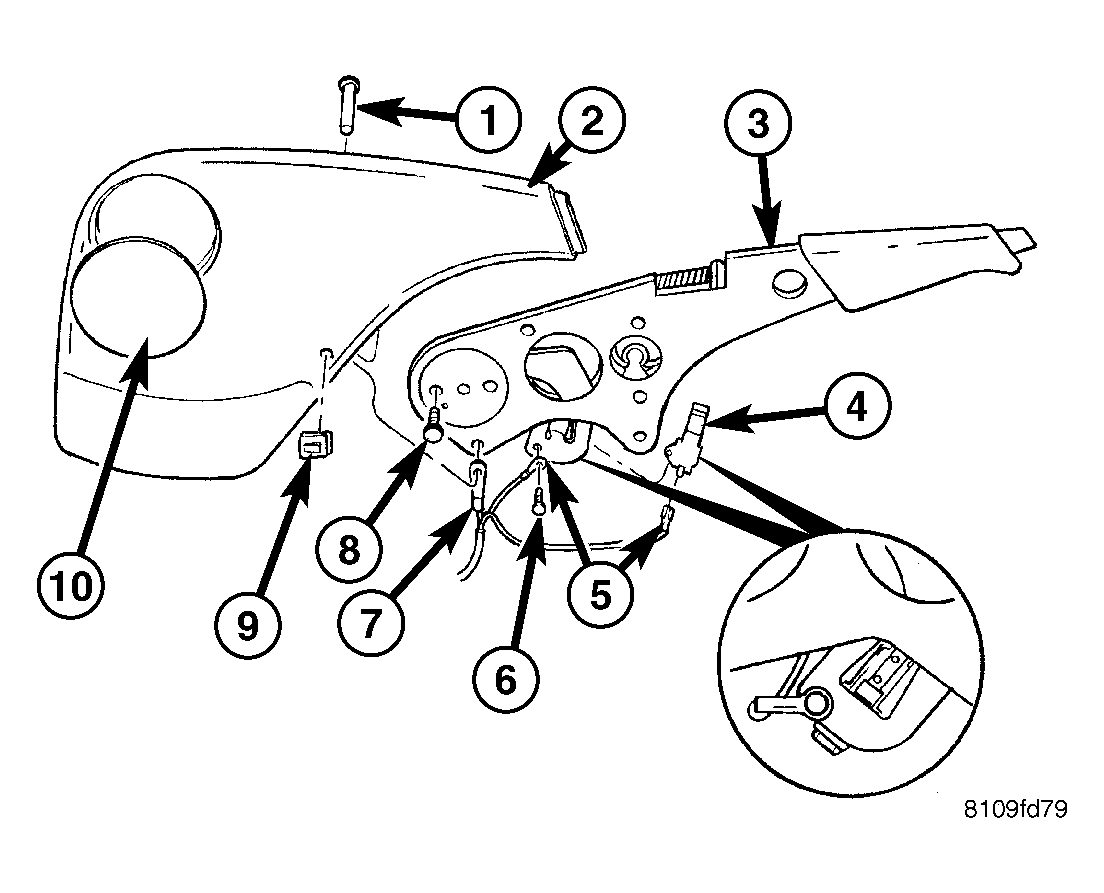

- Remove the circle cover. See Fig 1.
- Remove the bolts on the hand brake lever. See Fig 1.
- Pull the cover off the hand brake lever. See Fig 1.
- Disconnect the hand brake check switch and wiring harness from the hand brake lever. See Fig 1.
- Remove the hand brake lever. See Fig 1.
| 1 - LOCKING PIN |
| 2 - COVER |
| 3 - HAND BRAKE LEVER |
| 4 - HAND BRAKE CHECK SWITCH |
| 5 - WIRING HARNESS |
| 6 - BOLT |
| 7 - HAND BRAKE CABLE |
| 8 - BOLT |
| 9 - RETAINING CLIP |
| 10 - CIRCLE COVER |
