Standard Procedure - Brake Fluid Level
WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
Always clean the master cylinder reservoir and caps before checking fluid level. If not cleaned, dirt could enter the fluid.

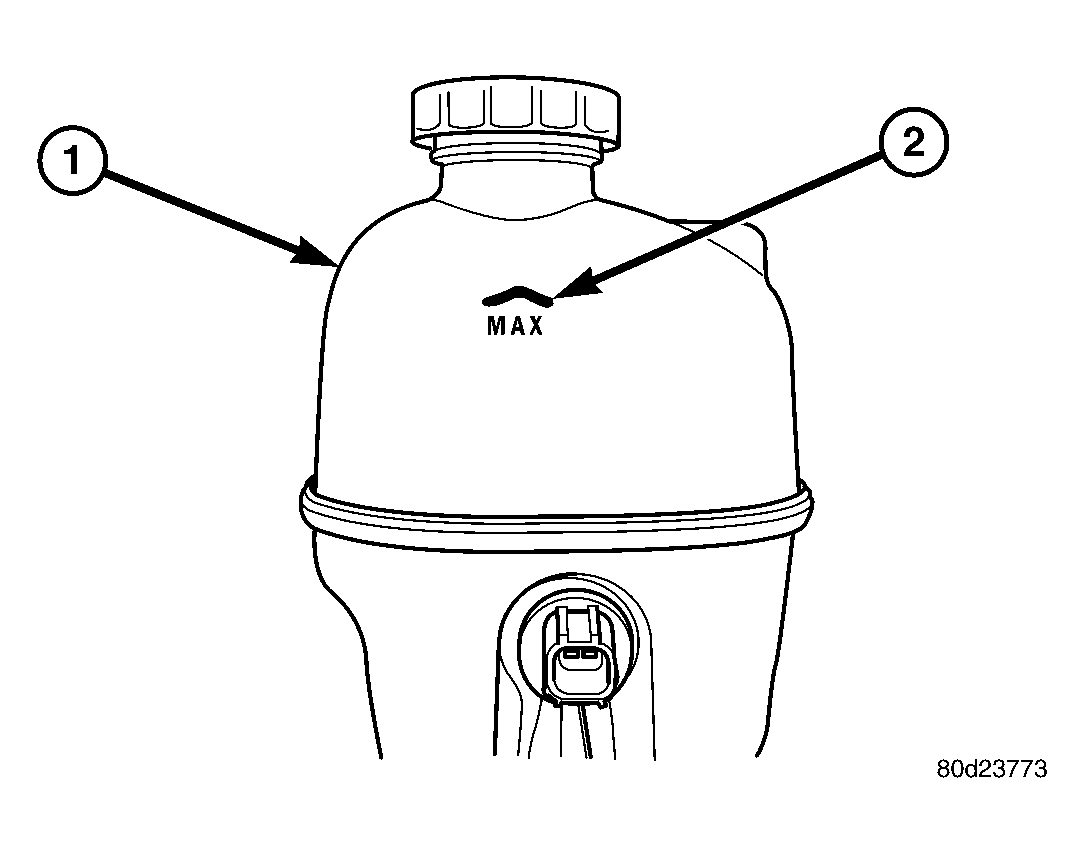

The fluid fill level is indicated on the side of the master cylinder reservoir. See Fig 1.
The correct fluid level is to the MAX indicator on the side of the reservoir. If necessary, add fluid to the proper level. (Refer to LUBRICATION & MAINTENANCE/FLUID TYPES - DESCRIPTION) .
| 1 - FLUID RESERVOIR |
| 2 - MAX LEVEL MARK |
