Installation - Rear
WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Route the park brake cable free of tension and the risk of chafing.

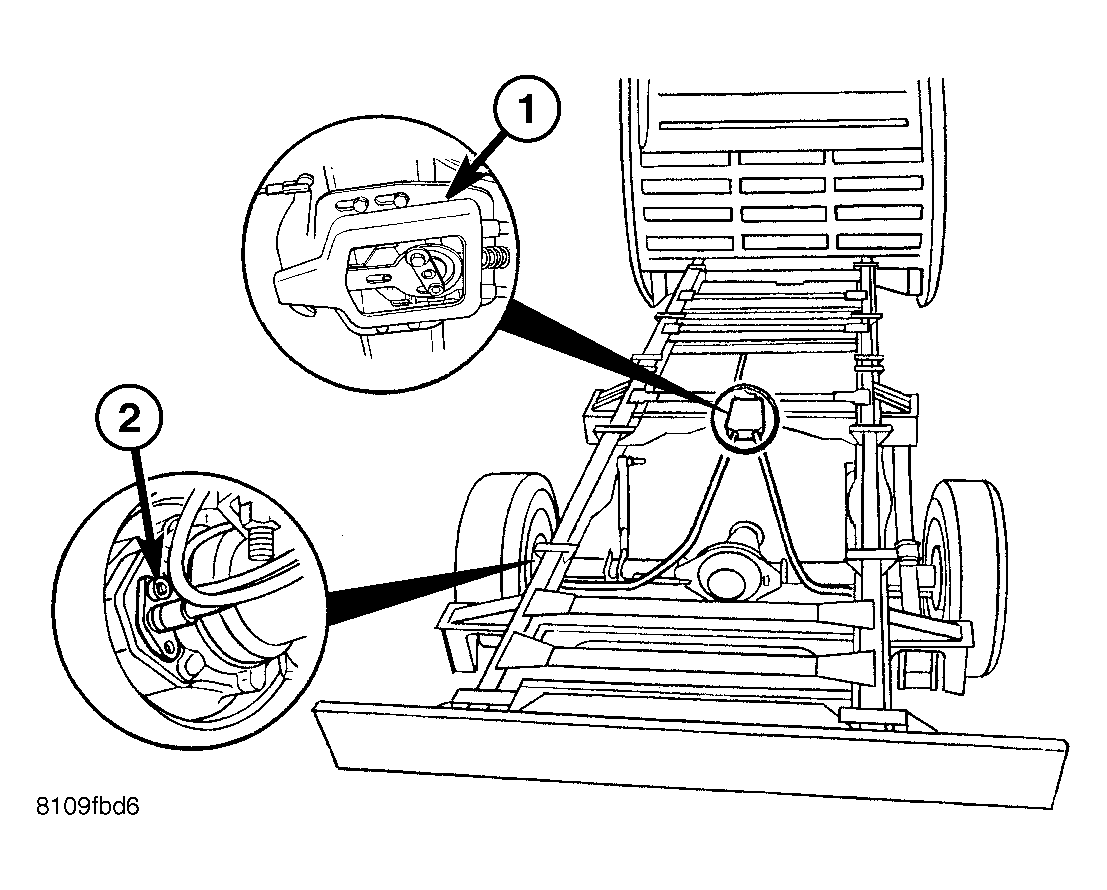

- Install the hand brake cable to the anchor plate. See Figure.
- Install the park brake cable lock. See Figure.
- Install all connections on the hardware cable. See Figure.
- Install the park brake cables to the shoe. See Figure.
- Install the park brake shoes.
- Install the rear wheels.
- Adjust the park brakes.
- Lower the vehicle.
