Alb Lever: Removal

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.

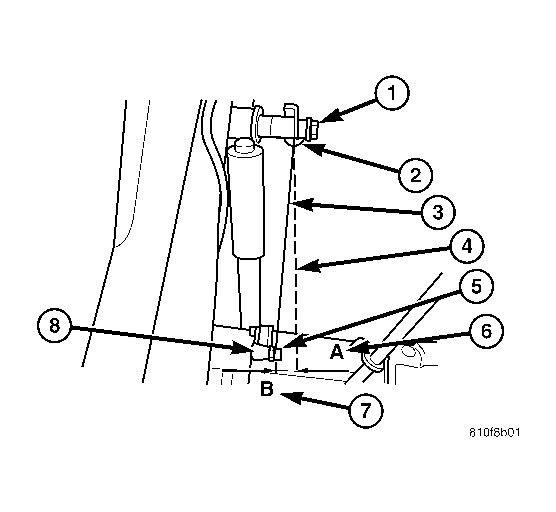

  2. Remove the retaining clip for the ALB lever. See Figure.
  3. Remove the bolt for the lever at the axle. See Figure.
  4. Remove the lever.
