Section 11 (Tires/Wheels): Wheels: Installation

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wheel and tire assembly to the vehicle.
  2. Install the wheel lug studs (SRW) and tighten to specification See Figure.(Refer to TIRES/WHEELS - SPECIFICATIONS) . See specification table for model variations.

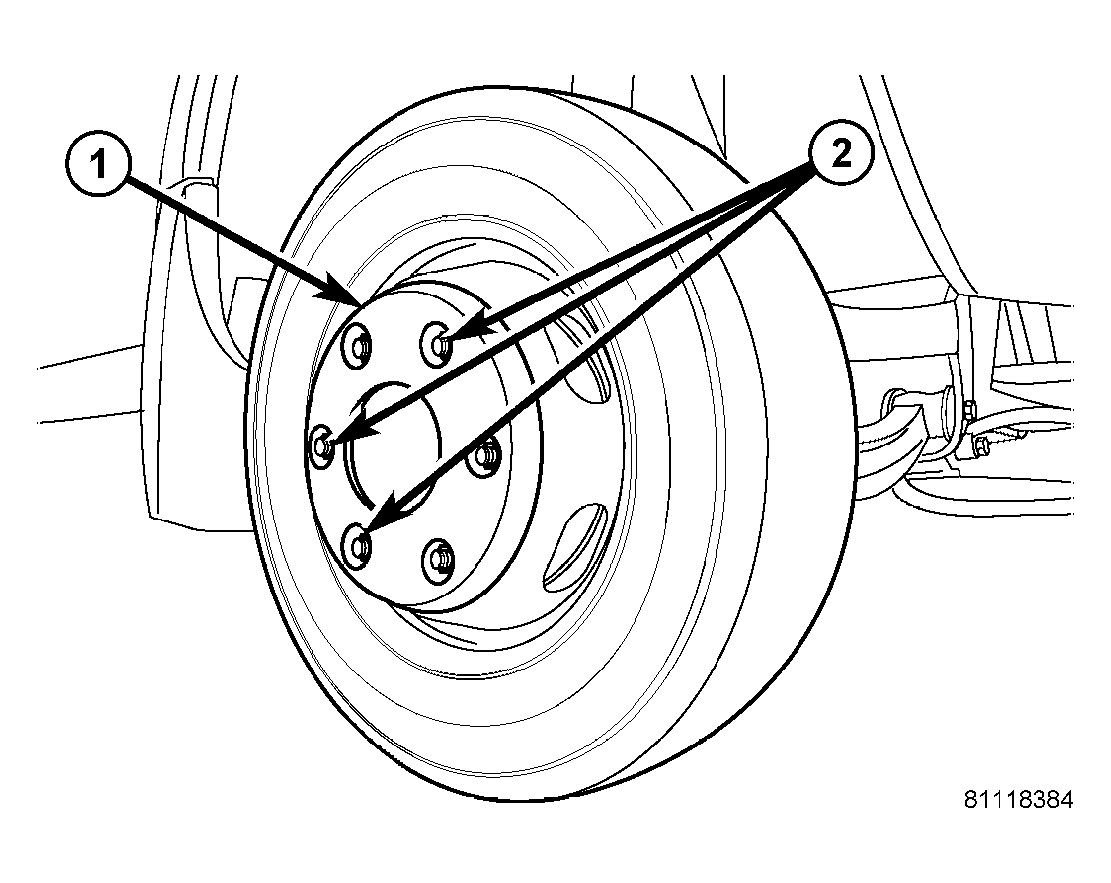

  3. Install the hub cap to the wheel then install snugly the lug nuts to hold the hub cap to the wheel (DRW). See Figure.
  4. Install the wheel lug nuts (DRW) and tighten to specification (Refer to TIRES/WHEELS - SPECIFICATIONS) . See specification table for model variations.
  5. Lower the vehicle.
