EVAP Purge Solenoid: Installation

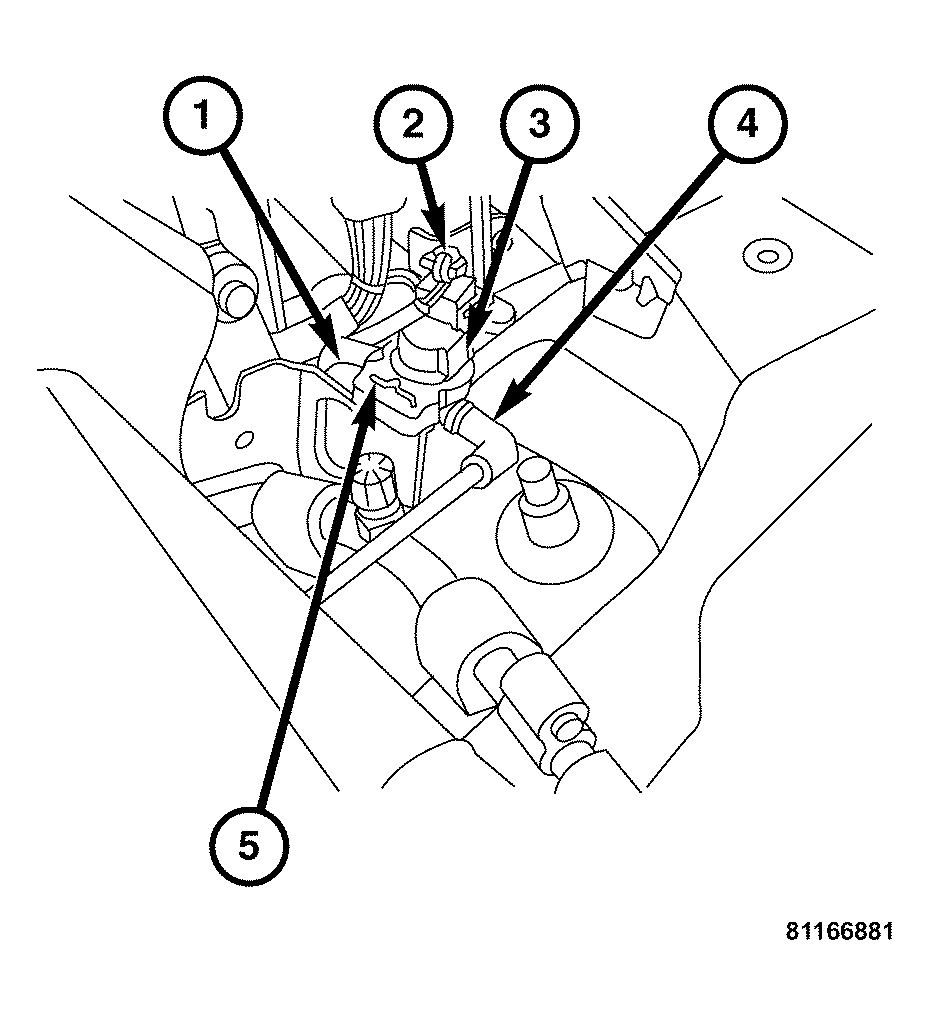

Fig 1: Locating Vapor Hoses, Solenoids & Bracket (3.2L)
GC0033605Courtesy of DAIMLERCHRYSLER CORP.
  1. Install solenoid (3) on bracket (5).
  2. Connect vapor hoses (1 and 4) to solenoid (3).
  3. Connect connector (2) to solenoid (3).

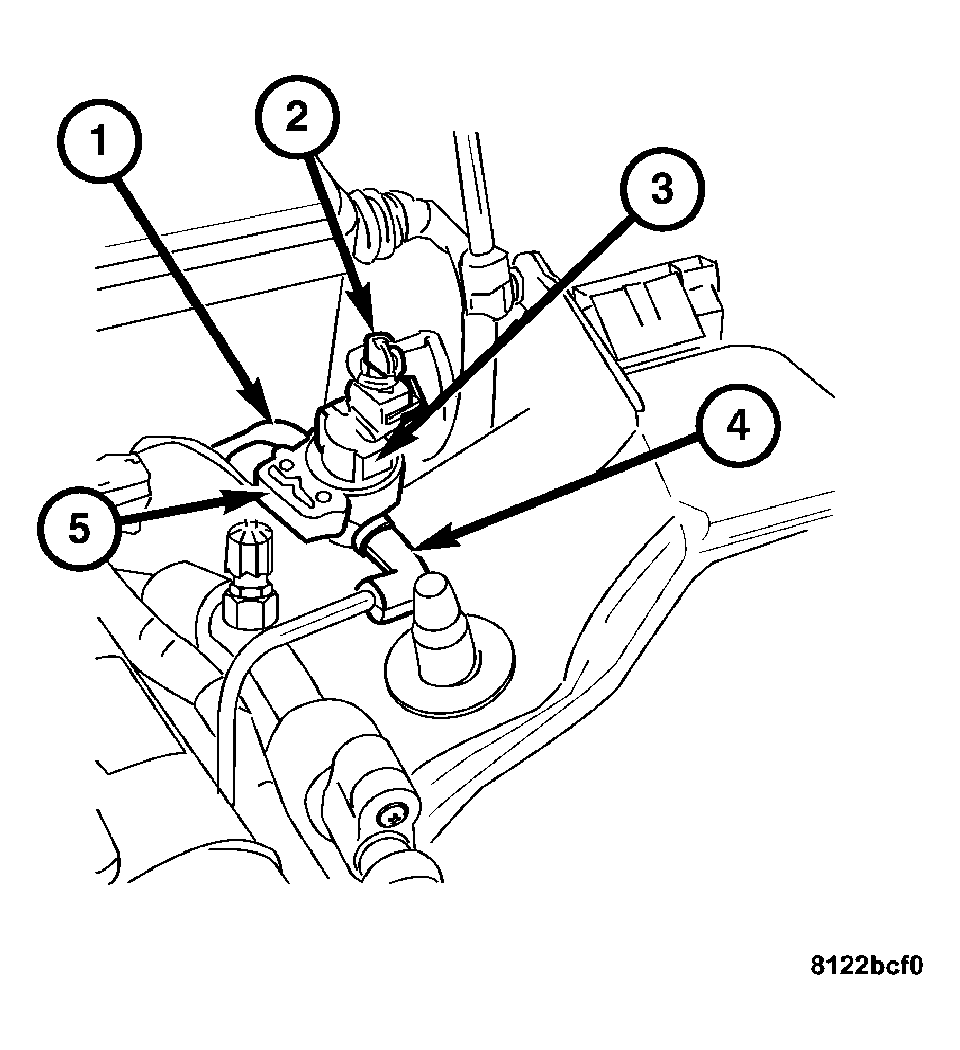

    4. Fig 2: Locating Vapor Hoses, Solenoids & Bracket (3.2L SRT)
    GC0033606Courtesy of DAIMLERCHRYSLER CORP.
  4. Install solenoid (3) on bracket (5).
  5. Connect vapor hoses (1 and 4) to solenoid (3).
  6. Connect connector (2) to solenoid (3).
